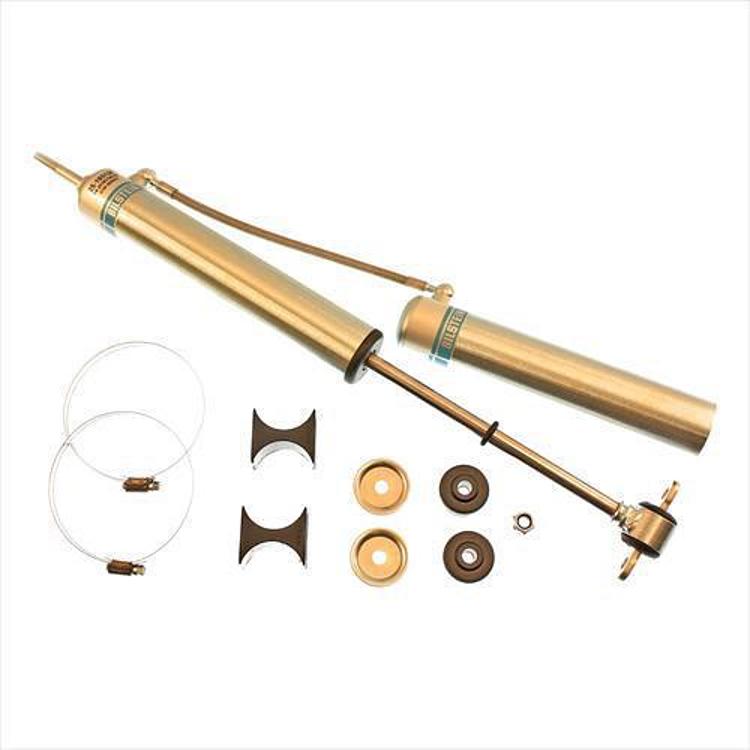

Bilstein 5160 Series Reservoir Shock Absorber – 25-193138

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 25-193138 5160 Series front stock-mount remote reservoir shock
  • 46mm digressive piston and self-adjusting deflective disc valving
  • Collapsed 13.11 in. to extended 21.87 in. length, zinc plated
  • Direct fit; confirm your vehicle before ordering

Description

Overview

This is a 5160 Series remote reservoir shock absorber for the front of a vehicle. It is a direct-fit design, and the vehicles it suits should be confirmed for your year, model and trim before ordering.

The monotube shock uses a 46mm digressive piston with self-adjusting deflective disc valving. The remote reservoir adds cooling capacity and shock travel, and the direct-fit design avoids the fabrication a high performance reservoir shock usually requires.

Key features

  • Monotube body with a 46mm digressive piston
  • Self-adjusting deflective disc valving
  • Remote reservoir for increased cooling capacity
  • Greater shock travel from the reservoir design
  • Direct-fit design intended to avoid custom fabrication
  • Zinc plated finish

Front shock setup tips

A front shock works hard on steering loads as well as bumps, so the mounts deserve the same attention as the damper. Check the upper and lower bushings for cracks or play before the new shock goes in. A worn bushing can shift the shock angle and reduce the effect of the valving, even when the shock itself is in good shape.

Remote reservoirs on front shocks need space that is often limited by the steering linkage and the fender. Set the reservoir position before tightening anything, and recheck it after the first turns of full lock to confirm the hose does not catch.

  • Check upper and lower bushings for wear
  • Confirm clearance at full steering lock
  • Recheck the reservoir after the first drive

Specifications

Brand Bilstein
Part number 25-193138
UPC 4025258668099
Shock series 5160 Series
Position Front
Piston 46mm digressive
Valving Self-adjusting deflective disc
Collapsed length 13.11 in. (332.9 mm)
Extended length 21.87 in. (555.4 mm)
Finish Zinc plated
Reservoir Remote
Charge Gas charged
Lift range 0 to 2.5 in. lift
Fitment Direct Fit

Vehicle fitment

Confirm your year, model and trim against your vehicle before ordering, since fitment depends on the application.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The listed lift range runs from 0 to 2.5 in., so confirm your suspension height falls within it before installation.

What’s included

Check the package contents against your installation before starting.

SKU: BIL25-193138 Category:

Specification

Shipping weight 7.29 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

What is the Bilstein 25-193138?

It is a 5160 Series front stock-mount remote reservoir shock with a 46mm digressive piston and a zinc plated finish. It is a direct-fit design with a gas charged body.

Which vehicles fit the Bilstein 25-193138?

Confirm your year, model and trim before ordering, since fitment depends on the application. Your suspension lift should fall within the 0 to 2.5 in. range.

How long is the shock when collapsed and extended?

The collapsed length is 13.11 inches (332.9 mm) and the extended length is 21.87 inches (555.4 mm). Measure your current front shock against those figures before installing the new unit.

What does a remote reservoir do for a front shock?

It moves the oil reserve away from the damper body, which helps the shock keep working under heavy use. Front shocks also share steering loads, so check the upper and lower mounts for wear at the same time.
