Overview

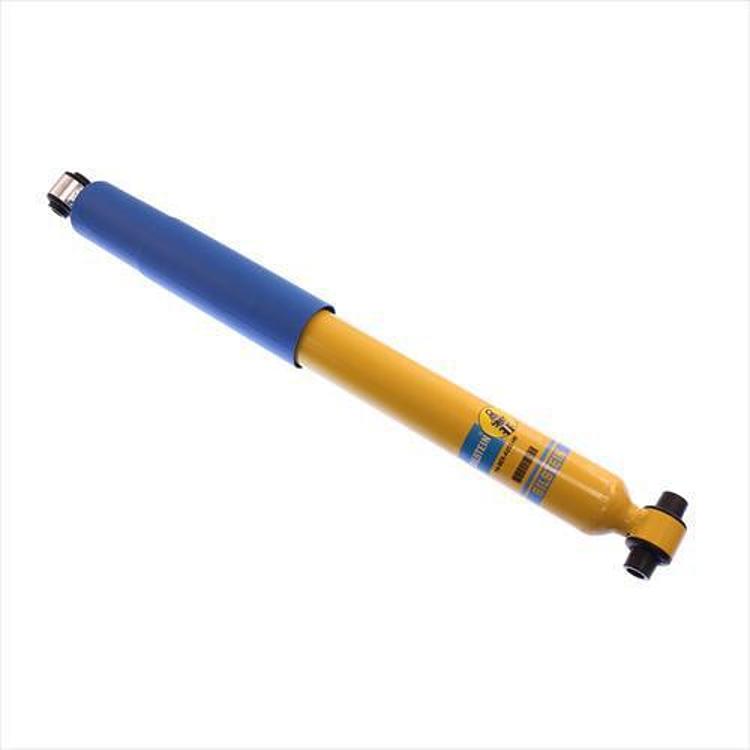

The Bilstein 4600 Series rear shock absorber, part number 24-103350, is a gas charged monotube unit with a 2 inch body diameter, a yellow finish and boots included. It is sold as a Direct Fit rear shock, but no vehicle years, makes or models are published for this part number. The construction matches the rest of Bilstein’s 4600 Series gas charged monotube line.
Heat control drives this design. The monotube body draws heat out of the damping oil and releases it through the outer shock surface, while a dividing piston gives the oil room to expand as it warms. This keeps damping steady as temperatures rise instead of letting the oil foam or lose viscosity. The tube is extruded to a tight wall-thickness profile, which supports tube strength and service life.
Key features
- Rear position shock in the Bilstein 4600 Series line.
- Gas charged monotube body that transfers heat through the shock body.
- Dividing piston that lets oil expand, limiting aeration and foaming.
- Extruded tube with a tight peak-to-valley tolerance and consistent wall thickness.
- Piston head with separately tuned compression and rebound damping.
- Boots included.
Measuring before you buy
Because a rear shock’s mounting points decide whether it bolts in cleanly, measure the shock you are removing before you shop. Record the fully collapsed and fully extended lengths, the eye-to-eye spacing at each end, and the stud or pin diameter. Take the same readings with the vehicle at its normal ride height, since a worn shock may sit lower than a new one would. Comparing these numbers with the new unit is the most reliable check.
Rear shocks also work with the leaf springs, coil springs or trailing arms around them, so a replacement should match the original damping feel and travel. Replacing them in pairs on the same axle keeps the rear end balanced. Inspect the bushings and mounting hardware while the old unit is off, and replace any cracked or seized parts at the same time.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-103350 |
| UPC | 651860474748 |
| Shock series | 4600 Series |
| Position | Rear |
| Shock type | Monotube, gas charged |
| Body diameter | 2 in |
| Reservoir | No |
| Lift or drop | 0 in. |
| Finish | Yellow |
| Boots included | Yes |
| Fitment type | Direct Fit |
Vehicle fitment
Fitment is Direct Fit in the rear position, with a 0 in. lift or drop. Verify your vehicle’s year, model and trim before ordering.
Measure the installed length and mounting point spacing of the shock you are removing, and compare them with the new unit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included with this rear shock. Check the rest of the package contents against your installation before starting.
