Overview

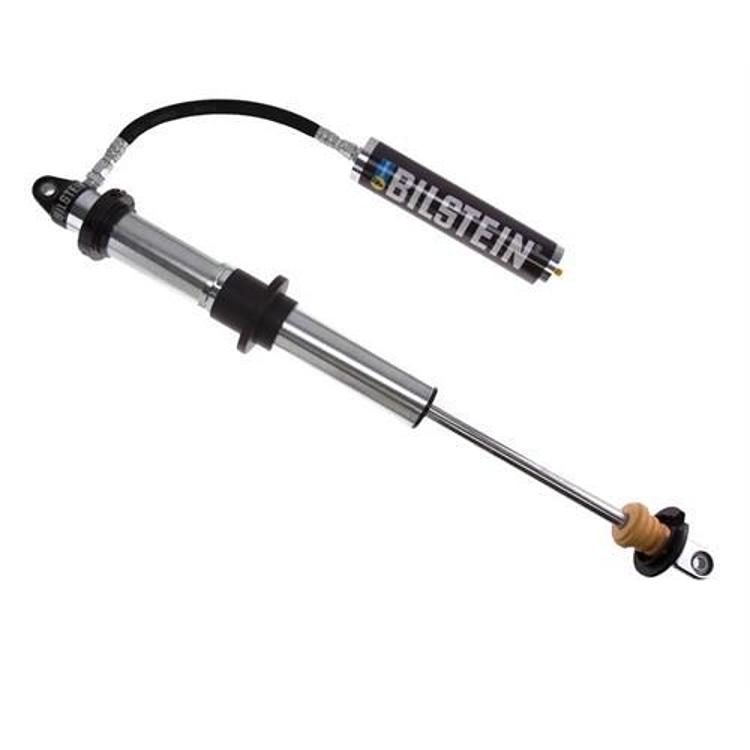

The Bilstein 8125 Series coilover with reservoir, part number 33-225630, is a 60mm threaded-body coilover shock for custom off-road suspensions. It is a universal off-road application, so it is not tied to one vehicle, and the springs are sold separately so you can match them to your build.
Bilstein designed the 8125 Series for dual-rate springs and offers it in several travel lengths. This 14 in travel version uses a remote reservoir joined to the shock by a high-temperature hose, which Bilstein says helps it hold steady performance under intense heat. The zinc-coated threaded body makes ride height and spring changes quick, and owners can rebuild the unit with replacement parts from Bilstein.
Key features
- Remote reservoir joined by a high-temperature hose
- 3-stage seal pack designed for competition use
- 22mm hard chromed, case hardened piston rod
- Piston rod resists sand blasting and rock chipping, with high tensile strength
- Zinc-coated threaded body for quick ride height adjustments
- Eye mounts at both ends for use with dual-rate springs
- Owner rebuildable, with replacement parts available from Bilstein
- Components machined to precise tolerances and made in the USA
Choosing dual-rate springs
Because the springs are sold separately, the spring choice shapes how this coilover feels on the trail. Dual-rate springs soften the initial travel for small bumps and firm up as the suspension compresses, which suits a build that sees both rock crawling and faster desert running.
Start by matching the spring length to the shock’s collapsed and extended dimensions, then fit the spring rate to the vehicle’s weight and tire size. Heavier builds usually need firmer rates, while lighter builds often feel better on softer springs. Check that the reservoir hose and the spring seat sit clear of each other at full compression.
Keep a record of the spring and preload settings so you can return to a setup that worked.
- Match spring length to the shock’s dimensions
- Consider vehicle weight and tire size for rate
- Check hose clearance at full compression
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-225630 |
| UPC | 651860754772 |
| Series | 8125 Series |
| Shock type | Hydraulic / gas charged, coil-over |
| Body design | 60mm ID threaded body, screw top (coilover) |
| Reservoir | Yes, remote |
| Standard body size | 14 in |
| Travel length | 14.00 in |
| Collapsed length | 24.5 in |
| Extended length | 38.5 in |
| Lower mount | Eye |
| Upper mount | Eye |
| Shaft diameter | 22mm |
| Finish | Zinc plated |
| Compression | 1100 |
| Rebound | 3700 |
| Springs | Sold separately |
Vehicle fitment
This is a universal off-road application, so it is not tied to a year, make or model. Fit depends on the 24.5 in collapsed length, the 38.5 in extended length and your mounting points, so measure before you buy.
Without a named vehicle, this coilover is not a bolt-on for one model. Use its dimensions to judge fit for your build. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Springs are not included, so select dual-rate springs whose length and rate suit this shock’s 24.5 in collapsed and 38.5 in extended dimensions. Route the remote reservoir hose clear of suspension travel and exhaust heat, and support the vehicle on stands before adjusting the body.
What’s included
The 8125 Series coilover with its remote reservoir and high-temperature hose.
Not included: Springs, which are sold separately.
