Overview

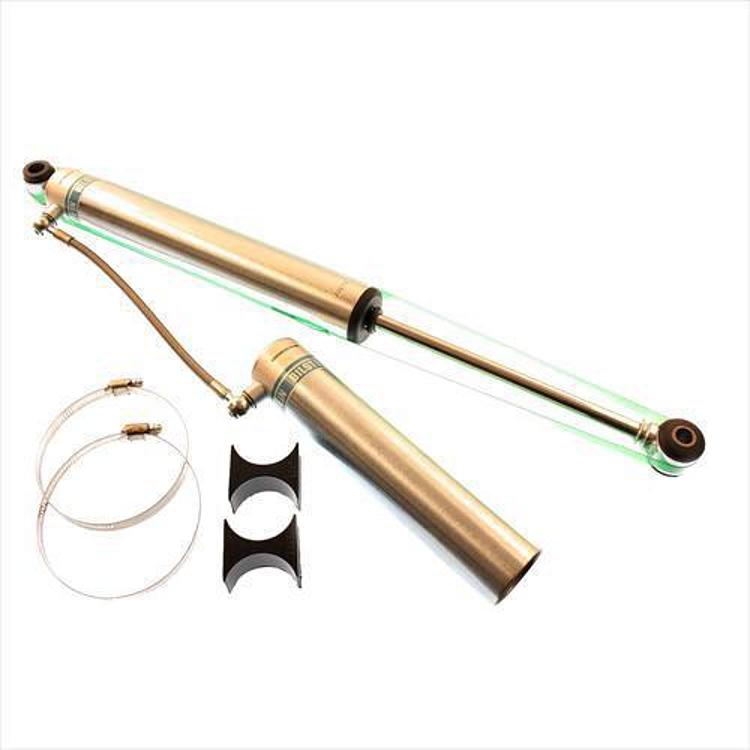

The Bilstein 5160 Series reservoir shock absorber, part number 25-188363, is a front gas charged monotube shock with a remote reservoir for the 1999–2004 Ford F-250 Super Duty and F-350 Super Duty. Bilstein positions it as a direct-fit stock mount replacement, so a reservoir shock can be run without the custom fabrication such setups usually need.
The 46mm body is smooth and non-coilover, with a 46mm digressive piston and self-adjusting deflective disc valving. The remote reservoir adds cooling capacity and shock travel. It is designed for a 4 – 6 in. lift.
Key features
- Direct-fit stock mount design for the Super Duty trucks listed below
- 46mm digressive piston with self-adjusting deflective disc valving
- Remote reservoir for increased cooling capacity and shock travel
- Zinc-plated steel body with Bilstein Triple-C Technology coating
- Gas charged construction
Choosing the right setup
A front reservoir shock on a heavy-duty truck works with the steering, axle and frame, so the choice goes beyond length. Think about how the truck is used. A daily driver with occasional towing has different needs from a truck that runs rough trails or carries heavy payloads. Match the shock’s valving and reservoir capacity to that load.
Front shocks often change in pairs with the steering components and bushings. Worn ball joints or tie rod ends can make a new shock wear unevenly, so inspect those parts when fitting. Check that the reservoir clears the steering linkage and frame at full lock before the truck returns to service.
- Consider how the truck is used before choosing
- Inspect ball joints and tie rod ends
- Check reservoir clearance at full lock
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-188363 |
| UPC | 651860662442 |
| Shock series | 5160 Series, 46mm monotube |
| Position | Front |
| Collapsed length | 15.96 in. (405.5 mm) |
| Extended length | 26.99 in. (685.5 mm) |
| Body design | 46mm ID smooth body, non-coilover |
| Reservoir | Yes |
| Finish | Zinc plated |
| Charge | Gas charged |
| Lift height | 4 – 6 in. lift |
Vehicle fitment
It fits the 1999–2004 Ford F-250 Super Duty (Harley-Davidson Edition, King Ranch, Lariat, XL, XLT) and the 1999–2004 Ford F-350 Super Duty in the same trims.
The list does not include Super Duty years after 2004, F-150 trucks, or any other make. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting, including which mount hardware is supplied.
