Bilstein 46mm Monotube Shock Absorber – 24-011044

Bilstein

$117.97In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 24-011044 front 46mm monotube gas charged shock absorber
  • Performance Series, Heavy Duty label, yellow finish
  • Manufacturer list covers 1972-1979 Ford Ranchero (500, GT, Squire)
  • Old part number BILF4-B46-1104-H0 listed

Description

Overview

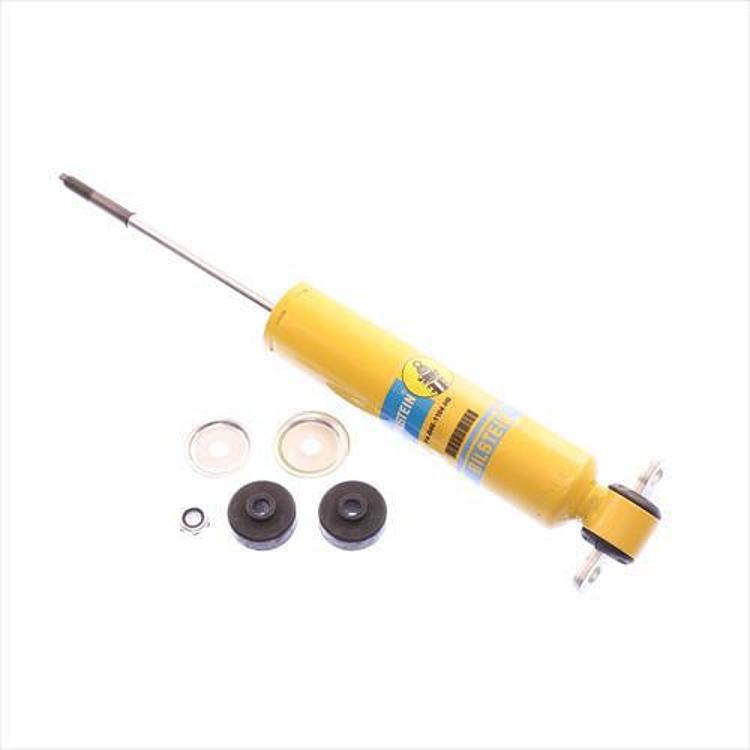

The Bilstein 24-011044 is a front 46mm monotube gas charged shock absorber in the Performance Series. It fits the 1972-1979 Ford Ranchero. It is labeled Heavy Duty and has a yellow finish.

The patented monotube design moves heat from the oil through the outer wall of the shock body, where it dissipates more efficiently. The dividing piston lets the oil expand as it warms, which reduces foaming and loss of viscosity so full damping holds as temperatures rise. The tube is extruded to tight peak-to-valley tolerances with a consistent wall thickness, supporting tube strength and shock life.

Key features

  • Front position in the Performance Series with a 46mm monotube gas charged body.
  • Heavy Duty label and yellow finish.
  • Patented monotube heat transfer and dividing piston for steadier damping when hot.
  • Extruded tube with tight peak-to-valley tolerance.
  • Piston head allows compression and rebound damping to be tuned independently.
  • The old part number is BILF4-B46-1104-H0, which helps with cross reference.

Front shock on a Ranchero

Front shocks on a light truck handle braking and steering input, so their condition shows up quickly in how the nose tracks over bumps. A monotube gas charged design keeps damping steadier as the oil warms, which helps on long hills and in heavy braking. When a front shock wears, the vehicle may dive under braking or wander on uneven pavement.

Replacing front shocks is a good moment to inspect the front suspension bushings, the upper mount and the steering linkage. A loose upper mount can rattle, and worn bushings let the shock move in ways it was not designed for. Keep the new shock on the same side as the old one, and check the boot condition after the first few drives.

Specifications

Brand Bilstein
Part number 24-011044
UPC 651860462646
Shock series Performance Series
Type Monotube, 46mm, gas charged
Position Front
Finish Yellow
Fitment type Direct fit
Lift height 0 in (lift/drop)
Old part number BILF4-B46-1104-H0

Vehicle fitment

The manufacturer fitment list includes the 1972-1979 Ford Ranchero, with 500, GT and Squire trims. The specifications describe the part as a direct fit front shock, so the Ranchero years in the list are the ones to match. Front shocks absorb suspension movement at the front axle, so the mounting points must match the listed vehicle.

Confirm fit for your vehicle’s year, model and trim before ordering. Ranchero years outside 1972-1979 and other Ford models need a separate check.

Installation notes

After replacing a front shock, check the vehicle’s front suspension for smooth operation and leaks before driving far.

What’s included

The front shock absorber is the main item. Check what mounting hardware your installation needs before starting.

SKU: BIL24-011044 Category:

Specification

Shipping weight 3.66 lbs
Package dimensions 22.50 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford Ranchero1972–1979500, GT, Squire

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Bilstein 24-011044 fit a Ford Ranchero?

Yes. The manufacturer fitment list includes the 1972-1979 Ford Ranchero, covering the 500, GT and Squire trims. Ranchero years outside that span are not in the list, so check your year before fitting.

Is this a front or rear shock?

It is a front shock absorber, as the position specification states. It is a 46mm monotube gas charged design in the Performance Series, labeled Heavy Duty and finished in yellow.

What is the old part number for this shock?

The old part number is BILF4-B46-1104-H0. The current part number is 24-011044, with UPC 651860462646. Use the current number when comparing options.

How do I know the front shock is worn?

Look for oil on the body, a bouncy front end after a dip, and uneven front tire wear. Nose dive during braking and a front end that keeps moving after a bump are also common signs of worn damping.

Can a front shock be fitted without an alignment?

Replacing a shock usually does not change alignment, because alignment is set by the steering and suspension geometry. Still, check steering play and tire wear afterward, since a worn bushing or joint can affect the front end.
