Overview

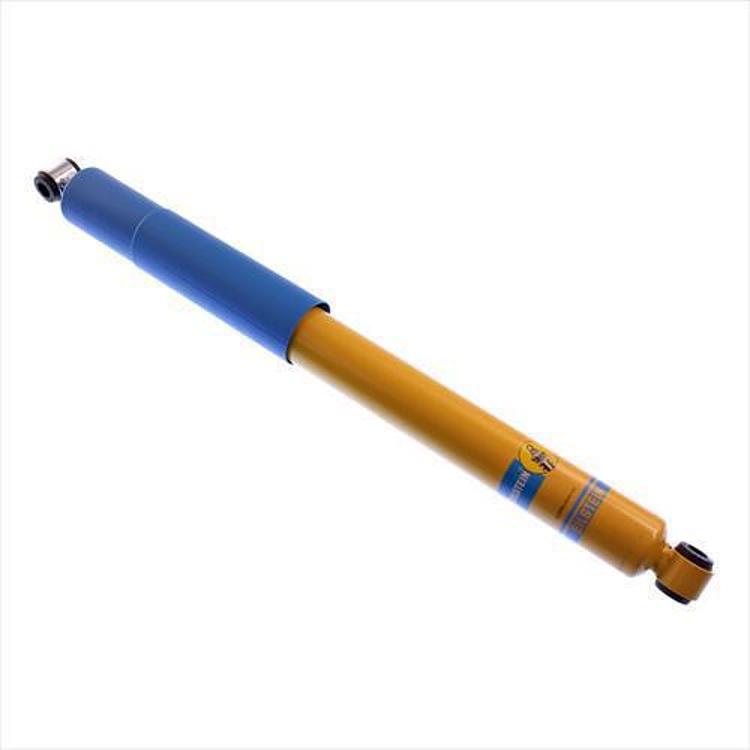

The Bilstein 24-184908 is a rear 46mm monotube shock absorber from the 4600 Series, built as a heavy duty unit with a yellow finish. It fits the 2000–2004 Nissan Xterra in SE and XE trims and the 1993–1998 Toyota T100 in Base, DLX, DX and SR5 trims. It also carries two older part numbers, BILF4-B46-2126-H0 and BILF4-B46-2126-H1.
The 4600 design centers on a gas-charged monotube body that carries heat from the fluid out to its outer surface. A separating piston gives the oil room to expand, so foaming and thinning stay in check. The piston head allows compression and rebound to be set separately, which helps ride comfort.
The 46mm body is a different size from the 2 in bodies found on many shocks in this series, so compare the diameter with the original shock before fitting. The listed lift height is w/0 – 2 in. Lift.
Key features
- Heavy duty rating.
- Gas-charged monotube construction with a 46mm body.
- Dividing piston that lets the oil expand as temperatures rise.
- Piston head with compression and rebound damping that can be tuned independently.
- Seamless tube made by an extrusion process that Bilstein says keeps wall thickness consistent.
- BILF4-B46-2126-H0 and BILF4-B46-2126-H1 are older part numbers for this shock.
Choosing between shock bodies
Body diameter affects how a shock seats in the mount, how it clears the surrounding parts, and how much oil it holds. A 46mm monotube body is a larger unit than the 2 in bodies many 4600 Series shocks use, so size is the first thing to compare. Measure the original shock’s body, mounting eye and stroke before buying, and note whether the old unit is a monotube or a twin tube design.
Heavy duty rear shocks are often chosen for trucks that carry loads, tow or see rough trails, because the body and piston are built to handle heat over longer use. Once a larger body is fitted, check clearance at the spring and at the frame during full compression. Replacing the bushings at the same time keeps the new unit from binding.
- Measure body diameter and mount eye size
- Check clearance at full compression
- Compare the old part numbers on the removed unit
- Torque the mounting fasteners after the first drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-184908 |
| UPC | 651860614540 |
| Shock series | 4600 Series |
| Body size | 46mm monotube |
| Position | Rear |
| Fitment type | Direct fit |
| Lift height | w/0 – 2 in. Lift |
| Design | Monotube, gas charged |
| Rating | Heavy duty |
| Reservoir | No |
| Finish | Yellow |
| Old part numbers | BILF4-B46-2126-H0, BILF4-B46-2126-H1 |
Vehicle fitment
This shock fits the 2000–2004 Nissan Xterra in SE and XE trims and the 1993–1998 Toyota T100 in Base, DLX, DX and SR5 trims. Match your year, model and trim to these entries before buying.
This shock does not cover the Nissan Frontier or the Toyota Tacoma. If your vehicle is outside the entries above, compare the diameter and mounting points with your original shock.
What’s included
No accessories or hardware are listed with this shock.
