Overview

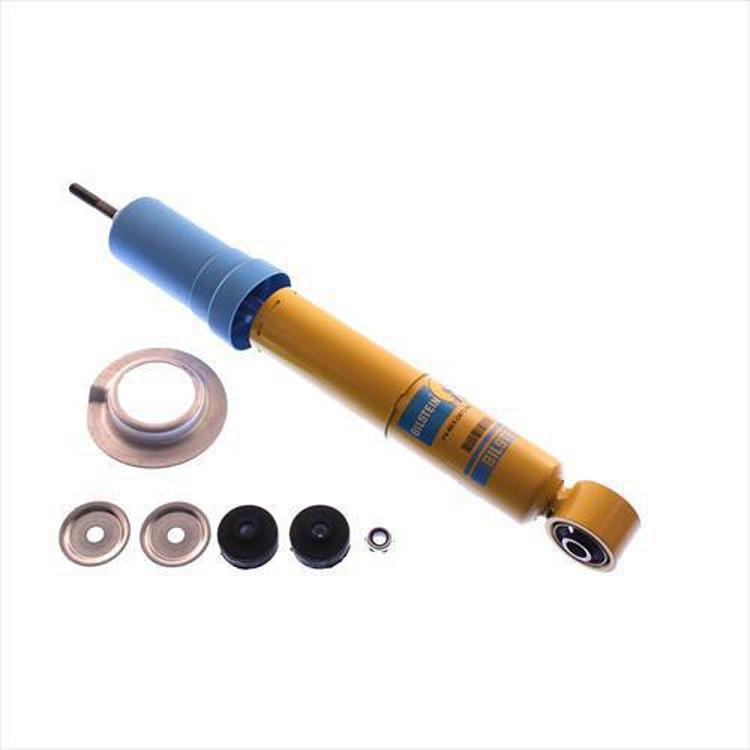

The Bilstein 4600 Series front shock absorber, part number 24-186193, is a gas-charged monotube damper for 2004–2012 Chevrolet Colorado and GMC Canyon models and for Isuzu i-280 and i-290 units from 2006 to 2008. It is a front-position unit with a 2 in body diameter, a yellow finish and boots included. Bilstein’s write-up puts heat control first. Oil heat is conducted through the monotube body and released at the outer surface, which the company describes as a more efficient route than a twin-tube design. A dividing piston lets the oil expand as heat builds, so foaming and viscosity loss are reduced and damping stays steady. The tube is formed by a special extrusion process with a tight peak-to-valley tolerance and consistent wall thickness, and the seamless construction is intended to add tube strength. The piston head lets compression and rebound be tuned separately, and the design has fewer parts than many conventional twin-tube and road-sensing shocks. Front and rear positions use different part numbers in this series, so check the position carefully before choosing.
Key features
- Front-position gas-charged monotube construction
- Piston head with separately tuned compression and rebound damping
- Dividing piston that handles oil expansion as heat builds
- Seamless extruded monotube for tight tolerance and steady wall thickness
- Fewer parts than many twin-tube and road-sensing shock designs
- Yellow finish with boots included
Front shock choice and wear
The front shock plays a central part in steering control and in keeping the tires in contact with the road over bumps. On compact pickups, a worn front unit often causes a bouncing nose, a loose feel on washboard, or cupping on the front tires. Front shocks should be replaced in pairs so that the left and right sides respond the same way under braking and turning.
Gas-charged monotube design keeps oil under pressure and releases heat through the outer body, which helps the damping stay steady. Check the boot before installing, since torn boots let grit into the seal. Keep the front position in mind when comparing units, because the rear unit in the same series is a different part.
- Replace front shocks in pairs
- Inspect boots for tears
- Check the front bushings and ball joints
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186193 |
| UPC | 651860583310 |
| Shock series | 4600 Series |
| Position | Front |
| Type | Monotube |
| Charge | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots | Included |
| Fitment type | Direct fit |
| Lift/drop | 0 in. |
Vehicle fitment
Fits 2004–2012 Chevrolet Colorado (Base, LS, LT, Sport, Sport LS, WT, Z71, Z71 LS, Z85, Z85 LS), 2004–2012 GMC Canyon (SL, SLE, SLT, WT, Z85 SL, Z85 SLE), the 2006 Isuzu i-280 (Base) and the 2007–2008 Isuzu i-290 (LS, S). Model years outside those ranges and later Colorado and Canyon generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
Model years outside those ranges and later Colorado and Canyon generations are not covered by this list.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included with the front shock absorber.
Not included: mounting hardware; check the package contents against your installation before fitting.
