Overview

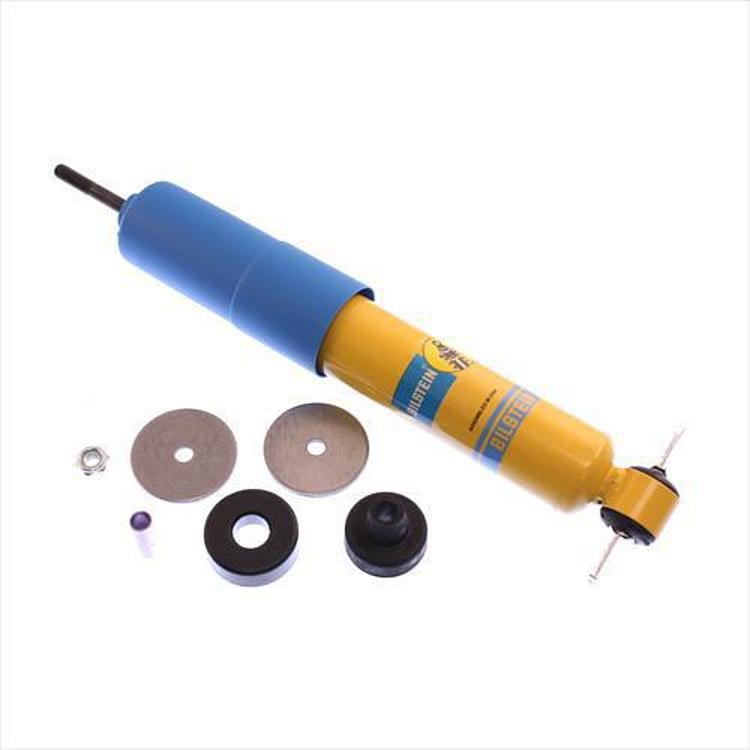

The Bilstein 4600 Series shock absorber, part number 24-069274, is a gas charged monotube shock with a 2 inch body diameter, a yellow finish and no reservoir. Bilstein markets it as a direct-fit 4600 Series replacement, but no vehicle applications are published for this part number, so the years and models it suits cannot be confirmed here.
Bilstein’s monotube body is built to move heat out of the damping oil. Heat travels outward through the shock body and dissipates more efficiently than in many twin tube designs. A dividing piston lets the oil expand as it warms, which limits aeration and foaming and helps the shock keep full damping as temperatures climb. The tube is extruded to tight peak-to-valley tolerances with consistent wall thickness, which Bilstein links to superior tube strength and longer shock life.
Key features
- Gas charged monotube body that moves heat from the oil to the outer shock surface.
- Dividing piston that allows oil expansion, reducing foaming and loss of viscosity under heat.
- Extruded tube with a tight peak-to-valley tolerance and even wall thickness.
- Piston head with independently tuned compression and rebound damping for ride comfort.
- Boots included with the shock absorber.
Confirming fit first
Shock absorbers are fitted by matching their length, mounting style and position to the vehicle. A shock that looks similar can have a different collapsed length or mount, which changes how it sits in the suspension. Before buying a replacement, compare the old shock’s overall length and both mount styles with the new unit so the travel and angle match the stock setup.
Gas-charged monotube shocks keep their damping oil cooler through the body, which helps them perform steadily on long drives. Confirm the front or rear position as well, since front and rear units often differ in length and mount type. Replacing both shocks on the same axle together keeps the vehicle balanced.
- Compare overall length with the old shock
- Confirm mount types at both ends
- Note whether the shock is front or rear
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-069274 |
| UPC | 651860466552 |
| Shock series | 4600 Series |
| Shock type | Monotube, gas charged |
| Body diameter | 2 in |
| Reservoir | No |
| Finish | Yellow |
| Boots included | Yes |
| Fitment type | Direct Fit |
Vehicle fitment
Only the Direct Fit label applies to this part number, so confirm fit for your vehicle’s year, model, trim and position before ordering.
Compare the mounting points and overall length of the shock you are replacing with this one before buying.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included with the shock absorber. No other package contents are named for this part number.
