Overview

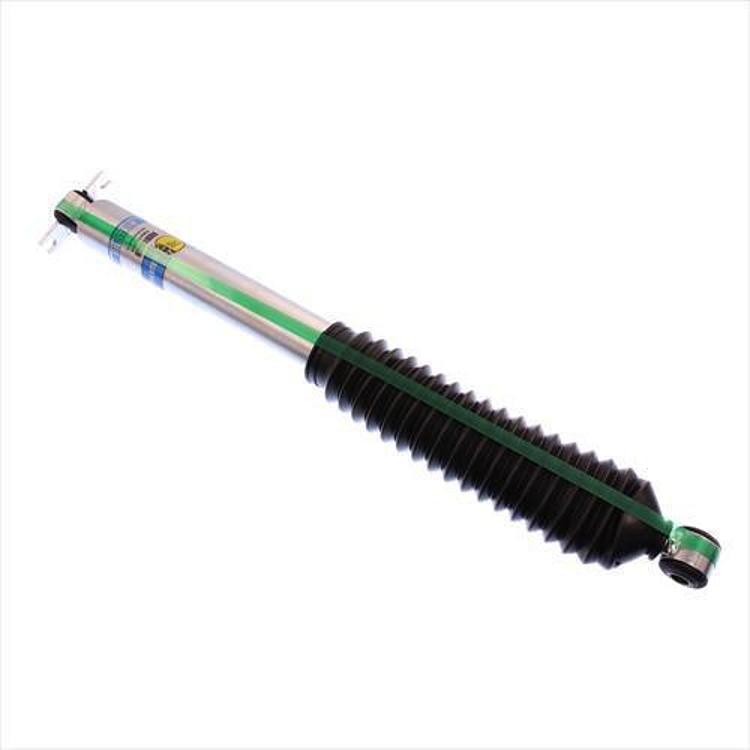

The Bilstein 5100 Series rear shock absorber, part 33-185514, is a monotube gas charged shock for the Jeep Wrangler TJ from 1997 to 2006 and the Wrangler LJ from 2004 to 2006. It is built for lifted Jeeps, trucks and prerunners with a 4 in. lift.
The shock is a single tube, high gas pressure design with self-adjusting deflecting disc valving. It has a high-flow piston and independent rebound and compression tuning.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Larger working piston area for damping control
- Designed for specific manufacturer lift kits with stock OEM mounting
Lifted Jeep rear shock basics
On a lifted Jeep, the rear shock controls axle movement after the suspension has been raised, so its travel and mounting angle matter as much as damping. Longer travel lets the axle reach full droop on uneven ground. A shock that bottoms out or runs out of extension can pull on the mounts, so check how the shock sits at full droop after installation.
Pay attention to the bump stops, control arm bushings and the rear track bar when the lift changes. These parts often wear alongside the shock and affect how the rear end tracks. Inspect the boot and lower mount for cracks when the shock comes off. Keep the boot clean so debris does not wear the shaft seal, especially after trail runs.
- Check the bump stops for wear
- Inspect control arm bushings
- Look for leaking oil at the seal
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-185514 |
| UPC | 651860453644 |
| Shock series | 5100 Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift height | 4 in. lift |
| Collapsed length | 15.41 in. |
| Extended length | 25 in. |
| Travel length | 9.59 in. |
| Lower mount | Eye 12.7mm |
| Upper mount | Bar pin |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | Yes |
Vehicle fitment
The manufacturer fitment list covers the 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and the 1997-2006 Jeep Wrangler (TJ) in trims 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X.
Wrangler JK models from 2007 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 5100 Series is designed for specific manufacturer lift kits that use the stock OEM mounting configuration, so match it to your lift kit before installing. Support the vehicle securely while the shock is removed.
What’s included
One rear shock absorber with boot included. Check the package contents against your installation before starting.
