Overview

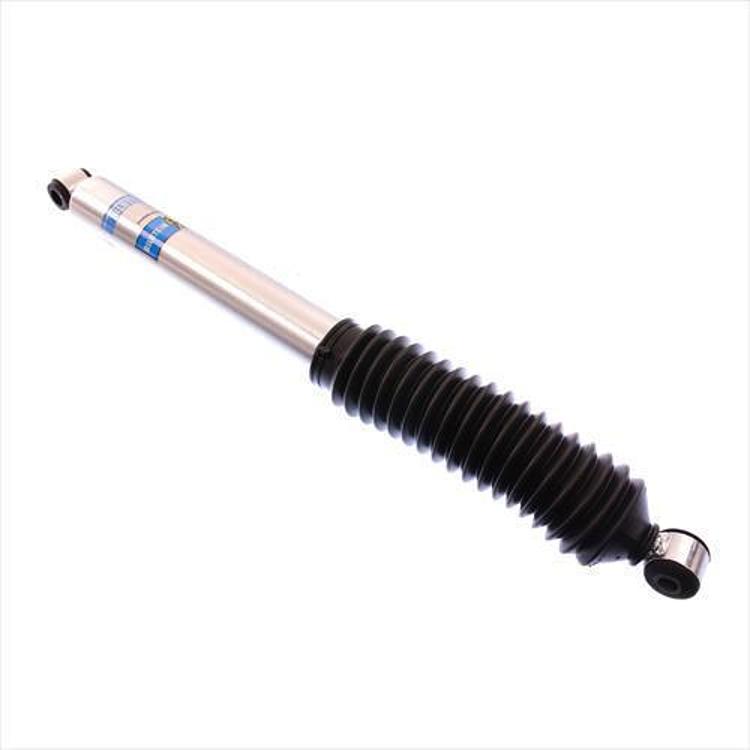

The Bilstein 5100 Series front shock absorber, part number 33-187297, is a gas-charged monotube shock with a 12mm lower eye and a 16mm upper eye. Bilstein gives its lift rating as w/0 – 2.5 in. Lift and names lifted trucks, Jeeps and prerunners as typical applications.
The 5100 Series is a single tube design with high gas pressure. The shock measures 14.44 inches collapsed and 23.23 inches extended, giving 8.79 inches of travel. Its 14mm shaft runs in a 46mm smooth, non-coilover body with no reservoir.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston and independent rebound and compression tuning
- Boot included
Front shock fit checks
Front shocks on lifted trucks need to match the lift range and the mounting eyes at each end. This model has a 12mm lower eye and a 16mm upper eye, so the two ends may use different bushings or hardware. Check both ends before ordering, because a bushing that fits one eye may not fit the other.
The shock’s collapsed and extended lengths decide how much travel it offers at the front. A shock that runs out of travel can bottom out over bumps and stress the mounts. Inspect the boot, body and bushings when the shock is removed, and replace worn parts before the new shock goes in. Front shocks are often replaced in pairs.
- Check the 12mm lower eye
- Check the 16mm upper eye
- Compare travel with the old shock
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-187297 |
| UPC | 651860616308 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 14.44 in |
| Extended length | 23.23 in |
| Travel length | 8.79 in |
| Lower mount | Eye 12mm |
| Upper mount | Eye 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Gas charged | Yes |
| Boot included | Yes |
| Lift height rating | w/0 – 2.5 in. Lift |
Vehicle fitment
Bilstein has not named any vehicle years, makes or models for this front shock. The applications given are lifted trucks, Jeeps and prerunners, which describe use rather than a match, so confirm that your specific vehicle is covered before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower eye is 12mm and the upper eye is 16mm, so each end can need different hardware. Check both mounts before fitting the shock, and secure the vehicle on stands before you remove the original.
What’s included
The shock absorber with its boot. No mounting parts are named.
