Overview

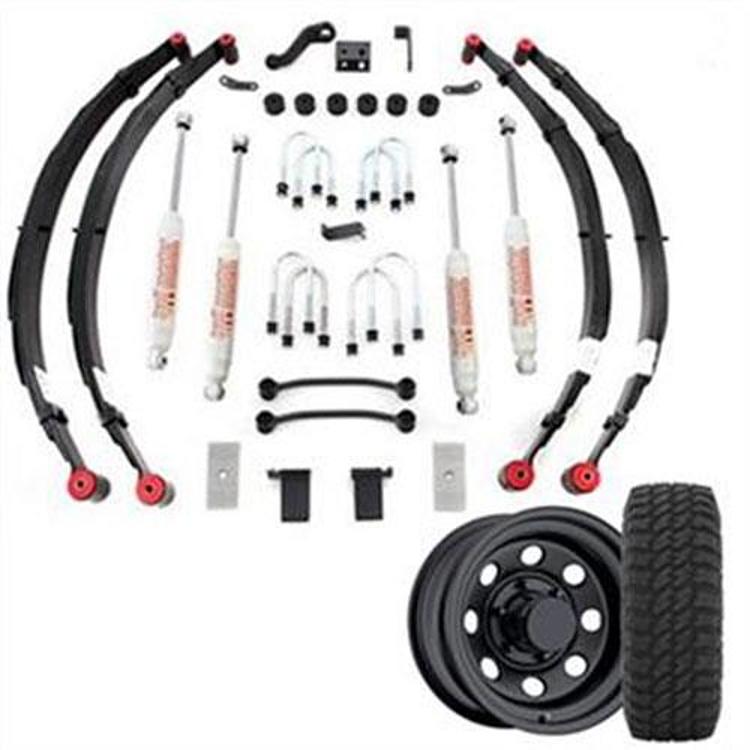

The Trail Master 4-inch complete lift kit with leaf springs includes lift springs, replacement shocks, a transfer case drop, a drop pitman arm and four Pro Comp XMT2 31-inch tires on Trail Master 15×8 black steel wheels. The kit gives a 4.0-inch lift for more ground clearance.
Trail Master systems are designed to limit wear on factory ball joints and steering components and to keep the ride quiet on the road.
The systems use high-grade alloy steel tube control arms, Flex-joint bushing technology, laser cut bolt holes and CNC machined spindles. The kit is a direct fit with a 3 to 4.99 inch lift range.
Key features
- 4.0-inch lift with leaf springs for a smooth ride
- Transfer case drop keeps driveshaft geometry
- Drop pitman arm keeps steering geometry
- Replacement NGS shocks
- Set of 4 31-inch Pro Comp XMT2 tires
- Set of 4 Trail Master 15×8 black steel wheels
Driveline and alignment after a lift
A leaf spring lift raises the body and moves the axle, which changes the angle of the driveshaft and the steering geometry. A transfer case drop and a drop pitman arm are designed to bring those angles back in line. The change in ride height should be checked with the vehicle on level ground.
Tire choice matters once a lift is installed, because larger tires change gearing, clearance and steering load. Look for rubbing against the body or brake lines at full turn and full compression. Check the lift parts for loose hardware after the first few drives, and retorque bolts once the parts have settled.
- Check driveline angles after installation
- Look for tire rubbing at full steering lock
- Inspect shock mounts after the first drives
Specifications
| Brand | Genuine Packages |
|---|---|
| Lift height | 4.0 inches |
| Suspension | Leaf spring |
| Shocks | Replacement NGS |
| Tires | Set of 4 31-inch Pro Comp XMT2 |
| Wheels | Set of 4 Trail Master 15×8 black steel |
| Included | Center caps and lug nuts |
Vehicle fitment
Check the kit against your vehicle’s axle, steering and driveline before ordering.
Lift packages have to be matched to the axle, steering and driveline on your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
After a 4-inch lift, the driveline angles and the front alignment should be checked. The transfer case drop and the drop pitman arm are part of the geometry correction that the package is designed to provide.
What’s included
A complete lift kit with leaf springs, replacement NGS shocks, a transfer case drop and a drop pitman arm, plus four 31-inch Pro Comp XMT2 tires and four Trail Master 15×8 black steel wheels with center caps and lug nuts.
Not included: TPMS sensors.
