Overview
The Pro Comp 6 Inch Short Arm Lift Kit with Pro Runner Shocks, part number K2076BP, is a 6-inch coil spring and short arm lift for the 2009-2010 Dodge Ram 2500 and 3500. The front uses coil springs with upper and lower control arms, and a drop pitman arm provides the steering correction.
This version uses Pro Runner front shocks in place of the ES9000 shocks in the K2076B. The rear uses lift blocks and U-bolts. The kit also includes an adjustable front track bar, a front track bar bracket and a transmission drop bracket. Shocks are included, and the lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 short arm lift
- Coil springs with upper and lower control arms
- Pro Runner front shocks, included
- Drop pitman arm steering correction
- Adjustable front track bar and track bar bracket
- Transmission drop bracket
Pro Runner shocks and daily use
Shock choice shapes how a short arm lift rides, especially on a truck that carries loads or tows. Pro Runner front shocks are paired with coil springs and upper and lower control arms here, so the front end should be inspected as one system.
Front shocks wear through leaks and worn bushings, which show up as bouncing or fading control on rough pavement. Replace them in pairs to keep both sides balanced, and inspect the mounts at the same time.
The drop pitman arm, track bar and transmission drop bracket all affect how the truck steers and drives after a lift. Check each one after the first drives and again at regular service.
- Inspect shock mounts and bushings
- Look for leaks along shock bodies
- Replace shocks in matching pairs
- Recheck track bar and steering after install
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2076BP |
| UPC | 70000637822 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Coil spring and short arm |
| Steering correction | Drop pitman arm |
| Rear lift | Blocks and U-bolts |
| Front shocks | Pro Runner |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
The kit fits the 2009-2010 Dodge Ram 2500 (Laramie, SLT, ST, SXT and TRX) and the 2009-2010 Dodge Ram 3500 (Laramie, SLT, ST and SXT). Ram 1500 trucks and the 2008 and earlier and 2011 and later Ram 2500 and 3500 models fall outside this fit.
Ram 1500 trucks, the 2011 and later Ram 2500 and 3500, and the 2008 and earlier models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The drop pitman arm and the transmission drop bracket are part of the install, so check steering and driveline operation after the kit is installed.
What’s included

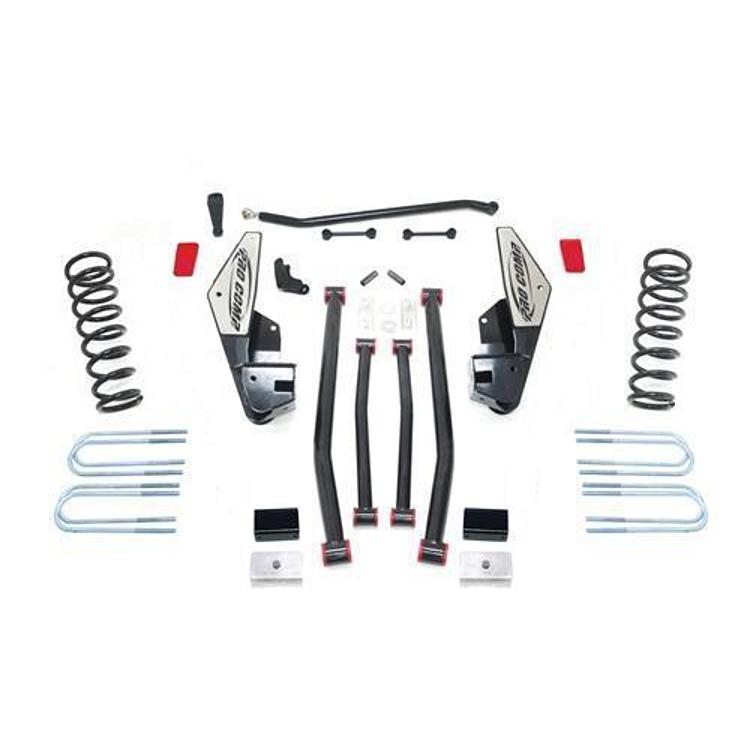

The kit includes front coil springs, upper and lower control arm components, an adjustable front track bar, a front track bar bracket, a drop pitman arm, a transmission drop bracket, rear blocks with U-bolts, and Pro Runner front shocks.
