Overview
The Pro Comp 4 Inch Lift Kit with ES3000 Shocks, part number K1049B, is a 4-inch bracket lift for the 1996-1999 Chevrolet Tahoe and GMC Yukon. It uses drop brackets at the front, front and rear crossmembers, compression struts and torsion bar drop brackets, with upper control arm mount brackets.
The rear uses lift blocks and U-bolts, and Pro Comp lists ES3000 front shocks with the shocks included. The lift height range is 3 to 4.99 inches.
Key features
- 4-inch stage 1 lift, 3 to 4.99 inch range
- Front drop brackets and torsion bar drop brackets
- Front and rear crossmembers
- Compression struts
- Upper control arm mount brackets
- Rear sway bar end links for the Tahoe
- Bump stops
- ES3000 front shocks, included
Lift height and driveline
A 4-inch bracket lift changes front and rear height through separate components, so the front and rear do not always rise by the same amount. The mixed setup affects how the axles and driveshaft sit under the truck, which is worth keeping in mind during installation.
Driveline angles are the main concern with any lift that moves the axle. A shaft working at a steep angle can vibrate or wear joints faster, so measure the angles once the truck is back on its wheels and compare the front and rear readings.
Lift blocks and U-bolts should be torqued after the first drives, since the hardware settles under the weight of the truck.
- Measure driveshaft angles after installation
- Re-torque U-bolts after the first drives
- Watch for vibration during highway speeds
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1049B |
| UPC | 614901122237 |
| Lift height | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Bracket |
| Rear lift | Lift blocks and U-bolts |
| Front shocks | ES3000 |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
It fits the 1996-1999 Chevrolet Tahoe (Base, LS and LT) and the 1996-1999 GMC Yukon (Denali, SL, SLE and SLT).
Tahoe and Yukon models from 1995 and from 2000 on, and other GM trucks, are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bracket front lift and the rear lift blocks change suspension height and driveline angles, so have the alignment and driveline angles checked after installation.
What’s included

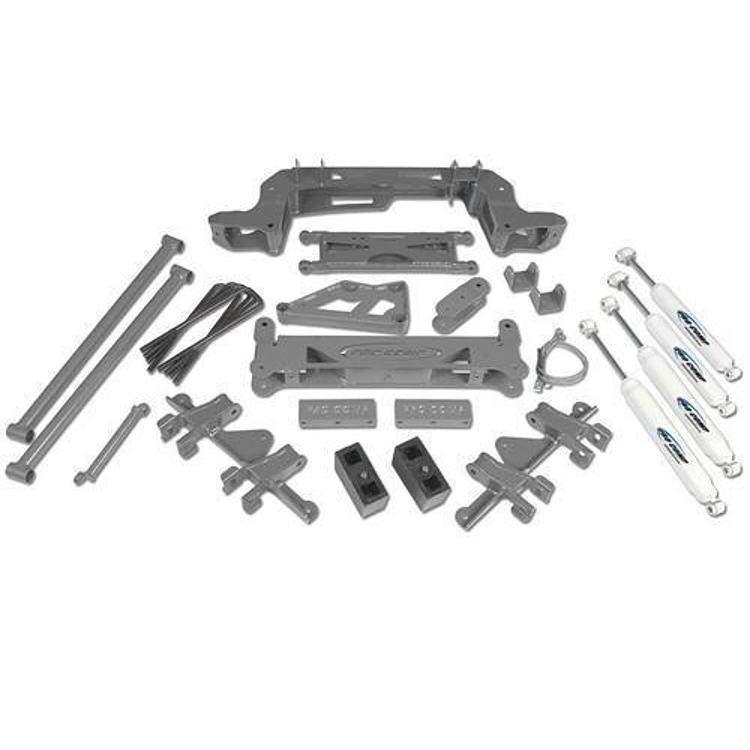

The kit includes front drop brackets, front and rear crossmembers, compression struts, upper control arm mount brackets, bump stops, torsion bar drop brackets, rear sway bar end links for the Tahoe, rear lift blocks with U-bolts, and ES3000 front shocks.
