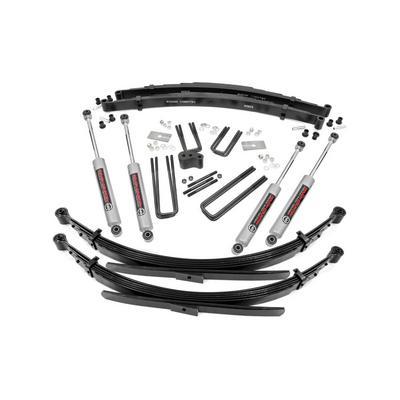

Rough Country 4″ Dodge Suspension Lift Kit with Rear Leaf Springs and N3 Shocks (Dana 44 Front Axle) – 340.20

Rough Country

Shop Dodge W150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch Dodge suspension lift kit for W-series trucks with Dana 44 front axle
  • Rear leaf springs and N3 shocks
  • Lift height range 4 to 5.5 inches
  • Recommended tire size 35×12.50
  • Fits selected 1978–1993 Dodge W-series trucks

Description

Overview

The Rough Country 340.20 is a 4-inch Dodge suspension lift kit with rear leaf springs and N3 shocks, designed for trucks with a Dana 44 front axle. The specifications list a lift height range of 4 to 5.5 inches, and the recommended tire size is 35×12.50.

The kit is for Dodge W-series trucks from 1978 to 1993, including the W100 Custom, W150 Base and S, W200 Base, W250 Base, W300 Base and W350 Base. The rear uses leaf springs, and the front and rear shocks are N3 units.

The kit uses factory recommended wheel backspacing. Check the spring pack and the shackle and hanger arrangement against the parts you receive before installation.

Key features

  • Rear leaf spring lift
  • N3 front and rear shocks
  • Dana 44 front axle application
  • Lift height range 4 to 5.5 inches
  • Recommended tire size 35×12.50

Leaf springs and rear geometry

Leaf springs locate the rear axle with the spring pack itself, so changes to leaf height affect axle position, driveline angle and brake line length. A leaf spring lift also changes the ride, since the spring rate and arch both shape how the truck responds. Check the spring pack for cracked leaves and loose center bolts before installation.

Shackles, hangers and U-bolts see more movement once the rear springs change, so inspect them after the first drives. Leaf spring bushings wear and can cause clunks or wandering on the highway. Retighten U-bolts after the first few weeks and replace worn bushings before steering feels loose. Brake lines and the parking brake cable may also need a look once the rear axle sits at a new height.

Specifications

Brand Rough Country
Part number 340.20
Shock series N3
Front shocks N3
Rear shocks N3
Rear lift component Leaf springs
Lift height range 4 to 5.5 in
Recommended tire size 35×12.50
Recommended wheel backspacing Factory

Vehicle fitment

It fits the 1986–1989 Dodge W100 Custom, the 1978–1993 Dodge W150 Base and S, the 1978–1980 Dodge W200 Base, the 1981–1993 Dodge W250 Base, the 1978–1980 Dodge W300 Base and the 1981–1993 Dodge W350 Base.

Dodge trucks from 1994 onward and Dodge W-series models with other front axles are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the kit changes the rear suspension to leaf springs, check the spring pack and the shackle and hanger arrangement before installation. Plan a wheel alignment after the lift is installed.

What’s included

N3 shocks and rear leaf springs, included with the kit.

Not included: tires and wheels.

SKU: R/C340.20 Categories: ,

Fitment

VehicleYearsTrims
Dodge W1001986–1989Custom
Dodge W1501978–1993Base, S
Dodge W2001978–1980Base
Dodge W2501981–1993Base
Dodge W3001978–1980Base
Dodge W3501981–1993Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 340.20 fit a 1985 Dodge W150?

Yes. It fits the 1978–1993 Dodge W150 in the Base and S trims, so a 1985 model year is covered. Make sure your trim is covered before buying.

Does the 340.20 include shocks?

Yes. The specifications list N3 front and rear shocks as part of the kit, so the shock package comes with the leaf springs.

What tire size does the 340.20 use?

The recommended tire size is 35x12.50 and the recommended wheel backspacing is factory. Check clearance with your tires before ordering.

How often should leaf spring bushings and U-bolts be checked?

Inspect them at every service and after any off-road use. Loose U-bolts, cracked bushings or sagging leaves change the lift and the axle position. Retighten U-bolts after the first drives, and replace worn bushings before they affect steering.
