Suspension Strut Assembly
Showing 13–24 of 38 resultsSorted by popularity
-
Suspension Strut Assembly

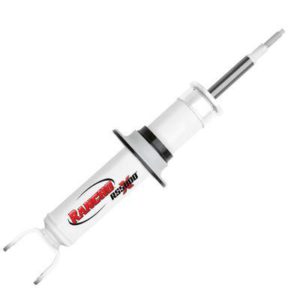

Rancho RS5000X Series Suspension Strut – RS55827
- Rancho RS5000X Series front shock for 2004–2008 INFINITI QX56, 2005–2015 Nissan Armada and 2005–2015, 2017–2019 Nissan Titan
- Compressed 10.80 inches, extended 14.63 inches, travel 3.83 inches
- Progressive engagement valving with a 16 mm rod and 35 mm bore
- Part number RANRS55827
SKU: RANRS55827 -
Suspension Strut Assembly

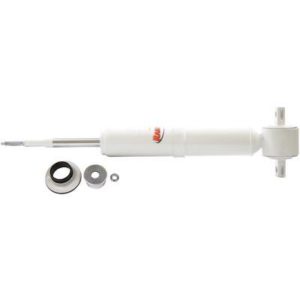

Rancho RS5000X Series Suspension Front Strut Assembly – RS55845
- Rancho RS5000X Series front strut assembly for 2019–2021 Chevrolet Silverado and GMC Sierra 1500
- Stock height front strut, excludes Trail Boss and AT4 models
- Includes Rancho’s Limited Lifetime Warranty and 90-day Performance Guarantee
- Part number RANRS55845
SKU: RANRS55845 -
Suspension Strut Assembly

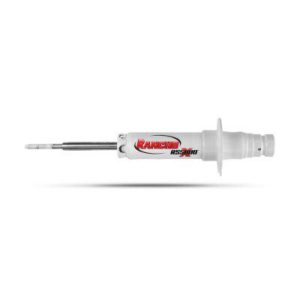

Rancho RS5000X Series Strut – RS55817
- Rancho RS5000X Series front shock for 2002–2009 Chevrolet Trailblazer and related GM SUVs
- Compressed 11.07 inches, extended 16.08 inches, travel 5.01 inches
- Progressive engagement valving with a 16 mm rod and 35 mm bore
- Part number RANRS55817
SKU: RANRS55817 -
-
-
Suspension Strut Assembly

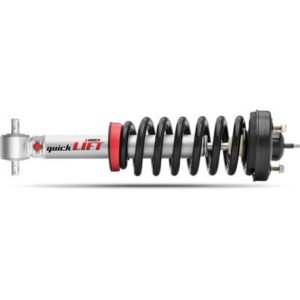

Rancho Quick Lift Loaded Front 2″ Lift Strut Assembly – RS999949
- Loaded front strut assembly for a 2 inch lift
- Gas charged, with an installed coil spring and upper mounting plate
- Nine-position RS9000XL adjustability
- Fits 2014–2019 Chevrolet Silverado and GMC Sierra 1500 trucks
SKU: RANRS999949 -
Suspension Strut Assembly
Bilstein B6 Suspension Strut Assembly – 22-282743
- Rear left B6 Series suspension strut, part number BIL22-282743
- Fits the 2008–2013 Toyota Highlander 2WD models in Base, Limited, Plus, SE and Sport trims
- OEM top and bottom mounts with OEM body diameter
- Gas-charged monotube design
- Black paint finish
SKU: BIL22-282743 -
Suspension Strut Assembly

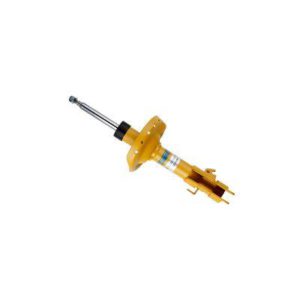

Bilstein B6 Suspension Strut Assembly – 22-278500
- Front right B6 Series suspension strut assembly, part number BIL22-278500
- Fits the 2014–2018 Subaru Forester 2.0XT Premium, 2.0XT Touring, 2.5i, 2.5i Limited, 2.5i Premium and 2.5i Touring
- Stem upper mount and bracket lower mount
- Supplied without a boot
- Yellow finish
SKU: BIL22-278500 -
Suspension Strut Assembly

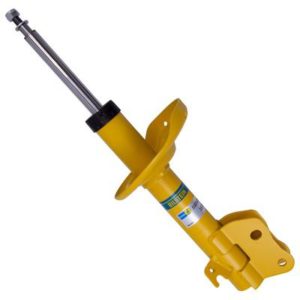

Bilstein B6 Suspension Strut Assembly – 22-278449
- Front right (passenger side) B6 Series strut, part number BIL22-278449
- Fits the 2009–2013 Subaru Forester X, X Limited, X Premium, X Touring, XT, XT Limited, XT Premium and XT Touring
- 46 mm body diameter and gas charged
- Monotube / twintube design
- Yellow paint finish
SKU: BIL22-278449 -
Suspension Strut Assembly

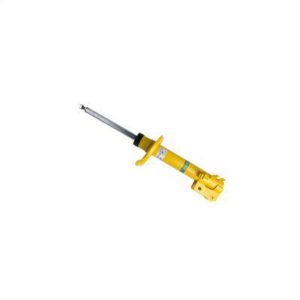

Bilstein B6 Suspension Strut Assembly – 22-259721
- Rear right B6 Series suspension strut, part number BIL22-259721
- Fits the 2015–2017 Jeep Renegade and the 2016–2018 Fiat 500X
- Front-wheel-drive (FWD) models only
- Direct-fit application for the rear right position
SKU: BIL22-259721
Strut assembly basics
A strut is a structural suspension part, not just a damper. It carries load, helps locate the wheel and, in a complete assembly, includes the coil spring, upper mount and often the bump stop and dust boot. Installing a complete unit avoids compressing the old spring and shortens the job compared with replacing only the cartridge. Many late-model trucks and SUVs use front struts, and so do vans and unibody vehicles.
Replacement versus lift struts
- OE replacement: restore factory ride height and handling, such as Bilstein B4 or B6 style assemblies listed for specific vehicles.
- Upgraded damping: adjusted valving for better control, often with a gas-charged design that resists fade.
- Leveling or lift struts: raise the front ride height, in listings such as a 2 inch lift or a taller lifted strut for a given truck.
- Adjustable and tuned units: some designs let you tune ride height or are tuned for a load, such as heavier bumpers-bumpers-tire-carriers-winch-mounts-2 or winches.
What to compare
- Position: front or rear, and left or right where the part is side specific.
- Lift height: check the claimed lift and the allowable range for your vehicle.
- Twin-tube versus monotube: twin-tube designs are common and comfortable, while monotube designs resist heat better under heavy use. Check the description to see which applies.
- Travel and bump stops: lifted vehicles need appropriate bump stops and may need limit straps or longer brake lines to prevent damage at full droop.
Fitment
Strut assemblies are highly vehicle specific. Model year, drive type, trim and engine can change the spring rate and mounting, and some listings are for a single side only. Confirm fitment for your exact year, make and model, and check the manufacturer's specifications and any noted limits for weight and accessories.
Installation notes
Struts are a safety-critical suspension part. Professional installation is recommended, especially if the spring has to be compressed, and a wheel alignment is needed afterward. Use correct torque on all fasteners and replace worn mounts, bearings and sway bar links at the same time. Replace in axle pairs so that both sides ride and handle the same.
Common mistakes and upkeep
The most common error is treating a strut like a simple shock. Because it is also a structural part, upper mounts, bearings and bump stops need attention, and a worn mount can cause clunking and steering noise that new struts will not fix. Inspect them when the old strut is out.
- Do not compress springs without the right tool. A coil spring stores significant energy, and a slipping compressor can cause serious injury. A complete assembly avoids this step.
- Match the load. A truck with a winch bumper or a camper needs stronger springs than a stock vehicle. Check the listing for any weight guidance.
- Look for leaks. Oil film along the strut body suggests seal failure.
- Allow for break-in. A new assembly can settle slightly, so confirm ride height after a few hundred miles.
- Check the rest of the corner. Control arm bushings and sway bar links affect handling at least as much.
Popular Suspension Strut Assembly brands
- Bilstein (15)
- Rough Country (10)
- Rancho (7)
- ARB 4x4 Accessories (2)
- Skyjacker (2)
- Pro Comp Suspension (1)
- Fabtech (1)
Suspension Strut Assembly FAQ
What is the difference between a strut and a shock?
A shock only dampens motion. A strut also acts as a structural part of the suspension, supporting the vehicle and the wheel position. Many struts also mount the coil spring, forming a complete assembly.
Should I replace struts in pairs?
Yes, it is recommended to replace both sides of an axle together. Mismatched wear changes damping and ride height, which can affect handling and braking. Check any other worn components at the same time.
Do I need an alignment after installing struts?
Yes. Strut work changes suspension geometry, and a lift or leveling strut changes it even more. An alignment protects your tires and keeps steering accurate and predictable.
Will leveling struts fit my truck?
They are made for specific vehicles and ride heights. Confirm fitment for your exact year, make and model, and follow the maker's notes on tire size, alignment and any extra parts such as longer brake lines.
