Overview
The Tuff Country 12918 is a 1.25 inch front leveling kit that uses two coil spring or strut spacers mounted above the factory coil or strut. The kit includes two spacers and the required hardware, and it is a front lift only.
The 12918 is a 1.25 inch front leveling kit that mounts two coil spring or strut spacers above the factory coil or strut. It adds no extra pre-load on the struts and allows slightly larger tires, such as 285/70R.
Key features
- 1.25 inch front lift
- Coil spring or strut spacers mounted above the factory coil or strut
- No extra pre-load on the struts, per Tuff Country
- Allows slightly larger tires, such as 285/70R, per Tuff Country
- Two spacers and required hardware included
Coil spacer installation tips
Coil spacers sit above the factory coil or strut, adding height without replacing the spring. Because they are installed between the mount and spring, the strut top and mounting hardware should be inspected for wear before fitting. Clean the mating surfaces so the spacers seat flat and do not shift under load.
Front height changes affect headlight aim, brake hose length and steering geometry, so recheck those items after installation. Hoses that were routed with the old height may come under tension at full lock. A short test drive on a level road helps reveal any clicking, rubbing or change in steering feel.
Keep the factory bump stops and strut components in good condition, because they control travel when the front is loaded. Replacing worn mounts at the same time keeps the front end consistent after leveling.
- Inspect strut top mounts before fitting
- Recheck headlight aim after installation
- Check brake hose routing at full lock
- Listen for rubbing or clicking on a short test drive
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 12918 |
| UPC | 698815129186 |
| Lift | 1.25 inches, front |
| Front lift method | Coil spring spacers |
| Quantity | Two spacers |
| Position | Front |
Vehicle fitment
It fits the 2015-2018 Chevrolet Colorado and 2015-2018 GMC Canyon across their trim levels. Confirm fit for your model and year before ordering.
Confirm your vehicle’s year, model and trim before ordering, and check the Colorado or Canyon application against your truck.
What’s included

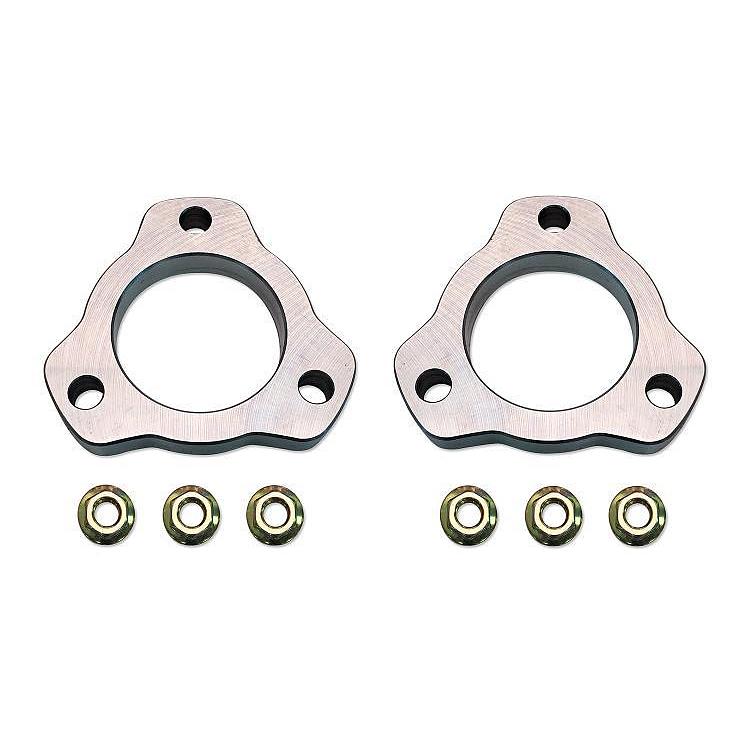

Included: two coil or strut spacers and the required hardware.
