Tuff Country 3 Inch Leveling Lift Kit – 23955

Tuff Country

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3-inch front leveling lift kit for 2000–2004 Ford F-250 and F-350 Super Duty trucks
  • Includes relocation brackets, bump stop spacers, front sway bar endlinks and a driver-side track bar bracket
  • Part number 23955, UPC 70000400827

Description

Overview

The Tuff Country 23955 is a 3-inch front lift kit for the 2000–2004 Ford F-250 Super Duty and F-350 Super Duty. It raises the front of the truck to sit level with the rear, which allows slightly larger tires and removes the factory nose-down rake.

This package goes beyond a basic leveling kit. It includes relocation brackets, bump stop spacers, front sway bar endlinks and a track bar bracket, and it is a direct-fit front position kit.

Key features

  • 3-inch front lift
  • Front and rear relocation brackets
  • Bump stop spacers
  • Front sway bar endlinks
  • Driver-side upper track bar bracket

Beyond a leveling kit

A package with relocation brackets and sway bar endlinks changes more than height. The track bar bracket affects how the axle is located, and the endlinks change the sway bar geometry. Because the steering and linkage are involved, this type of kit is a bigger job than a spacer set and calls for careful measuring during installation.

Plan on a wheel alignment and a check of the brake lines and steering components after the install. Inspect the bump stops, the endlink bushings and the track bar mounts over time, since the new angles put extra load on them. Keeping the hardware torqued and recording the alignment settings makes future service easier.

  • Expect a full alignment after install
  • Inspect endlink bushings and track bar mounts
  • Check brake lines and steering linkage

Specifications

Brand Tuff Country
Part number 23955
UPC 70000400827
Lift height 3 inches
Lift location Front
Fitment type Direct fit

Vehicle fitment

It fits the 2000–2004 Ford F-250 Super Duty and the 2000–2004 Ford F-350 Super Duty.

Confirm fit for your vehicle’s year, model and trim before ordering, especially for Super Duty model years 2005 and later.

Installation notes

The kit includes a track bar bracket and front sway bar endlinks, so the front suspension and steering linkage are both affected. Have the front alignment checked after installation.

What’s included

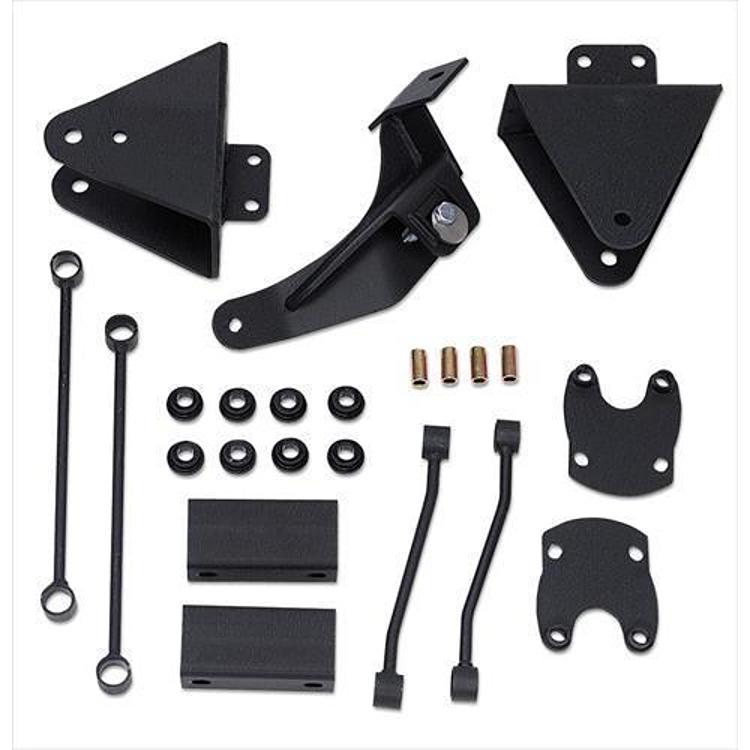

The kit includes relocation brackets, bump stop spacers, front sway bar endlinks, an upper track bar bracket for the driver side, a hardware bag and a poly bag.

SKU: T/C23955 Category:

Specification

Shipping weight 49.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2000–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2000–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Tuff Country 23955 fit a 2002 Ford F-350 Super Duty?

Yes. It fits the 2002 Ford F-350 Super Duty, which falls within the 2000–2004 range. Confirm your year, model and trim before ordering.

Is the 23955 a 3-inch lift?

Yes. It is a 3-inch front lift set for the front position with direct fit. The package includes relocation brackets and sway bar endlinks.

What parts come with the 23955 kit?

It includes relocation brackets, bump stop spacers, front sway bar endlinks, a driver-side upper track bar bracket, a hardware bag and a poly bag.

Do sway bar endlinks need checking after a lift?

Yes. Endlinks carry load differently at a new ride height. Look for cracked bushings, play or noise, and replace worn endlinks so the sway bar keeps working correctly.
