Overview
The Trail Master 6-inch Knuckle Suspension Lift Kit with Aluminium Knuckles and NGS Shocks fits 2014 to 2018 GM 1500 pickups. It lifts the front 6 inches with steel strut spacers and the rear 5 inches with a block, U-bolts and add-a-leafs.
The kit uses aluminum knuckles, and Trail Master builds it with high-clearance crossmembers and a differential skid plate. Nitrogen gas charged NGS shocks are included for the rear.
The rear block and add-a-leaf lift keeps ride quality and towing capacity in line with a factory-height truck and reduces wrap-up. The front lift is 6 inches from steel spacers, and this kit uses aluminum knuckles, so have the alignment checked after installation.
The rear lift is 5 inches from a block and add-a-leafs, with NGS nitrogen gas shocks at the rear. Install the rear lift parts and the front spacers together so both ends reach their set heights.
Key features
- Aluminum knuckles
- 6-inch front lift from steel strut spacers
- 5-inch rear lift from a block and add-a-leafs
- Nitrogen gas charged NGS shocks for the rear
- High-clearance crossmembers and differential skid plate
Balancing front and rear height
A knuckle lift changes the angles of the steering and suspension parts, so the front end should be treated as one system rather than a single bolt-on swap. Tie rod ends, ball joints and brake hoses work at new angles after the lift, so inspect them for play and stretch during the first few drives. Driveline angles at the rear also move with the block and add-a-leafs, which is why measuring them after installation matters.
Shock length is another point to consider. A rear lift that combines blocks with add-a-leafs changes the rest height of the axle, so the rear shocks and bump stops need to suit the new position. Check the bump stops for contact once the truck is loaded, and re-torque the U-bolts after the first trail runs to keep the rear axle seated.
- Front alignment after installation
- Tie rod end and ball joint play
- Driveline angle measurement
- U-bolt torque after first trail runs
Specifications
| Brand | Trail Master |
|---|---|
| UPC | 700008130871 |
| Front lift | 6 inches, steel spacers |
| Rear lift | 5 inches, block and add-a-leafs |
| Knuckles | Aluminum |
| Shocks | Nitrogen gas charged NGS, rear |
| Lift height range | 4 to 6 inches |
Vehicle fitment
It fits 2014 to 2018 GM 1500 pickups, including the Chevrolet Silverado 1500 and GMC Sierra 1500.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for 2007 to 2013 GM 1500 trucks.
Installation notes
The rear block and add-a-leafs change the rear ride height, so the front alignment and driveline angles should be checked after the install.
What’s included

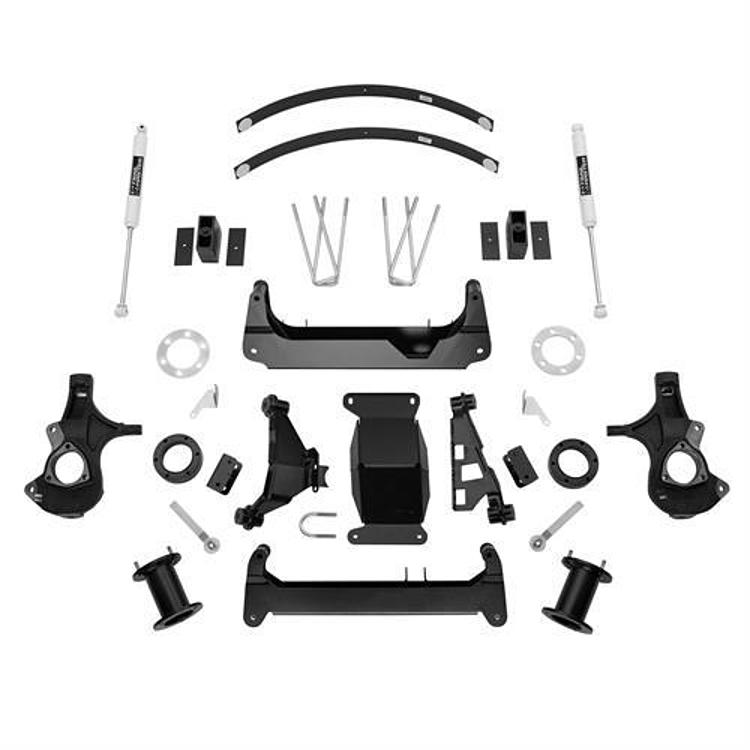

Aluminum knuckles, steel front strut spacers, crossmembers, differential skid plate, differential spacers, rear block, U-bolts, add-a-leafs and NGS rear shocks.
