Trail Master 4.5 Inch Lift Kit with NGS Shocks – TM3745-40013

Trail Master

Shop Trail Master Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 4.5-inch lift kit with NGS shocks, model TM3745-40013
  • Front coil springs and rear add-a-leafs
  • Max tire size 32×10.50

Description

Overview

The Trail Master 4.5-inch Lift Kit with NGS Shocks, model TM3745-40013, lifts the front with coil springs and the rear with add-a-leafs. It is rated for 32×10.50 tires and includes NGS shocks.

Lower control arms, sway bar end links and rear shackles come with the kit. Trail Master says its suspensions are made to limit wear on factory ball joints and steering parts, which it achieves with alloy steel tube control arms, flex-joint bushings and CNC machined spindles.

Coil springs at the front and add-a-leafs at the rear are a common way to lift a truck that has different front and rear spring types. The 4.5-inch lift is rated for 32×10.50 tires, and the lower control arms and sway bar end links support the front suspension at the new height.

The rear shackles and U-bolt kit come with the kit, so the rear end has the parts it needs to be installed as a kit rather than as separate purchases.

The rear shackles and U-bolt kit are included, so the rear end has the parts it needs for the add-a-leaf lift. The kit lists 3 to 4.99 inches as its lift height range.

Key features

  • 4.5-inch lift
  • Front coil springs
  • Rear add-a-leafs
  • Lower control arms
  • Sway bar end links and rear shackles
  • NGS shocks

Setting heights at each end

A coil spring front with an add-a-leaf rear sets two different heights, so the front and rear should be checked together. Measure the height at both ends before the first drive, and recheck it after the springs settle. The rear rake depends on how the add-a-leafs sit, so small differences in leaf pack height change the stance of the whole truck.

Add-a-leafs carry most of the rear load, so the U-bolts and shackles take regular stress. Retighten the U-bolts after the first few trail runs and inspect the shackle bushings for wear over time. Sway bar end links and lower control arms hold the front at the lifted height, so their bushings should be checked during routine service.

  • Front and rear height check
  • U-bolt torque after first runs
  • Shackle bushing wear
  • Sway bar end link play

Specifications

Brand Trail Master
Part number TM3745-40013
UPC 614901083521
Lift height 4.5 inches
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Rear lift method Add-a-leafs
Maximum tire size 32×10.50

Vehicle fitment

No vehicle is named for this kit and no fitment list is available. Check Trail Master specifications for the year and model before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Front coil springs with rear add-a-leafs change the height at each end differently, so check the front alignment and the driveline angles after installation.

What’s included

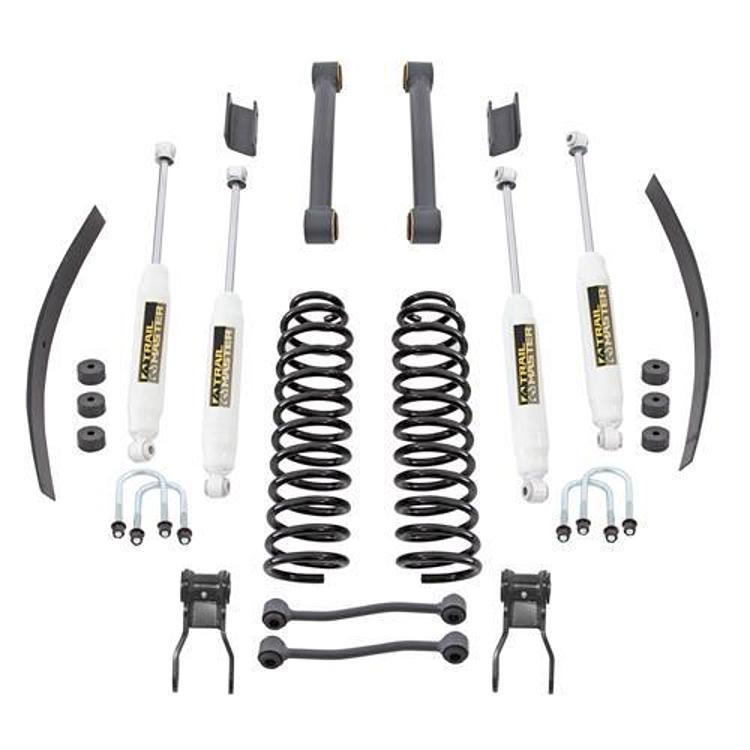

Front coil springs, rear add-a-leafs, lower control arms, sway bar end links, rear shackles, U-bolt kit and NGS shocks.

SKU: T/MTM3745-40013 Category:

Specification

Shipping weight 89.75 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Is the TM3745-40013 a coil spring or leaf spring kit?

It is a coil spring kit up front, with add-a-leafs in the rear. The suspension type is coil spring, and the rear lift method uses add-a-leafs, so both ends are set up with different spring types.

Does the kit include shocks and sway bar links?

Yes. It includes NGS shocks and sway bar end links, along with lower control arms and rear shackles. The rear shackles and U-bolt kit are included for the add-a-leaf lift.

What is the maximum tire size for the 4.5-inch kit?

The maximum tire size for the 4.5-inch kit is 32x10.50. The lift height range covered is 3 to 4.99 inches, so the kit sits within that band for its rated height.

Can the rear add-a-leafs be changed later?

Yes, but the front and rear heights should be set together. Changing the rear leaf pack alters the rake, so recheck alignment and driveline angles after any spring swap, and confirm the U-bolts stay tight during the first weeks of use.
