Overview

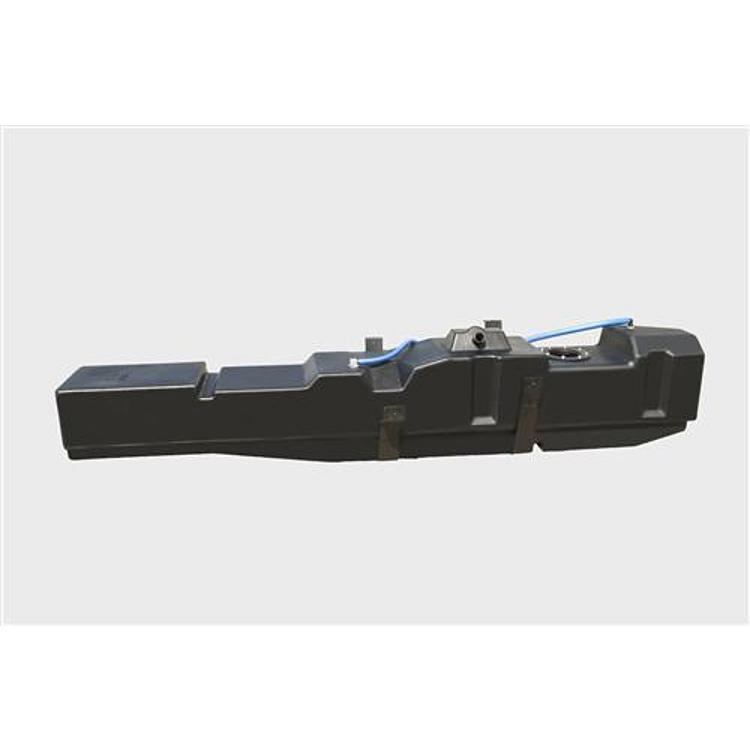

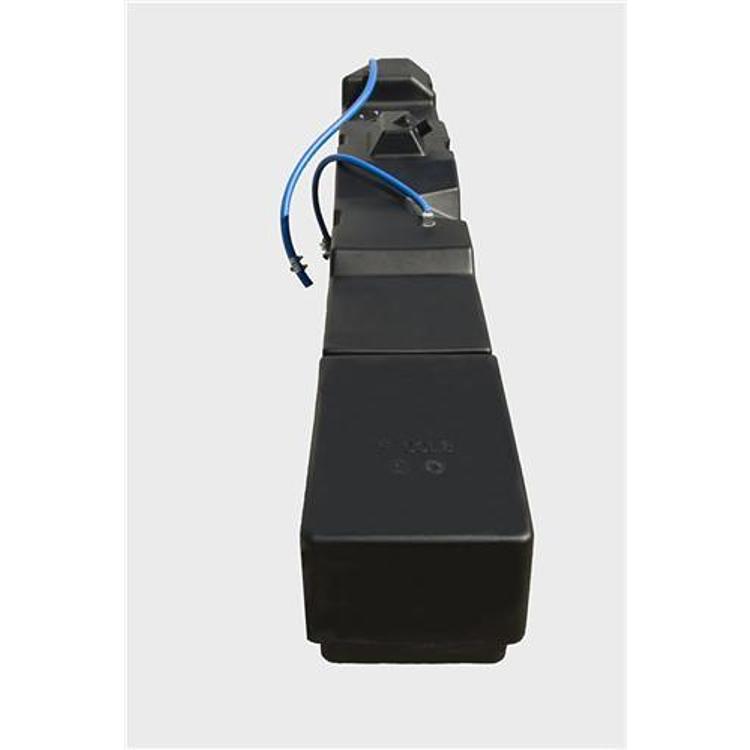

The Titan Tanks 67 Gallon Extra Capacity Fuel Tank, part number 7020399, is a 67 gallon replacement fuel tank for the 1999–2007 Ford F-250 and F-350 Super Duty. It fits the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims. The tank is made from extra heavy duty cross-link polyethylene and is built for long bed crew cab trucks.
Its 67 gallon capacity is designed to more than double the driving range of the original equipment tank. The kit includes the mounting bracket, strap set and vent parts used to fit the tank, plus a heavy-gauge steel nose skid plate.
Key features
- 67 gallon extra capacity, a larger tank than the original equipment unit
- Extra heavy duty cross-link polyethylene construction
- Powder-coated cross-member bracket and steel strap set for mounting
- Rubber mounting bushing and vent hoses included
- Rollover safety vent valves, seals and required clamps included
- Heavy-gauge steel nose skid plate included
Before you install
Replacing a fuel tank on a Super Duty is a larger job than swapping a single component, because the tank sits beside the driveline, exhaust and frame rails. Before removing the original tank, look over the filler neck hose, the fuel lines and the sending unit wiring, since these often show wear once the tank is down. Replace any cracked or hardened hoses while access is easy, and replace the rubber mounting bushings if they are split or flattened, since fresh bushings keep the tank from rubbing on the frame.
After the tank is in place, check that the nose skid plate clears the front of the tank without pinching the vent hoses. Walk the vent lines from the tank to the rollover valves and make sure nothing kinks them under the truck. Recheck the strap bolts after the first few drives, since the tank can settle as the mounts seat. A tank of this size also changes the load carried by the rear of the frame, so inspect the mounts periodically for cracks or movement.
Specifications
| Brand | Titan Tanks |
|---|---|
| Part number | 7020399 |
| UPC | 848135000300 |
| Capacity | 67 gallons |
| Material | Extra heavy duty cross-link polyethylene |
| Mounting hardware | Powder-coated cross-member bracket, steel strap set, rubber mounting bushing |
| Venting and seals | Vent hoses, rollover safety vent valves, seals, required clamps |
| Skid plate | Heavy-gauge steel nose skid plate |
Vehicle fitment
The manufacturer fitment list for this tank covers the 1999–2007 Ford F-250 Super Duty and 1999–2007 Ford F-350 Super Duty, with each trim named in the list. Check the trim on your truck against that list before choosing a tank.
Super Duty trucks from other model years, and Ford F-150 and other non-Super Duty models, are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The steel strap set, powder-coated cross-member bracket and rubber mounting bushing are the mounting parts, and the vent hoses and rollover safety vent valves handle venting. Fuel system work carries fire risk, so empty the tank before removing or installing it.
What’s included
The kit includes the 67 gallon tank, powder-coated cross-member bracket, steel strap set, rubber mounting bushing, vent hoses, rollover safety vent valves, seals, required clamps and a heavy-gauge steel nose skid plate.
