Overview

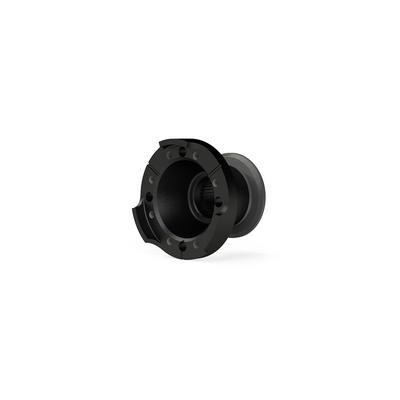

The TeraFlex transfer case yoke, part number 1959110, is the yoke used in the TeraFlex High-Angle Rzeppa CV drive shaft conversion. It fits 2007–2018 Jeep Wrangler JK, 2004–2006 Wrangler LJ Unlimited and 1997–2006 Wrangler TJ models.
It suits models with a 3 to 6 inch lift running the TeraFlex conversion, and a dust shield is included.
Key features
- Yoke for TeraFlex High-Angle Rzeppa CV drive shaft conversion
- Dust shield included
- Made for models with a 3 to 6 inch lift
- Lists 2-door and 4-door 2007–2018 Wrangler JK models
Driveline angles and lift
A high-angle CV conversion changes how the driveline sits, so the yoke and shaft must work at steeper angles than a standard setup. Lift height changes those angles again, and the combined effect determines whether the joints stay within their operating range and whether the dust shield clears moving parts under articulation.
Before final assembly, check the shaft length, the pinion and transfer case angles, and clearance to the crossmember and frame at full droop. Inspect the dust shield for contact during articulation, and recheck the bolts after the first drives on the trail. Shops that handle these conversions often verify angles with measurements, which is a sensible step for any driver who changes lift or tire size later.
- Measure driveline angles after the lift is installed
- Check dust shield clearance at full articulation
- Recheck fasteners after the first trail runs
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1959110 |
| Part type | Transfer case yoke for high-angle CV drive shaft |
| Lift range | 3 to 6 inch |
| Included | Dust shield |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler (JK), including 2-door and 4-door trims such as Rubicon, Sahara, Sport, Sport S, X and Unlimited versions; 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon; and 1997–2006 Jeep Wrangler (TJ) in Rubicon, SE, Sahara, Sport and X trims.
The list does not include the 1987–1995 Wrangler YJ or the 2018–2022 Wrangler JL. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This yoke is part of a driveline conversion, so check the CV shaft setup, driveline angles and dust shield fit after the lift and conversion are complete. A qualified driveline shop should confirm clearances.
What’s included
The dust shield comes with the yoke. Check the package contents against your conversion parts before starting the installation.
Not included: The yoke is the item sold. Confirm the high-angle CV drive shaft and other conversion parts are on hand before starting.
