Overview

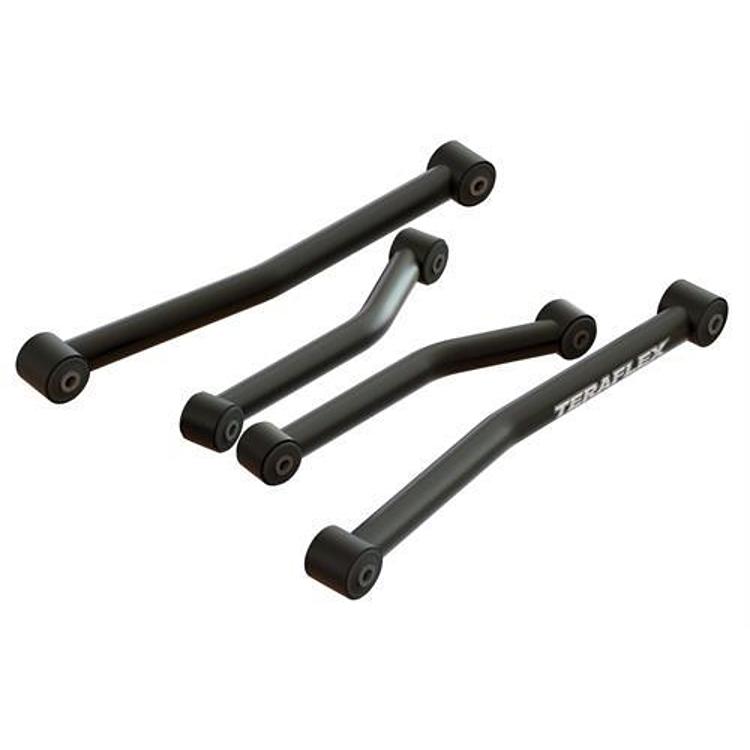

The TeraFlex Sport 4 FlexArm kit, part number 1254000, provides fixed-length sport flexarms for 2.5 to 3 inch lifts and includes a front lower and a rear upper arm. Its pre-adjusted length corrects caster and pinion angles for those lift kits.
The design is maintenance free, with factory style bushings for vibration damping, a full range of movement that does not restrict articulation, and a premium black e-dipped coating for corrosion resistance. Vehicle years and models are unknown.
Key features
- Front lower and rear upper sport flexarms included
- Pre-adjusted length corrects caster and pinion angles
- Factory style bushings in a described maintenance free design
- Black e-dipped coating on a 1-5/8 inch x 0.156 wall DOM tube
Front and rear arm pairing
Front lower and rear upper arms share the job of locating the axle and controlling wheel movement, so they interact closely. A sport kit that replaces one pair affects how the other pair loads, which makes matching geometry important. When arms are installed as a set, the axle can be aligned more evenly, reducing binding through travel.
Before installation, confirm the arms match your lift height and that the mounting points are clean and undamaged. Check the bushings and sleeves for proper seating, and do not overtighten the fasteners before the vehicle is at ride height. Expect to re-check caster, pinion and driveline angles afterward. If other suspension parts are worn, replace them while the arms are off, since a worn joint can change the geometry you just set.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1254000 |
| UPC | 843885033035 |
| Lift range | 2.5 to 3 inch |
| Arms included | Front lower, rear upper |
| Tube | 1-5/8 inch x 0.156 inch wall DOM |
| Coating | Premium black e-dipped |
| Bushings | Factory style |
| Install time | 2.5 hours |
Vehicle fitment
Fit by vehicle is unknown for this kit. Universal Fit does not confirm a vehicle, so confirm your 2.5 to 3 inch lift setup and mounting points before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The listed install time is 2.5 hours. With two arms set to pre-adjusted lengths, have caster, pinion angle and driveline angles checked after installation.
What’s included
A front lower and a rear upper sport flexarm.
