Overview

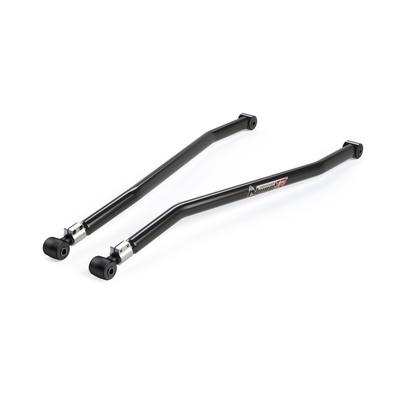

The TeraFlex Alpine IR Rear Lower Long Arm Pair, part 1418560, is a set of rear lower long arms for the 2020-2026 Jeep Gladiator (JT). The arms give complete alignment adjustability when used with the matching bracket kit.
The arms use maintenance-free IR bushings, which allow unrestricted rotation and flex and help damp noise, vibration and harshness. They can be added to any existing suspension lift.
The arms are for JT models that have a suspension lift. Use them with the matching rear upper pair when a full rear arm set is needed.
Key features
- Pair of rear lower long arms
- IR flex joint bushings with unrestricted rotation
- Maintenance-free design
- Helps damp noise, vibration and harshness.
- Complete alignment adjustability with the matching bracket kit
- Can be added to any existing suspension lift
Lower arm angles and ride height
Lower long arms carry the axle’s fore and aft loads and set how the axle moves in relation to the frame. Their angle changes when the lift height changes, so the arms should be checked whenever the suspension is raised or lowered. A pair of arms should always be replaced together so both sides stay balanced.
Flex joint bushings such as IR bushings allow free rotation, which helps the arm move through its travel without binding. Inspect the bushings and joint ends for tears, play or damage from road debris. Keep the bracket hardware torqued to the vehicle’s specification, and recheck it after the first few trips off road.
- Replace arms as a pair
- Recheck bracket bolts after the first trips
- Inspect flex joints for tears or damage
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1418560 |
| Position | Rear lower |
| Type | Tube long arm |
| Joint design | Flex joint with IR bushings |
Vehicle fitment
TeraFlex lists these arms for the 2020-2026 Jeep Gladiator (JT) in a range of trims, including Overland, Rubicon, Mojave and Sport.
Fit covers the 2020-2026 Jeep Gladiator (JT), including Overland, Rubicon, Mojave and Sport trims. Wrangler JL and JK models fall outside that range. Compare your year, model and trim with this fit before ordering.
Installation notes
The arms must be used with the Long Arm Bracket Kit, part 1968000, on JT models. Check the full installation requirements against your vehicle before starting.
What’s included
The package is the pair of rear lower long arms.
Not included: the Long Arm Bracket Kit, part 1968000, which TeraFlex says is required.
