Overview

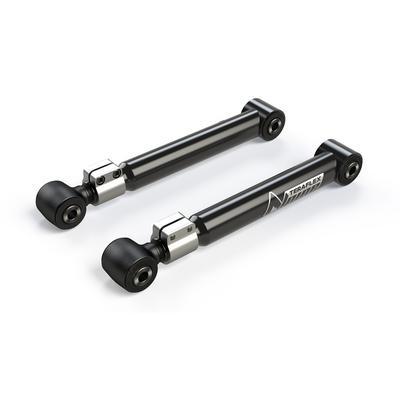

The TeraFlex 1417530 is a rear upper short control arm kit for the 2020–2026 Jeep Gladiator (JT). It is designed for alignment adjustability on Gladiators with 0 to 4.5 inch lifts.
The arms bolt to the factory control arm mounting brackets and can be added to an existing suspension lift. The factory-style bushings are maintenance-free.
Key features
- Rear upper position
- Adjustable alignment
- Bolts to factory control arm mounting brackets
- Suitable for 0 to 4.5 inch lifts
- Maintenance-free, factory-style bushings
Setting up rear upper arms
A rear upper control arm locates the axle along the frame and works with the lower links to control axle position under acceleration and braking. When a lift changes the geometry, the upper arm angle changes too, which affects pinion angle and the way the driveshaft operates. Adjustable arms let you set that angle back toward the factory position, so the axle does not sit at an awkward angle that can cause vibration.
Before installing, inspect the factory brackets for cracks or bent tabs, and replace worn bushings in the other suspension links at the same time. After the kit is in, measure pinion angle with the truck at ride height and recheck after the first few trail outings, because bolts can settle. Keep the lift height in mind when you set the arm length.
- Inspect brackets and frame mounts before installation
- Recheck bolt torque after the first few trail runs
- Measure pinion angle with the vehicle at ride height
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER1417530 |
| Position | Rear upper |
| Kit type | Alpine short control arm kit |
| Lift range | 0 to 4.5 inch |
| Mounting | Factory control arm brackets |
| Bushings | Factory-style, maintenance-free |
Vehicle fitment
The kit fits the 2020–2026 Jeep Gladiator (JT) in the Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S models.
It fits Gladiator JT models. Confirm fit for your vehicle’s year, model, lift height and trim before ordering.
Installation notes
Rear upper arms set pinion angle and axle location, so check the pinion angle after the kit is installed.
What’s included
The Alpine rear upper short control arm kit.
