Overview
The TeraFlex 1151222 is a 3 inch lift kit with track bar for the 2007-2015 Jeep Wrangler JK. It includes 3 inch lift coil springs, a front adjustable track bar, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware.
The suspension geometry, roll center and load tuning are designed to keep the factory stability controls working within Jeep’s original parameters. The kit lifts 2.5 to 3.5 inches and allows tires up to 35 inches, provided aftermarket wheels have 4.5 inches of backspacing or less.
The kit does not include shocks. TeraFlex recommends driveshaft modifications, and says 2012 and newer JKs need exhaust spacers (part number 2610000) or another exhaust modification for driveshaft clearance.
Key features
- 3 inch coil spring lift kit; lift height range 2.5 to 3.5 inches
- Front adjustable track bar and front sway bar disconnects
- Rear sway bar links, rear track bar bracket and bump stops
- Fits tires up to 35 inches with aftermarket wheels of 4.5 inch backspacing or less
- Does not include shocks
- Driveshaft modifications recommended
Setting up after a lift
A coil spring lift raises the body and changes suspension geometry, so the vehicle will handle differently on pavement and on trail. Lift height changes the angle of the driveline and the length of the sway bar and brake components, which is why the driveshaft, brake lines and steering linkage all need checking after installation. An adjustable track bar helps set axle position, and an alignment after the work keeps tire wear even.
Shocks are often replaced at the same time as a lift because factory units were tuned for the original ride height. Matching shocks to the new height helps control the springs and reduces body roll and bounce. Bump stops and sway bar parts wear over time, so inspect them at each service and after rough use.
- Check driveshaft angles and clearance after installation
- Re-check torque on suspension fasteners after the first drives
- Inspect bump stops and sway bar links for wear
- Confirm steering and brake line clearance through full travel
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1151222 |
| UPC | 843885019794 |
| Part type | Suspension lift kit with track bar |
| Suspension type | Coil spring kit |
| Lift height range | 2.5 to 3.5 inches |
| Rear lift method | Coil springs |
| Maximum tire size | 35 inches |
| Wheel requirement | Aftermarket wheels with 4.5 inch backspacing or less |
| Shocks | Not included (front shocks: none) |
| Fit type | Direct fit |
| Other required parts | Exhaust spacers, part number 2610000, for 2012 and newer JKs (or another exhaust modification) |
Vehicle fitment
The manufacturer fitment list for the TeraFlex 1151222 includes:
- 2007–2015 Jeep Wrangler (JK) (70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X)
It fits the Jeep Wrangler JK through 2015. For 2016-2018 JKs or other generations such as the TJ or JL, confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Suspension, brake, steering and axle parts affect how the vehicle drives and stops, so professional installation is recommended.
Follow the instructions supplied with the kit, torque every fastener to its specified value, and support the vehicle on jack stands.
Re-check fasteners after the first miles of driving, have the alignment checked after any suspension work, and confirm that brake lines, hoses and driveshafts have enough clearance.
Check local regulations on vehicle height and lift before changing the ride height.

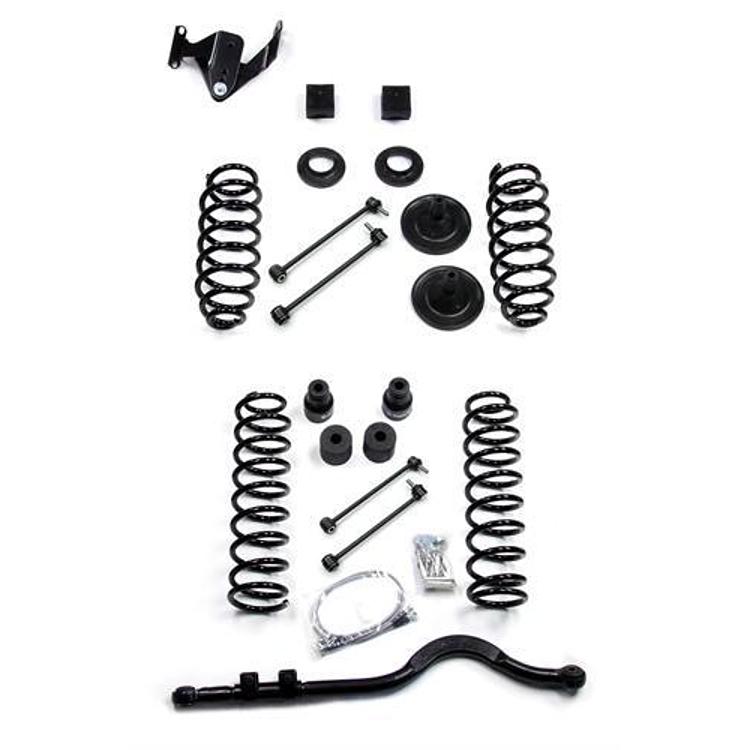

What’s included
3 inch lift coil springs, front adjustable track bar, front sway bar disconnects, rear sway bar links, rear track bar bracket, bump stops and all necessary hardware.
Not included: Shocks, driveshaft modifications, and exhaust spacers (part number 2610000).
