Overview
The TeraFlex JK 3 Inch Lift Suspension System, part number TER1156224, is a suspension kit for the four-door Jeep Wrangler JK Unlimited. It provides a 3 inch lift with a lift height range of 0 to 3.5 inches. The kit includes four preset Sport Flexarms, with front lower and rear upper arms, and a track bar.
The kit is engineered for drivability, with suspension geometry, roll center and load tuning set so the factory stability controls keep working within the limits Jeep set for the vehicle.
The rear uses coil springs, and no shocks are part of the kit. The Sport Flexarms locate the axles and control wheel movement, with front lower and rear upper positions in the kit.
Key features
- Four preset Sport Flexarms
- Front lower and rear upper Sport Flexarm positions
- Track bar included
- Rear coil springs
- Lift height range of 0 to 3.5 in.
- Fits 2007 to 2018 Wrangler JK Unlimited four-door models
Choosing a flexarm setup
Flexarms locate the axle and control how it moves, so the arm positions and bushings affect ride and steering. A kit with four arms gives you control at each corner, but the arms only work well when the axle is set in the correct position.
Coil springs and arms work as a pair. Once the arms change the ride height, the coil springs and shock length should be checked to make sure the suspension can still reach its full travel. Keep the old parts’ bushings in mind as well, since worn bushings can make the new arms feel loose.
After any arm change, have the driveline angles and alignment checked. Look for uneven tire wear, a wandering feel, or clunks over bumps, and address them before they become a larger repair.
- Check the arm bushings for wear
- Confirm the axle position after the arms are set
- Recheck the driveline angles after the install
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER1156224 |
| Lift | 3 in. (title) |
| Lift height range | 0 to 3.5 in. |
| Arms | Four Sport Flexarms |
| Rear springs | Coil springs |
| Shocks | None listed |
| Fit | Direct fit |
Vehicle fitment
The kit fits 2007 to 2018 Jeep Wrangler (JK) Unlimited four-door models, including 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.
Two-door Wrangler JK, TJ and JL models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Have the driveline angles and alignment checked before driving the Jeep far. Plan the install time around that check.
What’s included

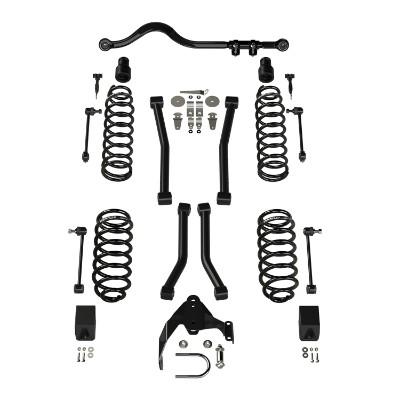

The 3 inch lift suspension system with four Sport Flexarms and the track bar. No shocks are included.
