Overview
The TeraFlex 1257390 is a 3 inch Elite LCG long arm lift for the 2007–2015 Jeep Wrangler (JK). It fits the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models. The system uses a long arm suspension with front and rear coil springs, along with front and rear track bars and speed bump stops.
The long upper and lower FlexArms work together for synchronized suspension movement and articulation without binding or limiting travel. The long arms reduce the extreme control arm angles that come with short arm lifts, which supports more suspension travel.
The correct control arm geometry reduces the front-to-back movement of the axle as it cycles, keeping the wheel centered in the wheel well through the travel. The FlexArm mounting points are designed for anti-squat at the rear and anti-dive at the front. The front and rear track bars give lateral stiffness to keep the axle centered under the vehicle.
The system is built on a factory style four-link layout with a track bar, aimed at on-road drivability and stable tracking through corners and at highway speeds. The kit is designed to keep the center of gravity low while preserving ground clearance and suspension articulation.
Key features
- 3 inch lift height range
- Long upper and lower FlexArms
- Front and rear coil springs
- Front and rear track bars
- Speed bump stops
- Mounting points designed for anti-squat at the rear and anti-dive at the front.
Long arm tradeoffs
Long arm systems trade some simplicity for a more controlled axle path. Because the arms are longer, the axle moves through a gentler arc, which tends to feel steadier on the highway than short arm setups. Installation takes more time, and the alignment and driveline angles need careful attention after the work is done.
Coil springs and track bars carry the load in this setup, so their mounts and bushings are worth checking at routine service. Shocks are not included, so choosing a length that suits the new ride height is a key step. Speed bump stops should be checked for cracks as the suspension settles.
- Shock length at ride height
- Track bar bushings
- Long arm bushing condition
- Alignment after installation
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1257390 |
| UPC | 843885020875 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Long arm |
| Rear lift method | Coil springs |
| Front shocks | None |
| Shocks | Not included |
Vehicle fitment
Covered trims: 70th Anniversary, Rubicon, Sahara, Sport, X, and their Unlimited counterparts, all 2007–2015 Jeep Wrangler (JK).
Wrangler model years outside 2007–2015 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A long arm system changes the control arm geometry and the mounting points of the axle, so the alignment, the caster and the driveline angles should be checked after installation. Shocks are not included, so confirm their length for the lift.

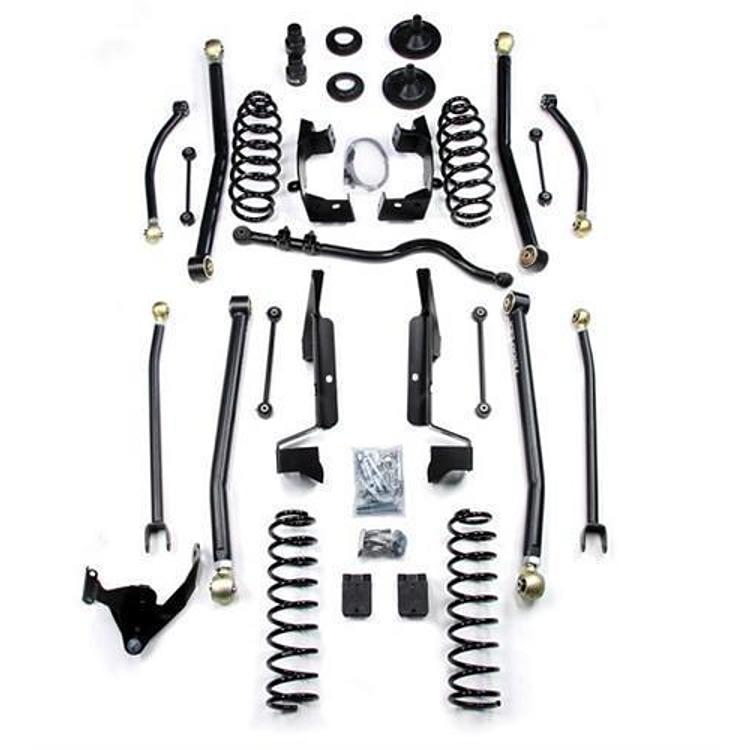

What’s included
The kit includes the long arm suspension components, front and rear coil springs, front and rear track bars and speed bump stops.
Not included: Shocks.
