Overview
The Pro Comp K3101BP is a 2.5-inch stage 1 coil spring lift with Pro Runner shocks. It fits 2007–2018 Jeep Wrangler (JK) models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, for both two-door and Unlimited bodies.
The kit uses coil springs at the front and the rear, and it includes Pro Runner shocks. The maximum tire size is 35×12.50, and the kit is the Pro Runner shock version of the K3101B.
Key features
- 2.5-inch stage 1 lift
- Front and rear coil springs
- Pro Runner shocks included
- Maximum tire size 35×12.50
Coil springs and driveline angles
A coil spring lift changes the angle of the driveshafts, and the steering and brake lines work at a new position once the body is raised. Those changes are routine with this type of lift, but they should be checked rather than assumed. Joints that run at a steep angle wear faster and can cause vibration.
When the kit is installed, seat the front springs evenly on both sides before the wheels go back on. Check the steering linkage for binding through full lock and confirm that the brake lines have room at the new height. Note any clicks or rubbing during the first drive and address them before heavier use.
- Confirm the front springs seat evenly on both sides
- Check steering and brake lines for clearance
- Inspect driveshaft universal joints after the first drive
- Look for rubbing at full suspension travel
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3101BP |
| UPC | 700007577951 |
| Lift | 2.5 inches, stage 1 |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Shocks | Pro Runner, included |
| Max tire size | 35×12.50 |
Vehicle fitment
It suits 2007–2018 Jeep Wrangler (JK) models in the trims named above, two-door and Unlimited alike. Other Wrangler generations fall outside this fit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A coil spring lift of this size changes the front alignment and the driveline angles, so have both checked after the kit is installed. Check the front coil springs seat evenly on both sides before the wheels are refitted, and check the steering and brake lines for clearance at the new ride height.
What’s included

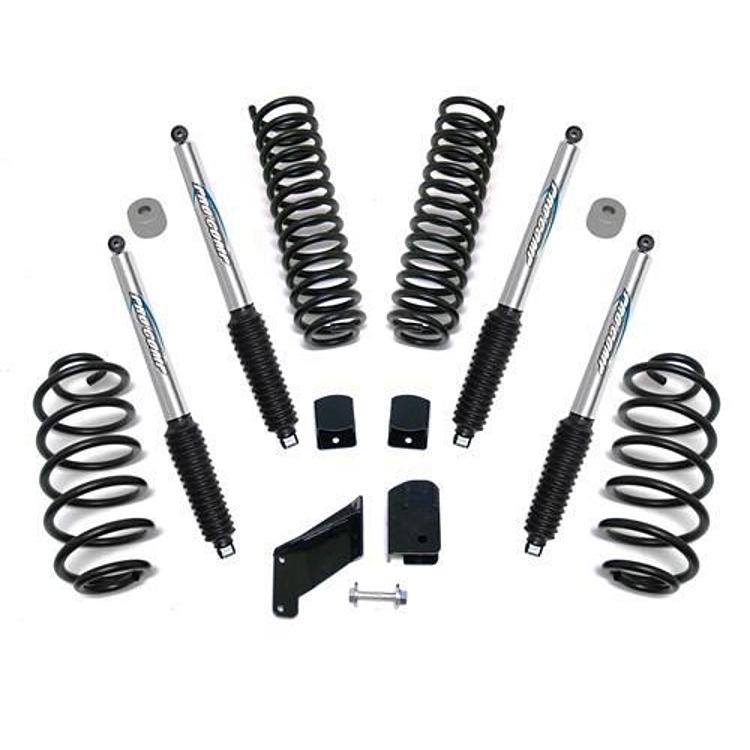

The kit includes front and rear coil springs and Pro Runner shocks.
