Overview
The TeraFlex LCG Pro suspension lift kit for coilovers, part number TER1149075, fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon and the 1997–2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X versions. It is a builder kit for front and rear coilover setups.
The kit includes all brackets, FlexArms and hardware. Coil springs, shock absorbers and bump stops are not part of the kit and must be bought separately for a complete system.
The product fields list radius arms as the rear lift component and a lift height range of 0 to 3.5 inches, with no shocks listed.
Key features
- Brackets and FlexArms included
- Hardware included
- Designed for front and rear coilover setups
- Radius arms as the rear lift component
- Listed lift height range of 0 to 3.5 inches
Choosing coilovers
A coilover builder kit lets you pick spring rates and shock lengths for the front and rear, so the setup can be tuned for a specific use. Matching the springs to vehicle weight and the planned tires avoids sag and bottoming. Choose each component with the other parts in mind rather than buying in isolation.
Radius arms and FlexArms carry the load at the axle, so inspect their bushings and welds at regular service. Bump stops limit suspension travel and should be checked for damage after heavy off-road use, since they protect the shocks and springs from harsh impacts.
- Confirm spring rate before buying coil springs
- Match shock eye-to-eye length to the mounting points
- Inspect bushings and bump stops during service
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER1149075 |
| Kit type | Coilover builder kit |
| Rear lift component | Radius arms |
| Springs included | No |
| Shocks included | No |
| Bump stops included | No |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X versions.
Wrangler JK and JL models are not on the list, and years outside the ranges above are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the front and rear coilovers are chosen separately, the spring rates and shock lengths should be matched to the lift and the vehicle before installation. Have the alignment checked afterward.
What’s included

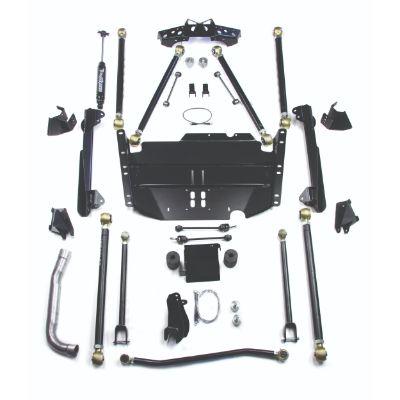

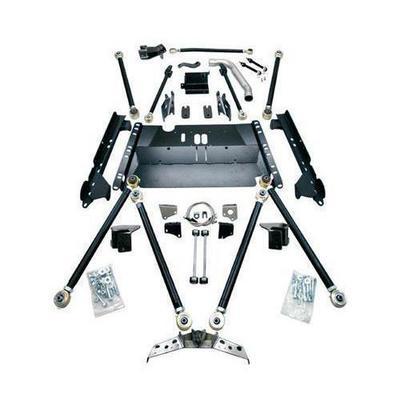

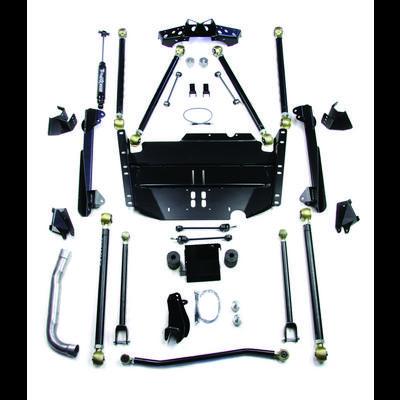

Brackets, FlexArms and hardware for the coilover builder setup.
Not included: coil springs, shock absorbers and bump stops.
