Overview
The SPOD Bantam BAN8-700-TSB-84 is the 84-inch battery cable version of the 8-circuit Bantam touchscreen control system. It switches and powers 12/24VDC auxiliary accessories from one unit. It is universal fit, so it is not tied to a single year, make or model.
The unit uses one ethernet cable into the cab for control, and accessory wiring runs at the unit instead of through the cab. No cutting, fished wires or tapping into the vehicle’s electrical system is needed. The compact footprint allows a wide choice of mounting positions, and the 84-inch cables reach a battery from a distant mounting spot.
Key features
- 8 circuits, expandable, for 12/24VDC accessories
- Single ethernet cable into the cab
- Over current, over heat, short circuit and reverse polarity protection
- Field collapse protection
- Low voltage detection cuts power to the system and attached accessories below 11.2VDC
- 16-position terminal block for ground and power
- 8-position input terminal block for outputs, accepting 3.3VDC to 24VDC inputs
- Removable dust cover with room for legends and port identifications
Choosing a mounting spot
Where a switch pod sits affects how easily accessory wires, the control cable and the battery cables can be routed. Pick a location that keeps the touchscreen visible from the driver seat, away from water entry points and moving parts. Measure the run to the battery before drilling anything, because long battery cables need clean, protected routing to avoid chafing.
Accessory loads such as lights, compressors and winches draw current differently, so group them on the output side with their own switches. Keep the control inputs separate from high-current wiring to reduce noise. Recheck the terminals and cable clamps after the first few trips, since vibration can loosen connections over time.
- Keep battery cable runs short where possible
- Protect cables where they pass through panels
- Label each output for quick identification
Specifications
| Brand | SPOD |
|---|---|
| Part number | BAN8-700-TSB-84 |
| UPC | 816482021361 |
| Circuits | 8, expandable |
| Accessory voltage | 12/24VDC |
| Control input range | 3.3VDC to 24VDC |
| Low voltage cutoff | 11.2VDC battery voltage |
| Battery cables | 84-inch |
| Touchscreen | Included |
| Terminal blocks | 16-position power and ground; 8-position control inputs |
Vehicle fitment
The Bantam is universal fit and is not vehicle-specific. The 84-inch battery cables are long enough for a mounting location farther from the battery, but plan the cable route for each vehicle.
Installation notes
Install the unit with the ethernet cable run to the cab and the accessory wiring terminated at the 16-position block. Use the 8-position block for control inputs. Disconnect the battery before connecting the 84-inch battery cables.
What’s included

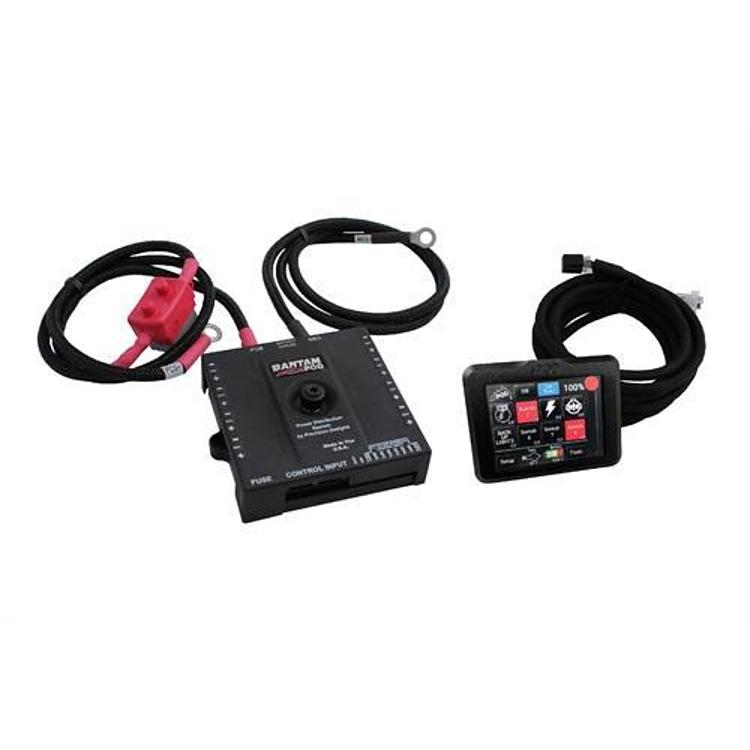

The kit is the Bantam control unit with touchscreen and 84-inch battery cables.
Not included: the 12/24VDC accessories connected to the outputs, along with their switches and wiring.
