Overview

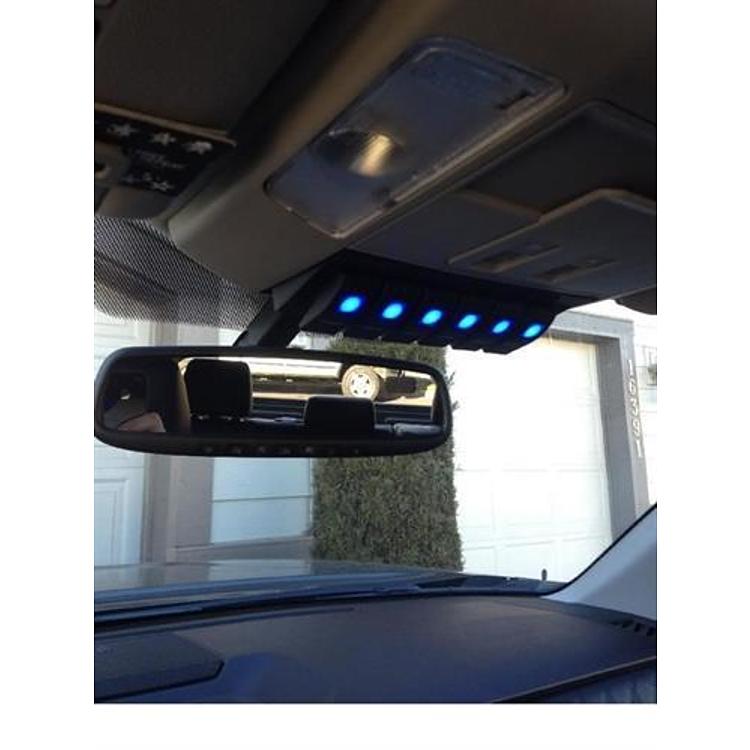

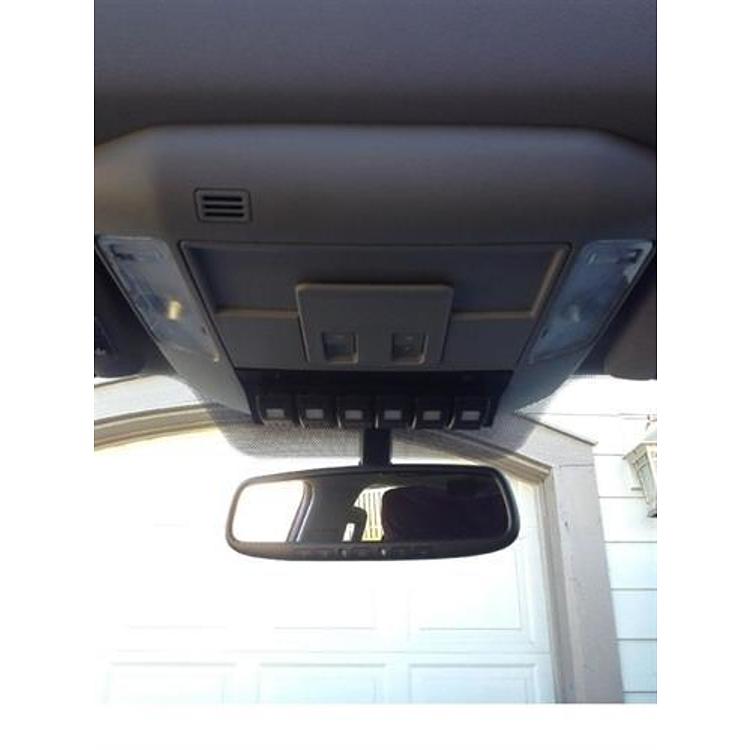

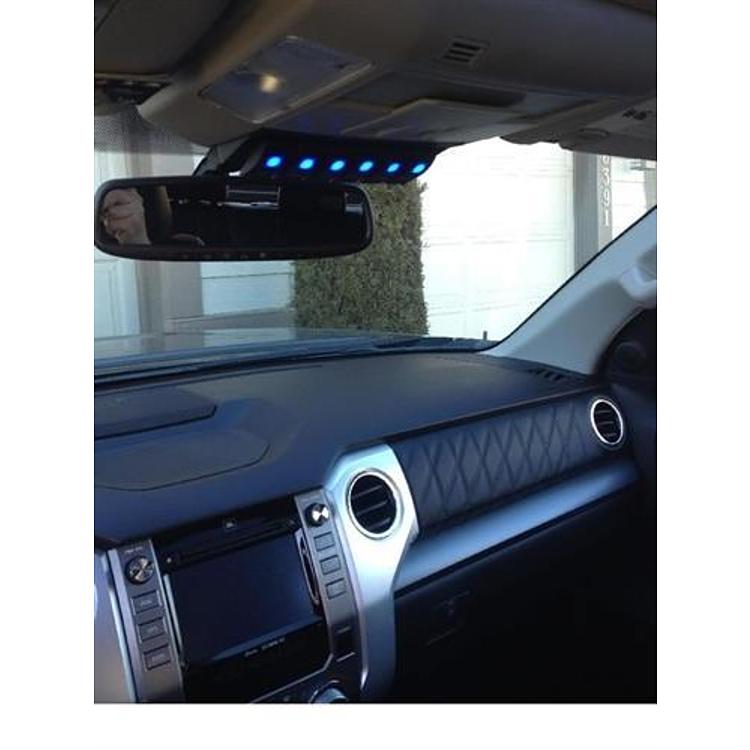

The SPOD 700-TUN is a 6 switch panel with sunglass holder replacement for the 2012 to 2016 Toyota Tundra. It mounts to the top of the fuse box and comes with six single white incandescent Contura rocker switches installed and pre-wired, so accessory switches can be added without running a new harness.
The panel is a plug and play option. Power comes through 8 gauge leads with crimped and soldered terminals for the battery, and a 12 position terminal block gives you attachment points for accessories. Six ATO style fuses are supplied, three 15 amp and three 30 amp.
Key features
- Replaces the overhead sunglass holder panel with a 6 switch panel
- Six single white incandescent Contura rocker switches, installed and pre-wired
- Arrives with switches installed and wired; no extra wiring required
- Mounts to the top of the fuse box
- 12 position terminal block for accessory attachment
- All wires wrapped in high temp abrasion resistant nylon braided sleeving

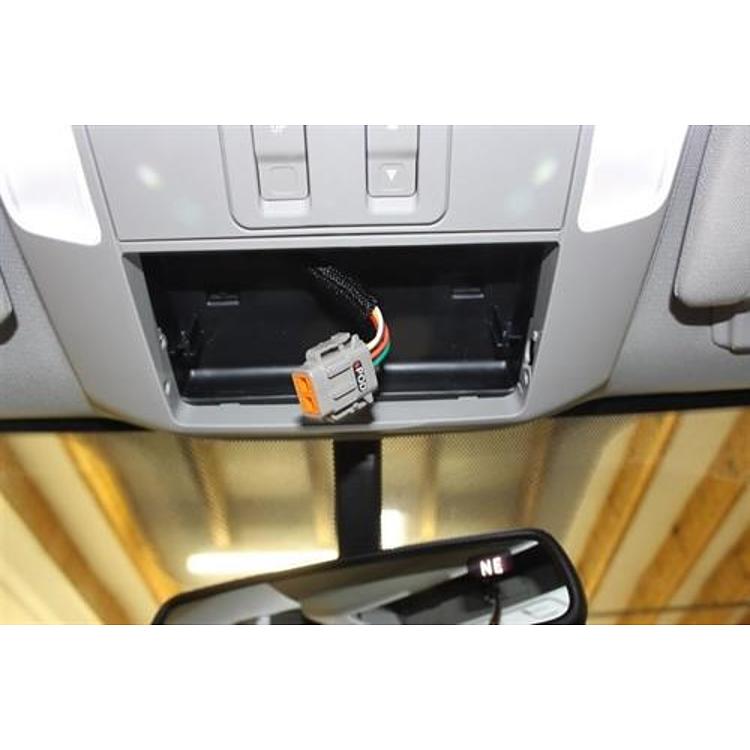

Swapping an overhead panel
Replacing an overhead sunglass holder with a switch panel moves control of accessories to a spot within easy reach. Before removing any trim, confirm which wires run behind the existing holder and whether any airbag or dome light connections are nearby. Work slowly around trim clips, since brittle plastic breaks easily when pried loose, and keep the removed parts together in case you need to reinstall them.
Accessory loads should be matched to the fuses, so decide which functions go on the 15 amp and which go on the 30 amp positions before wiring. Label each switch, keep sleeving intact, and check that the terminal block does not rest against trim where heat builds up. After the first drive, recheck the panel mounting and make sure the switches respond cleanly.
- Note wire routes before removing trim
- Match loads to fuse ratings
- Label each switch
Specifications
| Brand | SPOD |
|---|---|
| Part number | 700-TUN |
| UPC | 700007175981 |
| Switches | 6 single white incandescent Contura rocker switches |
| Terminal block | 12 position |
| Power leads | 8 gauge, crimped and soldered terminal for battery connection |
| Fuses | 6 ATO style automotive fuses: (3) 15 amp and (3) 30 amp |
| Sleeving | High temp abrasion resistant nylon braided |
Vehicle fitment
This panel fits the 2012 to 2016 Toyota Tundra. Confirm your vehicle’s year, model and trim before ordering.
Fit is limited to the 2012 to 2016 Tundra.
Installation notes
Some cutting and drilling is required, so the panel is best suited to an installer comfortable working around the fuse box area. Mounting brackets and hardware are included. Disconnect the battery first, then attach the 8 gauge power leads.

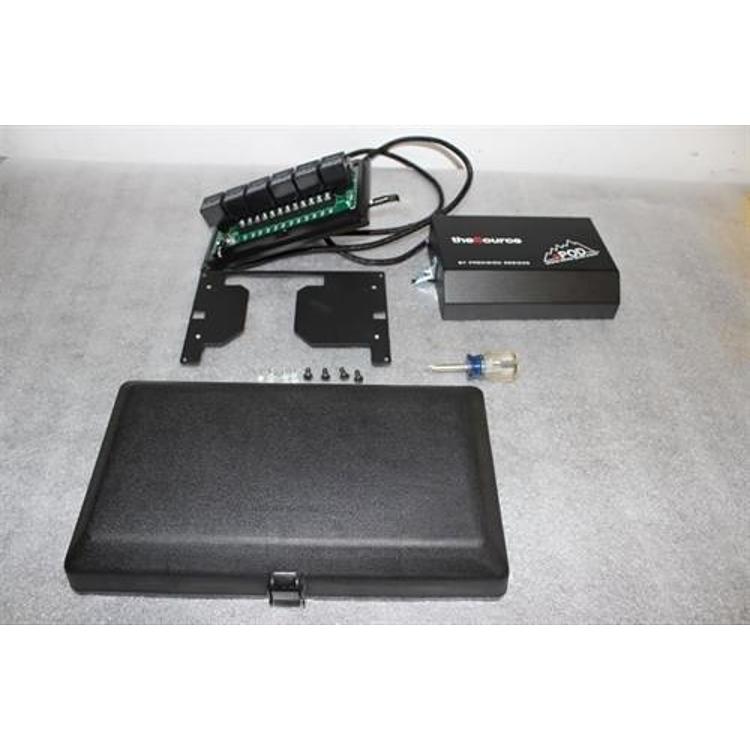

What’s included
Six pre-wired Contura rocker switches, a 12 position terminal block, 8 gauge power leads, six ATO fuses (three 15 amp and three 30 amp), mounting brackets and hardware.
