Overview
The SPOD 2007–2008 JK Wrangler 6 Switch System with Air Gauge, part 610-07, pairs the standard six-switch power block with an air gauge kit for the 2007 and 2008 Jeep Wrangler JK. The gauge reads 0 to 200 psi and includes quick-release Camozzi fittings and 10 feet of high-pressure connection line. The gauge arrives as a complete air gauge kit, so the fittings and line are part of the package.
The block is fused and relayed and arrives pre-wired. It holds six plug-in Bosch-style cube relays rated SPST 40 amp, six ATO fuses (three 15 amp and three 30 amp), and a 12-position terminal block for accessory connections. The low-voltage cutoff keeps enough battery charge for the vehicle to start. The complete air gauge kit is part of this version, not an optional extra.
Key features
- Air gauge kit rated 0–200 psi
- Quick-release Camozzi fittings and 10 feet of high-pressure line
- Six plug-in Bosch-style relays, SPST 40 amp
- Six ATO fuses: three 15 amp and three 30 amp
- Six diodes guarding LED lights from field collapse
- Inline 50 amp manual-reset breaker
- Integrated LVCO, off at 10.6 VDC and back on at 12.4 VDC
- Two red, two amber and two green switches
Keeping the gauge reading steady
An air gauge is most useful when its readings can be trusted, so keep the connection line and fittings free of dirt and grit. Dust in a quick-release fitting can prevent a clean seal and cause a misleading pressure reading. Wipe the fittings before connecting and check the gauge face for fogging or cracks as part of routine inspection.
A six-switch block with an air gauge is often installed with air tools, compressors or auxiliary air accessories in mind. Plan the line route so it does not rub against wiring or drop near hot components, and leave enough slack for the gauge to be moved without strain.
- Wipe quick-release fittings before each connection
- Check the gauge face for fogging or cracks
- Keep slack in the line for movement
Specifications
| Brand | SPOD |
|---|---|
| Part number | 610-07 |
| UPC | 700006892111 |
| Air gauge range | 0–200 psi |
| Gauge fittings | Quick-release Camozzi |
| Air line | 10 feet, high pressure |
| Relays | Six plug-in Bosch-style cube, SPST 40 amp |
| Fuses | Six ATO: three 15 amp, three 30 amp |
| Low-voltage cutoff | Off at 10.6 VDC, back on at 12.4 VDC |
| Switches | Two red, two amber, two green |
Vehicle fitment
This kit is for the 2007 and 2008 Jeep Wrangler (JK). Make sure your vehicle’s year, model and trim fall in that range before you buy.
Wrangler TJ and LJ models and JK years from 2009 onward are not covered by the stated years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
All wires are wrapped in high-temperature, abrasion-resistant nylon braided sleeving. The 8 gauge power leads to the battery use crimped and soldered terminals, and the LVCO fuse can be removed to bypass the cutoff.

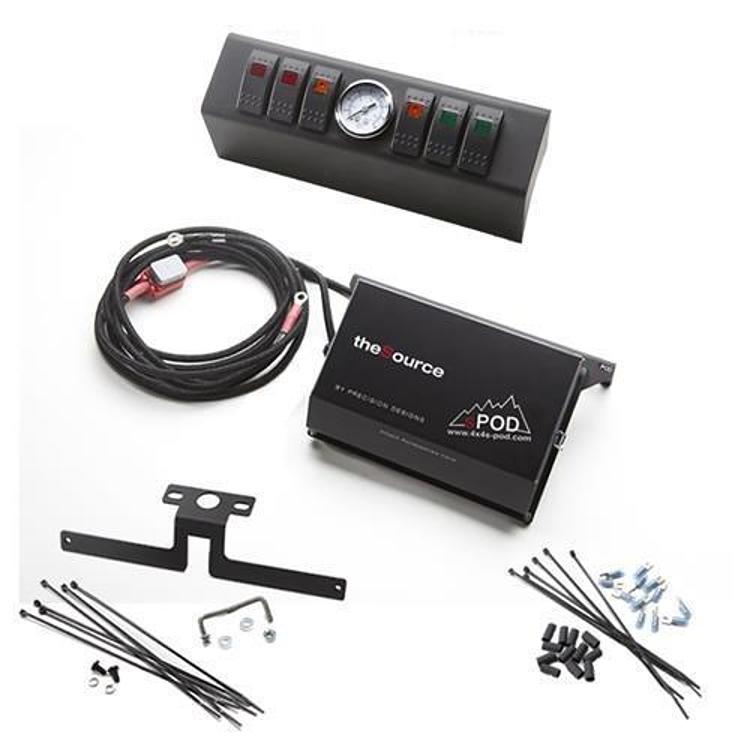

What’s included
The kit includes the power block, the air gauge with its Camozzi fittings and 10-foot line, six relays, six fuses, the 50 amp breaker, six diodes, the battery leads and the six switches.
