SPOD 8 Circuit SE System with Touch Screen and Bluetooth – 8-700-TSB-TJ

SPOD

Shop Jeep Wrangler TJ Switch Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eight-circuit SE touchscreen for Wrangler TJ and LJ, 1997–2006
  • Fits 2004–2006 Jeep Wrangler LJ Unlimited and Rubicon versions
  • Voltage, board temperature and per-switch amperage readings
  • Controls up to 32 circuits with a swipe-select touchscreen
  • SPOD part 8-700-TSB-TJ, UPC 700008512311

Description

Overview

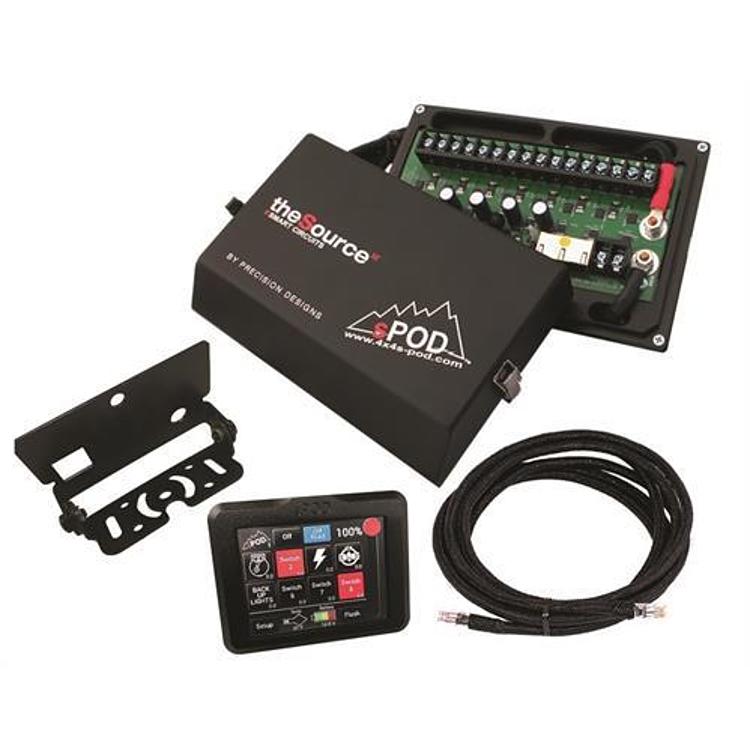

The SPOD 8 Circuit SE System with Touch Screen and Bluetooth, part 8-700-TSB-TJ, is a touchscreen switching system for the Jeep Wrangler TJ and LJ. It fits the 1997 to 2006 Wrangler TJ and the 2004 to 2006 Wrangler LJ, in the Unlimited and Rubicon versions for the LJ, and the TJ versions named in its fitment.

The control module is a 3.5-inch LED-backlit TFT LCD with 320 x 240 resolution, 16.7 million colors and a 180-degree viewing angle. It sits in a billet aluminum case on an articulating mount. A standard 10-foot Ethernet cable links the screen to the power distribution module, and Bluetooth LE is standard for customizing it.

The screen reports battery and alternator voltage and the board temperature, and each switch shows its amperage when used with the Bantam module. One touchscreen can control up to 32 circuits, and you move between them with a swipe.

Key features

  • Voltage feedback for battery and alternator
  • Board temperature shown on the screen
  • Per-switch current meter, working with the Bantam module only
  • Three lines of legend text and custom icons, set from a smartphone or tablet
  • On Road/Off Road function switch
  • Adjustable backlight timeout, dimming and automatic backlight off
  • Deep sleep after six hours of inactivity or with the engine not running
  • One-touch off, and a one-second hold to shut all circuits down
  • Automatic shutdown when the touchscreen is unplugged

Mounting and cable routing

A touchscreen mounted in the cab sees daily handling, so the mounting spot matters. Choose a place where the screen can be read without leaning and where it will not block airbags, controls or the view ahead. Measure the cable run from the power module to the mount before tightening the bracket, and leave some slack at the connector.

Once mounted, the screen works best when its cable is protected from pinching, heat and sun exposure. Keep the Ethernet line secured along existing trim or clips, and inspect the bracket after rough trails. Tightening the articulating joint occasionally keeps the screen from drifting out of position.

  • Measure the cable run before drilling or fixing the bracket
  • Keep the Ethernet line clear of airbags and controls
  • Recheck the mount after rough trails

Specifications

Brand SPOD
Part number 8-700-TSB-TJ
UPC 700008512311
Display 3.5-inch LED-backlit TFT LCD, 320 x 240
Colors 16.7 million
Housing Billet aluminum, articulating mount
Connection Standard 10-foot Ethernet cable
Wireless Bluetooth LE
Circuits Up to 32

Vehicle fitment

It fits the 1997 to 2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X versions, and the 2004 to 2006 Jeep Wrangler (LJ) in the Unlimited and Unlimited Rubicon versions.

Its coverage is TJ and LJ Wrangler models only, so JK and JL models are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The screen connects to the power distribution module only through the 10-foot Ethernet cable, so measure the run from the module to the mounting spot before you fix the articulating bracket.

What’s included

The touchscreen comes with its billet aluminum housing and articulating mount. The power distribution module and the air pressure gauge are not included.

SKU: POD8-700-TSB-TJ Category:

Specification

Shipping weight 6.50 lbs
Package dimensions 12.00 × 12.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this touchscreen fit a 1998 Wrangler TJ?

Yes. The TJ fits 1997 to 2006, so a 1998 model is inside that range. The covered versions include 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X.

Does it fit a 2005 Wrangler LJ Unlimited?

Yes. It fits 2004 to 2006 Wrangler LJ Unlimited and Unlimited Rubicon versions, so a 2005 LJ Unlimited is covered.

Is the power module included?

No. The power distribution module and the air pressure gauge are not included with the touchscreen. The screen links to the module with a standard 10-foot Ethernet cable.

Does the touchscreen have its own power connection?

The screen receives its connection through the Ethernet cable from the power module. It does not need a separate wiring run to the battery for the screen itself. Confirm the cable is seated fully at both ends before testing.
