Overview
The SPOD 8 Circuit SE Special Edition System with Blue LEDs, part 8-600-0915-LEDB, is a programmable eight-circuit switch system for the 2009 to 2016 Jeep Wrangler JK, including the Rubicon and Unlimited. It fits 2-door and 4-door models.

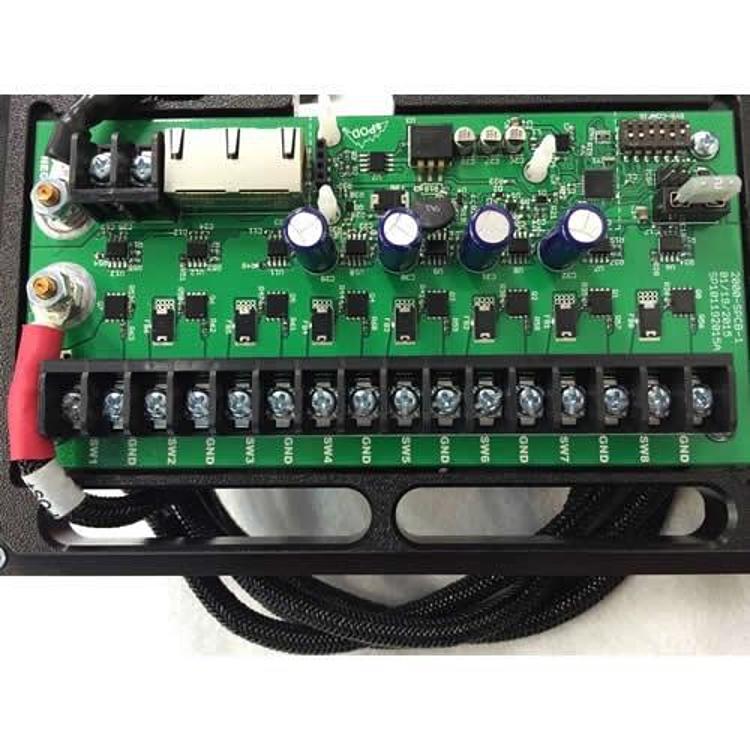

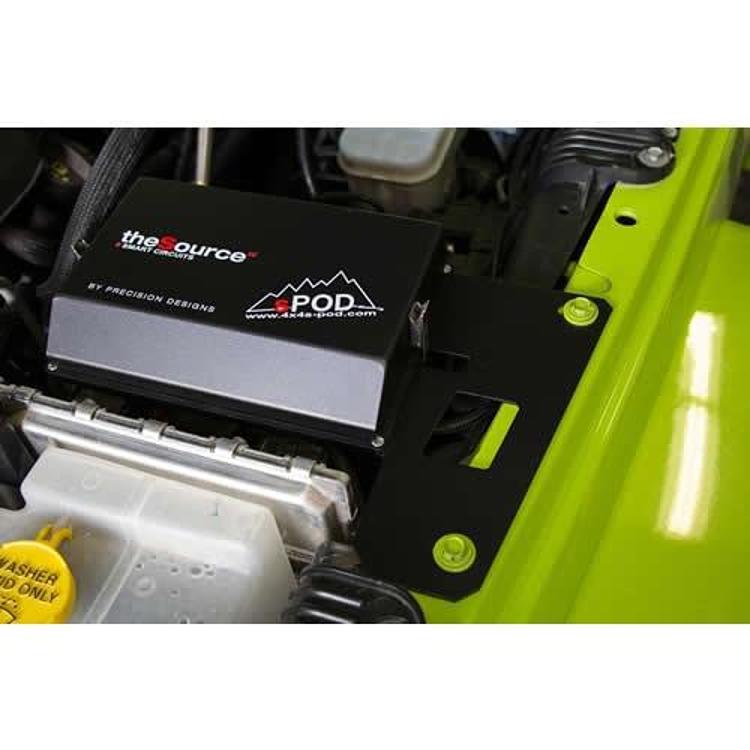

The system is built around the SourceSE power distribution module, a fully programmable, digital CAN-Bus controlled unit with a 100 amp maximum capacity. It is engineered and manufactured in the United States, and the installation hardware is specific to the vehicle.

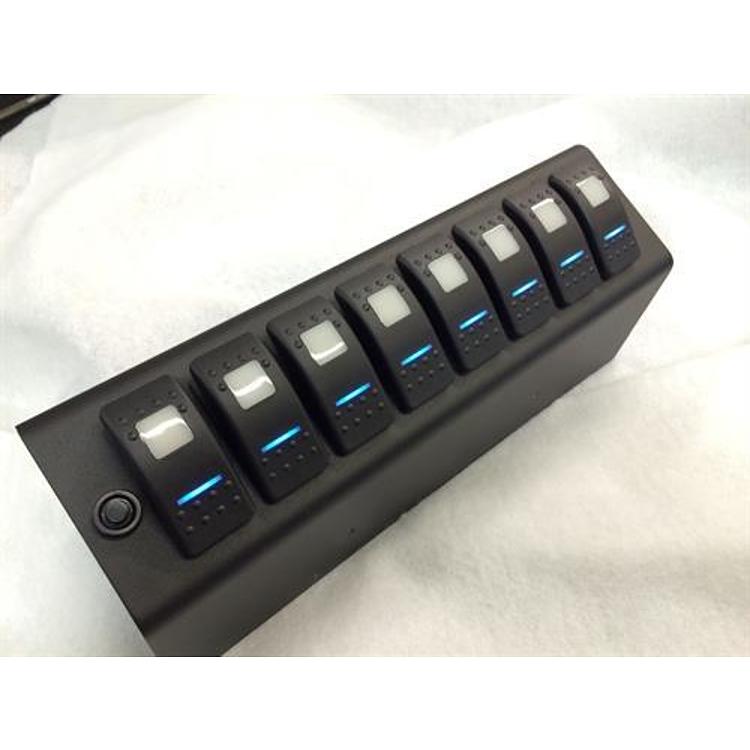

Each of the eight circuits is rated at 30 amps at 12.5 VDC, and the panel uses blue LED indicator lights. The lower pilot light has its own power control button for independent operation.
Key features
- Eight circuits rated 30 amps at 12.5 VDC each, with a terminal block for accessories
- Expandable, with a selectable daisy chain, to up to 32 circuits
- Low-voltage cutoff at 11.2 VDC with a two-minute delay before the SourceSE shuts down
- Blue LED indicator lights
- Each switch can be programmed for strobe or flash
- Current-sensing MOSFETs replace accessory fuses and protect from 1.5 to 30 amps automatically
- Switches 1 and 2 can be set to ignition-switched power or used as high-beam circuits
- Shield receptacle for an optional Bluetooth module
- Automatic shutdown when the panel is unplugged
Planning accessory circuits
A programmable switch panel is most useful when the accessory loads are planned before wiring begins. List each light, winch or auxiliary device, its current draw and whether it should run only with the ignition on. Group loads that are used together so the panel layout matches how you drive, and leave spare circuits for future additions.
Good wiring practice matters as much as the switches. Route cables away from heat, moving suspension parts and sharp edges, and use proper connectors and fusing for each load. After installation, test each circuit under load and recheck the connections after the first few trail trips.
- Plan the load list before wiring
- Group loads used together
- Route cables away from heat and moving parts
- Test each circuit under load
Specifications
| Brand | SPOD |
|---|---|
| Part number | 8-600-0915-LEDB |
| UPC | 700007270471 |
| Circuits | 8, expandable to 32 |
| Circuit rating | 30 amps at 12.5 VDC each |
| Protection range | 1.5 to 30 amps |
| Low-voltage cutoff | 11.2 VDC, two-minute delay |
| System capacity | 100 amp maximum |
| Panel connection | RJ-45 Ethernet, 10 feet |
| Panel lights | Blue LED |
Vehicle fitment
It fits 2009 to 2016 Jeep Wrangler JK models, including the Rubicon and Unlimited, in 2-door and 4-door models. Confirm your vehicle’s year, model and trim before ordering.
Wrangler JK years outside 2009 to 2016, including the 2007 and 2008 models, are not covered by the stated years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Switches 1 and 2 can be changed from accessory power to ignition-switched power with a DIP switch setting and a jumper wire tapped into a fuse that is live only when the ignition is on. The low-voltage cutoff can be turned off with the DIP switches, and a single ATM mini-style fuse handles LVCO protection and reset.
What’s included

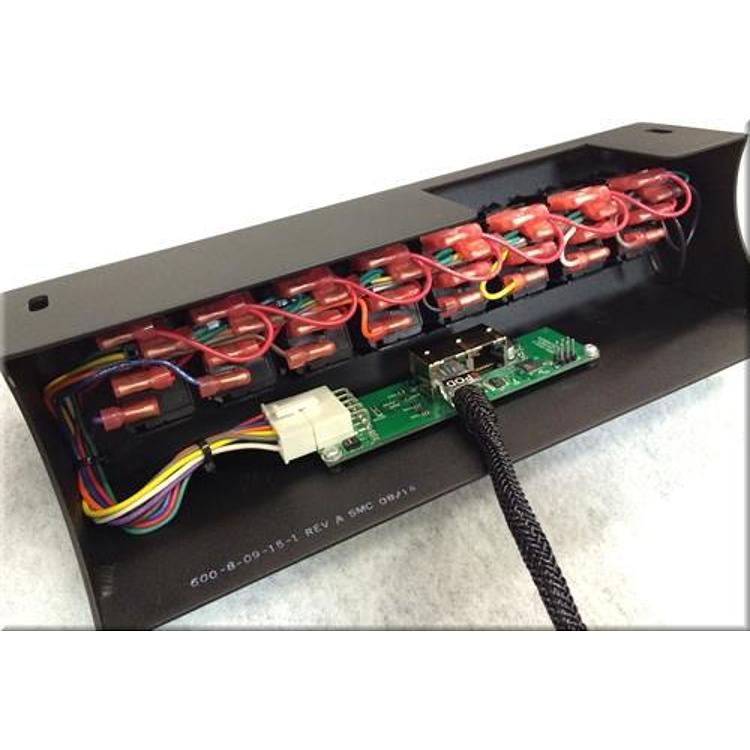

The kit includes the eight-switch panel, which connects to the SourceSE by a 10-foot RJ-45 Ethernet cable, and the OEM vehicle-specific installation hardware. The optional Bluetooth module is not included.
