Overview
The Skyjacker F17852K-M is an 8.5 inch suspension lift kit with M95 monotube shocks and an adjustable four-link rear. It fits the 2017 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims. The kit includes front coil springs, U-bolts, bump stop spacers, radius arms, lowering brackets and M9500 monotube shocks.
The rear uses a lift block, U-bolt and add-a-leaf arrangement, and this is a stage 1 kit at 8.5 inches. Other parts are needed to complete a full set, so review the contents before installation.
Key features
- 8.5 inch stage 1 lift
- Adjustable four-link rear
- Front coil springs and radius arms
- M95 monotube shocks
- Bump stop spacers and lowering brackets
Four-link rear basics
A four-link rear controls axle location with four links, replacing the leaf-spring location used on stock trucks. Its adjustability lets the installer set pinion angle and axle position, which helps driveline geometry at a large lift height. Radius arms carry braking and acceleration loads, so their bushings and mounts deserve a check after the first few drives.
Heavier trucks lifted this far place more load on shocks and the front end, so inspect ball joints, tie rod ends and bump stops periodically. Monotube shocks handle sustained use well, though they still need checks for leaks and mounting bolt torque. Pinion angle and driveshaft angles should be measured after any four-link adjustment, and vibration at highway speed is a common sign they need attention.
- Four-link bushings and mounts checked for wear
- Pinion angle measured after each adjustment
- Shock mounting hardware checked for torque
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | F17852K-M |
| UPC | 803696251448 |
| Lift height | 8.5 inch, stage 1 |
| Lift height range | 7 inch and up |
| Suspension type | 4-link |
| Rear lift method | Lift block, U-bolts and add-a-leaf |
| Front shocks | M95 |
| Shocks included | Yes |
| Warranty | Limited lifetime |
| Fitment type | Direct fit |
Vehicle fitment
The listed fitment is the 2017 Ford F-350 Super Duty (King Ranch, Lariat, Platinum, XL and XLT).
Other Super Duty years are not part of this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An 8.5 inch lift with a four-link rear and radius arms changes the axle location, the pinion angle and the driveline geometry, so the alignment and driveline angles must be set after installation. Other parts are required to complete the set, so review the kit contents before starting.
What’s included

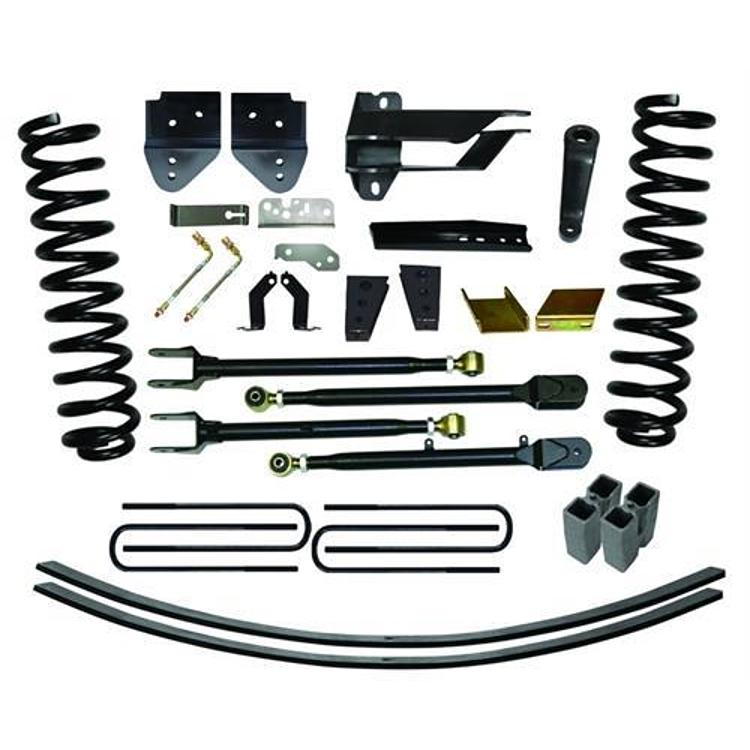

Front coil springs, U-bolts, bump stop spacers, radius arms, lowering brackets, M9500 monotube shocks and the adjustable four-link components.
Not included: Other parts needed to complete the set. Check the contents against your installation before starting.
