Rugged Ridge Boulder Aluminum Dana 44 Differential Cover – 16595.12

Rugged Ridge

$139.99Usually ships within 3 to 5 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 12:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Matte black aluminum cover for Dana 44 front and rear axles
  • A356-T6 cast aluminum body

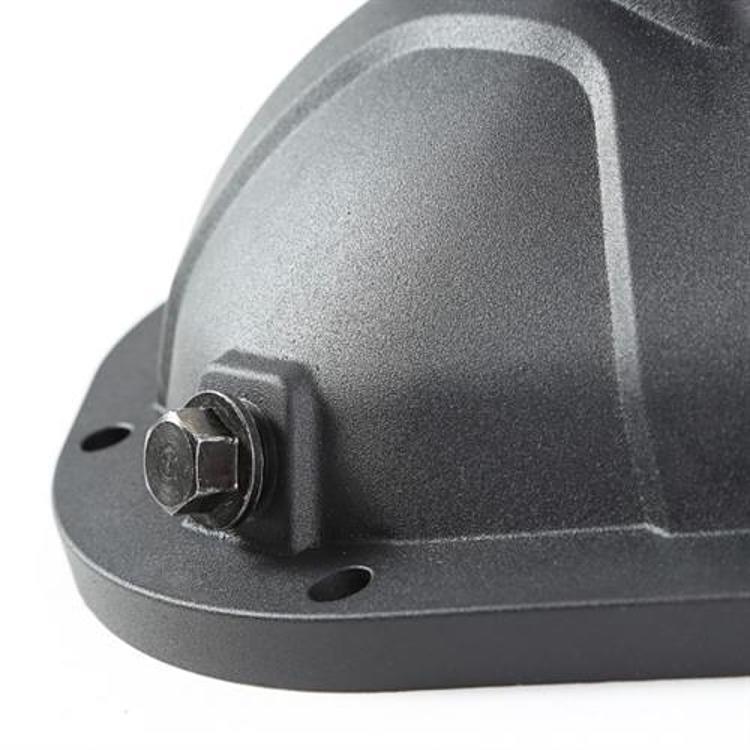

  • Magnetic drain plug and dipstick bolt
  • Precision machined sealing surface for gaskets or RTV
  • Part number 16595.12

Description

Overview

The Rugged Ridge Boulder differential cover (part 16595.12) is a matte black aluminum cover for Dana 44 front and rear axles. It is cast from A356-T6 aluminum, which Rugged Ridge says gives strong impact resistance, and it is meant to protect the differential from rocks and other off-road terrain while helping dissipate heat.

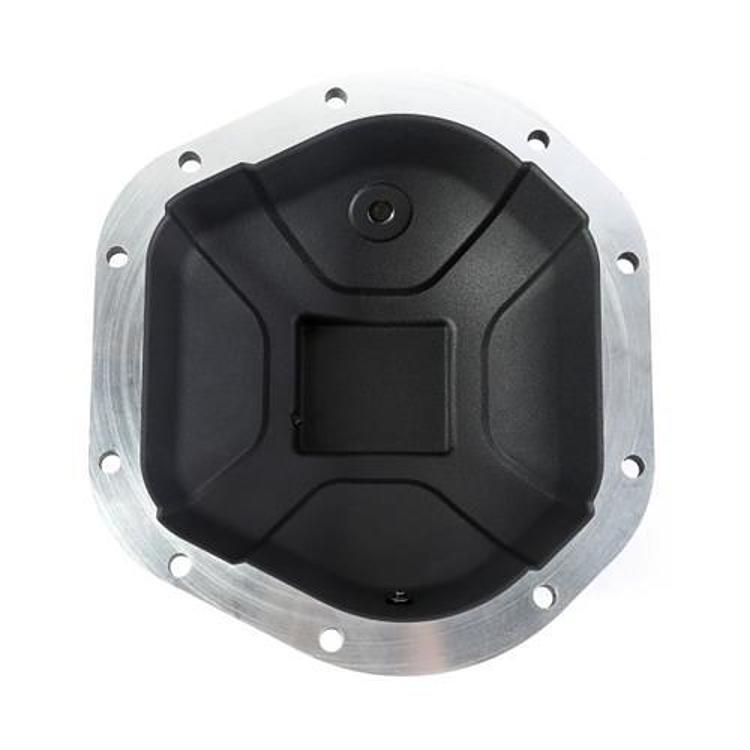

Its sealing surface is precision machined for gaskets or RTV sealant. A magnetic drain plug collects metal particles from gear oil, and the dipstick bolt helps avoid under or overfilling the differential. The matte black powder coated finish sits over an aluminum body that resists impact and helps the differential shed heat.

Key features

  • A356-T6 cast aluminum body
  • Matte black powder coat finish
  • Precision machined sealing surface
  • Magnetic drain plug
  • Dipstick bolt designed to prevent under or overfilling

Gear oil and cover maintenance

A differential cover is also a service point. Remove the cover and clean the sealing face before resealing, then use a fresh gasket or an even bead of RTV. Tighten the bolts in a crisscross pattern so the seal compresses evenly, and check for seepage after the first few drives.

When you change the gear oil, inspect the magnetic drain plug and wipe off any metal particles it has collected. Small amounts are normal, but heavy buildup suggests gear wear and calls for a closer look at the gears and bearings. Fill the differential to the level set by the dipstick bolt.

  • Sealing face: clean before resealing
  • Bolts: tighten in a crisscross pattern
  • Drain plug: check for metal particles at each oil change

Specifications

Brand Rugged Ridge
Part number 16595.12
UPC 804314279967
Position Front and rear
Axle type Dana 44
Material Aluminum, A356-T6 cast
Finish Matte black, powder coated
Oil capacity Standard capacity
Fitment Universal fit

Vehicle fitment

It is built for front and rear Dana 44 axles. Before installing, confirm the housing is a Dana 44 and that the bolt pattern matches your axle.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

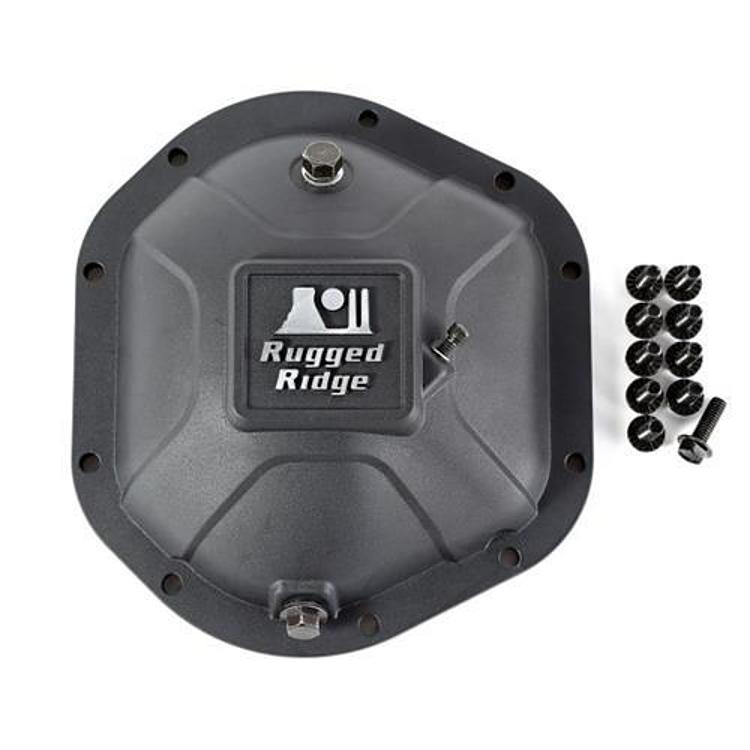

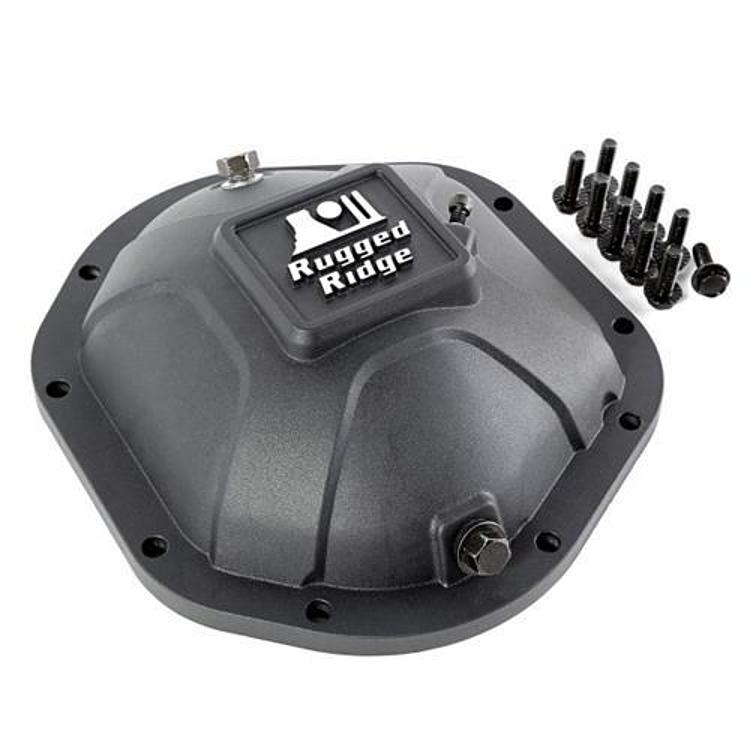

The matte black aluminum cover with magnetic drain plug and dipstick bolt.

SKU: RUG16595.12 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 10.00 × 10.00 × 4.00 in
brands

Questions & Answers

Does the Rugged Ridge 16595.12 cover fit a Dana 44 front axle?

Yes. The cover is made for Dana 44 front and rear axles, and its fitment is universal. Confirm the housing is a Dana 44 before installing it.

Can I seal this cover with RTV?

Yes, or with a gasket. The sealing surface is precision machined for either option, so the cover can be sealed without a particular type of sealant.

What is the body made from?

A356-T6 cast aluminum, which Rugged Ridge describes as having strong impact resistance. The cover is matte black with a powder coated finish.

Does the cover have a magnetic drain plug?

Yes. The magnetic drain plug collects metal particles that can accumulate in gear oil, and the dipstick bolt helps owners avoid under or overfilling the differential.

How often should I check the magnetic drain plug?

Check it whenever you change the gear oil. Wipe off any metal particles it has collected. Heavy buildup can point to gear wear, so inspect the gears when you see it.
