Rubicon Express Super-Ride PTMEG Weld in Bushing Kit (Black) – RE3764

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PTMEG Super-Ride bushing rated at 88A durometer
  • Weld-in kit: stamped end ring, one bushing and two metal sleeves
  • End ring 2 in OD by 1.5 in wide; sleeves 2 in overall length
  • Accepts a 10mm bolt
  • Part RE3764, UPC 614901440690, black

Description

Overview

The Rubicon Express RE3764 is a black weld-in control arm bushing kit built around a PTMEG Super-Ride bushing. PTMEG is polytetramethylene ether glycol, and Rubicon Express rates this bushing at 88A durometer. The kit includes a stamped end ring, one bushing and two metal sleeves, and it accepts a 10mm bolt.

The bushing is built to keep articulation while holding up to trail use. The sleeves and bushing can be lubricated and serviced after installation, and the design aims for control and durability.

Key features

  • PTMEG Super-Ride bushing rated at 88A durometer
  • Stamped end ring for weld-in installation
  • Two metal sleeves, 2 in overall length
  • Accepts a 10mm bolt
  • Built to flex through articulation and to be serviced on the trail
  • The bushings are covered against failure by a lifetime warranty.

Welding and end ring fit

The end ring sets the position of the bushing in the arm, so check its fit before any welding starts. Tack the ring in place and confirm the bushing and sleeves slide in without binding. Welding distorts metal, so a final check of alignment after the weld cools helps avoid a bushing that sits off-center.

Weld-in joints take cyclic loads through full articulation. Inspect the welds periodically for hairline cracks, especially after heavy off-road use. Keep the sleeves and bushing greased so they can be serviced later without removing the end ring.

  • Test-fit the end ring before final welding
  • Confirm the bushing and sleeves slide in without binding
  • Check the weld for hairline cracks after heavy use
  • Keep the sleeves greased for future service

Specifications

Brand Rubicon Express
Part number RE3764
UPC 614901440690
Color Black
Bushing material PTMEG (polytetramethylene ether glycol)
Bushing durometer 88A
End ring Stamped, 2 in OD by 1.5 in wide
Sleeves Two metal, 2 in overall length
Bolt size Accepts a 10mm bolt
Installation style Weld-in

Vehicle fitment

It is a weld-in control arm bushing that has to suit the arm it is welded into. Match the kit to that arm, and confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The stamped end ring is welded into the control arm, so welding is part of the installation. Have a welder experienced with the arm material weld the end ring, because a weak weld can fail under articulation loads. The sleeves and bushing can be maintained after installation.

What’s included

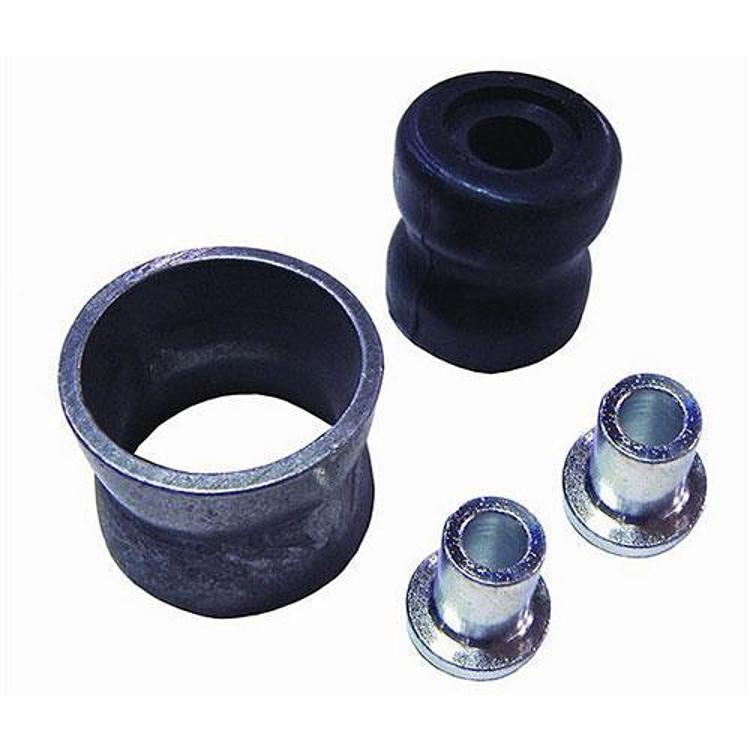

One stamped end ring, one Super-Ride PTMEG bushing and two metal sleeves.

Not included: the control arm that the end ring is welded into.

SKU: R/ERE3764 Category:

Specification

Shipping weight 0.70 lbs
Package dimensions 4.50 × 2.00 × 2.00 in
brands

Questions & Answers

Is the RE3764 a weld-in kit?

Yes. The stamped end ring is welded into the control arm, and the kit includes one PTMEG bushing and two metal sleeves. The control arm itself is not part of the kit and must be supplied separately.

What sleeve length and bolt size does it use?

The two metal sleeves are 2 in overall length, and the kit accepts a 10mm bolt. The end ring measures 2 in OD and 1.5 in wide.

What is PTMEG?

PTMEG is polytetramethylene ether glycol, a bushing material. This bushing is rated at 88A durometer and is designed for durability and articulation.

Does the bushing have a warranty?

Yes, the Super-Ride bushings are covered against failure by a lifetime warranty. Review the warranty terms before making a claim.

Can a weld-in bushing be removed later without cutting the arm?

Usually not cleanly. A welded end ring is fused to the arm, so removal typically means cutting or grinding it out. Plan the position carefully and have a welder check the joint before the arm goes into service.
