Rough Country 5″ GM NTD Suspension Lift Kit with Vertex Reservoir Shocks – 10250

Rough Country

$3,299.95In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-to-7-inch GM non-torsion drop lift for 2020–2026 2500 HD trucks
  • Front and rear crossmembers laser cut from US steel
  • N3 shocks, lifted knuckles and a differential skid plate
  • Clearance for up to 37-inch tires
  • Does not fit dually or Magnetic Ride Control models

Description

Overview

The Rough Country GM non-torsion drop suspension lift kit, part number R/C10250, fits the 2020–2026 Chevrolet Silverado 2500 HD and the 2020–2026 GMC Sierra 2500 HD. The lift height is 5 to 7 inches, so confirm the exact height and shock model against the kit contents before ordering.

The non-torsion drop design keeps the components tucked and flush underneath. The added ride height allows tires up to 37 inches, and no exposed torsion bars are left in view.

The front and rear crossmembers are laser cut from US steel and carry an RC logo at the front. Each kit includes lifted knuckles, a differential skid plate and a set of N3 nitrogen-charged shock absorbers, which are designed for a smooth ride on and off road.

Key features

  • Non-torsion drop design that keeps the components tucked
  • Front and rear crossmembers laser cut from US steel
  • Lifted knuckles
  • Differential skid plate
  • N3 nitrogen-charged shocks
  • Rear anti-wrap blocks to help prevent axle wrap

Choosing a lift height

Lift height affects more than how the truck looks. A taller setup changes the angles of the driveshaft, the steering and the brake lines, so the right height depends on how the truck is used. Daily driving and towing place different loads on the suspension, and a height chosen for appearance alone may need more driveline work than expected.

Plan the tire and wheel package together with the lift. Tire size, wheel offset and backspacing decide whether a larger tire clears the body and the front suspension at full travel. Once the kit is in, recheck steering, braking and driveline angles, and look for rubbing on the fender liners after the first off-road run.

  • Match tire size to the clearance the kit provides
  • Check wheel offset before buying tires
  • Recheck the driveshaft angle after any height change

Specifications

Brand Rough Country
Part number R/C10250
Lift size 5 to 7 inches
Drop design Non-torsion drop
Crossmembers Laser cut from US steel
Shock type N3 nitrogen-charged
Tire clearance Up to 37 inches
Fitment type Direct fit

Vehicle fitment

It fits the 2020–2026 Chevrolet Silverado 2500 HD in Custom, High Country, LT, LTZ and WT versions, and the 2020–2026 GMC Sierra 2500 HD in AT4, Base, Denali, SLE and SLT versions.

It does not fit dually models or models with Magnetic Ride Control, and trucks with factory wheels need a wheel change. Gas models may need exhaust modification for driveshaft clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit needs the exhaust checked for driveshaft clearance on gas models. The rear anti-wrap blocks help control axle wrap under the torque of a 3/4-ton truck, and the alignment should be set after installation.

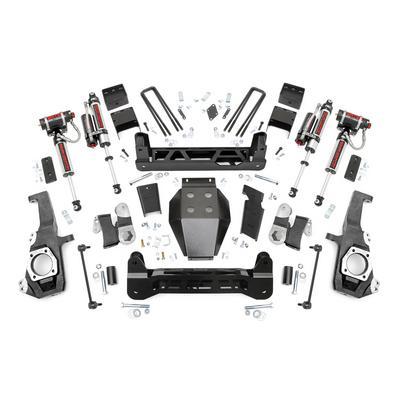

What’s included

Front and rear crossmembers, lifted knuckles, a differential skid plate, N3 nitrogen-charged shocks and the rear anti-wrap blocks.

SKU: R/C10250 Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2020–2026Custom, High Country, LT, LTZ, WT
GMC Sierra 2500 HD2020–2026AT4, Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country R/C10250 fit a 2021 GMC Sierra 2500 HD?

Yes. It fits 2020–2026 GMC Sierra 2500 HD models, which includes 2021. Confirm the exact trim and drive type before buying this kit, since it is a direct fit for that truck.

Will this kit work with factory wheels?

No. The kit does not work with factory wheels, so compatible aftermarket wheels must be fitted before installation. Wheel backspacing and offset should be checked against the truck first.

Does the kit fit a dually truck?

No. The kit does not fit dually models, so it is made for single-rear-wheel trucks only. Check your rear wheel setup against the kit before buying, since a dually cannot use it.

Should steering and brakes be checked after a truck lift?

Yes. Raising the truck changes steering geometry and brake line length, so inspect the steering components, brake hoses and driveshaft after installation and again after the first off-road use.
