Overview
The Rough Country 2.5-inch suspension lift kit, part number R/C687, fits the 2008–2012 Jeep Liberty (KK). It adds a leveling lift with front upper strut spacers and rear coil spacers, giving the vehicle a more aggressive look and additional ground clearance.
The lift provides enough height to run up to 265/70R16 tires with factory backspacing. The installation is straightforward, and the kit levels the vehicle from front to rear.
Upper strut spacers raise the front by sitting between the strut tower mount and the strut, and rear coil spacers sit on top of the rear coil springs to add height. Tire clearance depends on wheel backspacing as well as lift height, which is why the brand specifies factory backspacing for the 265/70R16 size.
Key features
- Front upper strut spacers
- Rear coil spacers
- Clearance for up to 265/70R16 tires with factory backspacing
- Increased ground clearance
- Levels the vehicle from front to rear
- Listed lift height range of 0 to 3.5 inches
Before you lift
A spacer lift raises the vehicle without replacing the suspension geometry, so the existing control arms, springs and axles stay in place. Front upper strut spacers change the strut’s top mounting point, while coil spacers add height at the rear. Because the springs and struts carry more of the vehicle’s weight at a higher position, check the steering and brake lines for stretch after installation.
Tire clearance is the main limit on a lift like this. Wheel backspacing, tire width and fender trimming all affect whether a tire rubs at full turn or at full compression. Before buying larger tires, check the offset of your current wheels and the rubbing points on the fenders. Re-check the strut and spacer hardware after the first few trail runs, since spacers can settle under load.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C687 |
| Lift size | 2.5 inches |
| Suspension type | Lift kit |
| Rear lift method | Block or spacer |
| Rear lift component | Spacer |
| Tire size | 265/70R16 with factory backspacing |
| Shocks included | No |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2008–2012 Jeep Liberty (KK), including the Jet, Limited, Renegade and Sport versions.
Other Liberty model years, including the 2002–2007 KJ generation, and other Jeep models are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
What’s included

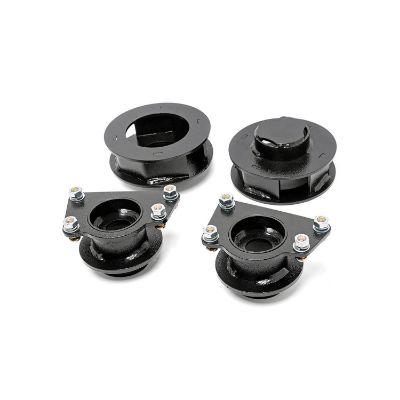

Front upper strut spacers, rear coil spacers and hardware.
Not included: shock absorbers.
