Overview
The Rough Country 4-inch GM suspension lift kit, part number R/C27531, fits the 2019–2022 Chevrolet Silverado 1500 and GMC Sierra 1500 models, including the Trail Boss and AT4 versions. It lifts and levels the truck for clearance to run 35×12.50 tires on 10-inch wide wheels.
The kit includes front and rear crossmembers and a skid plate, along with cast steel knuckles. It keeps the stock track width, so a wheel up to 10 inches wide with 4.5 inches of backspacing can be used. The rear N3 shock is part of the kit.
Cast steel knuckles carry the front hub and brake, and the lift changes their angle, so the front alignment should be set after installation.
The kit keeps the stock track width, which is why wheel backspacing matters. Front and rear crossmembers strengthen the frame where the lift loads it, and the skid plate adds protection underneath.
Key features
- 4-inch lift that levels the truck
- Front and rear crossmembers and a skid plate
- Cast steel knuckles
- Stock track width retained
- Clearance for 35×12.50 tires on 10-inch wide wheels
- Listed lift height range of 4 to 5.5 inches
Wheels and fitment checks
Wheel backspacing decides whether a larger tire clears the inner fender and suspension parts. With the track width kept at stock, the wheel and tire combination matters more than the lift height itself. Test fit the wheels with the tires mounted before the kit goes on, and recheck clearance at full steering lock after installation.
Front and rear crossmembers add strength where the lift loads the frame, and the skid plate covers the underside. Cast steel knuckles carry the front hub and brake, so the front alignment should be set once the work is complete. Inspect the rear N3 shock, the crossmember bolts and the skid plate fasteners after the first trail outings, since new hardware can settle under load.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C27531 |
| Lift kit | 4 inches |
| Knuckles | Cast steel |
| Rear shocks | N3 |
| Tire size | 35×12.50 |
| Wheel width | Up to 10 inches |
| Wheel backspacing | 4.5 inches |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2020–2021 Chevrolet Silverado 1500, the 2022 Chevrolet Silverado 1500 LTD, the 2019–2021 GMC Sierra 1500 and the 2022 GMC Sierra 1500 Limited.
GMC Denali models with Magnetic Ride Control, 2019 Classic models on the 2018 body style and standard models are excluded. Factory wheels are not compatible, so 20-inch or larger aftermarket wheels are required.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Cutting and drilling are required for installation. Test fit the wheels before installing the kit, and confirm the 4.5-inch backspacing requirement is met.

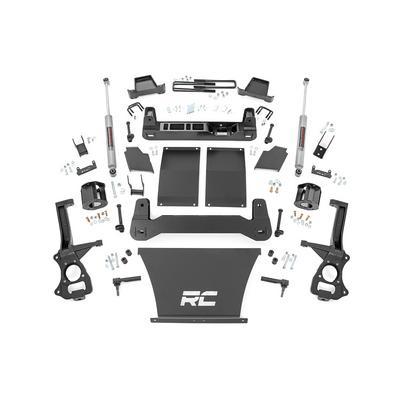

What’s included
Front and rear crossmembers, a skid plate, cast steel knuckles and the rear N3 shock.
