Overview
The RCV Axles RCVJL-SK is a tube seal kit for the Dana 44 axle tubes on the Jeep Wrangler JL, made for 2018 models. It keeps dirt and grime out of the axle tubes.

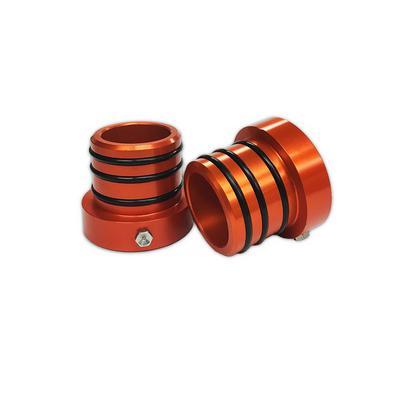

The kit contains two re-buildable tube seals. Each seal has three O-ring seals on the outer side and two washer seals on the inner side. Each seal can be rebuilt, and the seals are anodized orange.
Key features
- Two re-buildable tube seals
- Three outer O-ring seals and two inner washer seals on each seal
- Zerk fitting on the sides for injecting grease
- Orange anodized finish
- Made for Dana 44 axle tubes on the JL
Grease and seal care
Tube seals keep grit and water out of the axle tubes, so their condition affects how cleanly the axle runs over time. Grease pushed in through the zerk fittings helps flush out old grease and water, and it keeps the internal parts working freely. Regular inspection is a simple habit that can prevent bigger repairs later in the axle’s life.
Rebuilding the seals is a good time to inspect the O-rings and washer seals. Look for hardened, cracked or flattened rings, and replace any that have lost their shape. Clean old grease off the fittings before greasing, and watch for leaks at the tube joints after trail runs, since water crossings and mud test seals more than normal driving does.
- Grease the zerk fittings after water crossings
- Replace hardened O-rings
- Check for leaks at the tube joints
Specifications
| Brand | RCV Axles |
|---|---|
| Part number | RCVJL-SK |
| Axle | Dana 44 axle tubes, Jeep Wrangler JL |
| Included | Two re-buildable tube seals |
| Seals per tube | Three outer O-rings and two inner washer seals |
| Finish | Orange anodized |
Vehicle fitment
It fits the 2018 Jeep Wrangler (JL) Rubicon and Sport trims, in 2-door and Unlimited 4-door forms, plus the Unlimited Sahara and Unlimited Sport S trims.
Other JL model years and the Wrangler JK are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
These tube seals do not fit over the inner splines of the JL RCV axle sets. To fit them, disengage the inner shafts from the CV joints and slide the tube seals on from the other end.
What’s included
Two re-buildable tube seals, each with three outer O-ring seals and two inner washer seals.
