Overview

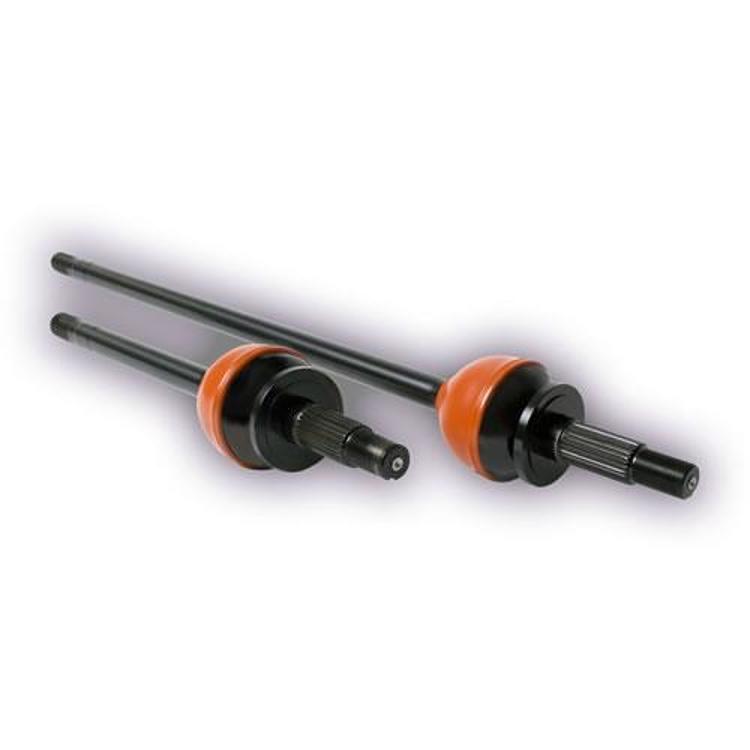

The RCV Axles Ultimate CVJ30 is a Dana 30 front CV axle set that replaces the U-joint axle shafts on Jeep YJ, TJ, LJ and XJ models with a constant velocity design.
The Ultimate design replaces weak Dana 30 U-joint shafts with a high-strength constant velocity design. It suits Jeep owners running larger tires or more power, and the joints are built to carry power through full articulation, where U-joints are more prone to binding.
Key features
- Constant velocity design in place of the factory U-joint shafts
- Fits the Dana 30 front axle with 27-spline inner and outer shafts
- Driver side inner axle length 16.5 inches, passenger side inner 32.31 inches, outer stub 6.11 inches
- Black oxide coating is standard
- The constant velocity design eliminates U-joint binding, so power transfers smoothly to the ground.
- Covered by a No Questions Asked limited lifetime warranty from RCV, which RCV says is void if running over 35 inch tires
Care and inspection after install
Constant velocity joints last longest when the boots stay intact. The boot holds the joint grease in and keeps dirt and water out, so a split boot is the first sign to act on. Inspect both boots at each oil change or tire rotation, and look for grease spatter on the inside of the wheel, which points to a leak.
Because the set replaces both front shafts, the hub and axle hardware should be checked during the swap. Clean the splines before sliding the shafts in, and torque the hardware to the value in the installation instructions. After the first trail runs, re-check the hardware, since off-road loads can settle the fasteners.
- Look for cracked or split CV boots
- Check for grease on the inside of the wheel
- Listen for clicking when turning sharply
- Re-check hub and axle hardware after the first trail runs
Specifications
The CVJ30 is a cV axle set (replacement axle shafts) for the Dana 30 front, standard axle. Every figure in the table below is the manufacturer value for the CVJ30.
| Brand | RCV Axles |
|---|---|
| Part number | CVJ30 |
| UPC | 685653865161 |
| Part type | CV axle set (replacement axle shafts) |
| Axle | Dana 30 front, standard |
| Axle shaft location | Driver and passenger side |
| Inner spline | 27 splines |
| Outer spline | 27 splines |
| Driver side inner axle length | 16.5 inches |
| Passenger side inner axle length | 32.31 inches |
| Outer stub axle length | 6.11 inches |
| Coating | Black oxide, standard |
| Warranty | Limited lifetime warranty from RCV, with no-questions-asked coverage |
Vehicle fitment
It replaces the Dana 30 U-joint axle shafts of a Jeep YJ, TJ, LJ and XJ. By chassis code that means the 1987-1995 Wrangler (YJ), 1997-2006 Wrangler (TJ), 2004-2006 Wrangler (LJ) and 1984-2001 Cherokee (XJ).
Match the CVJ30 against your old shaft for spline count, length and driver or passenger side before installing it.
It is made for Jeep YJ, TJ, LJ and XJ models with a Dana 30 front axle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The set comes with an installation tool and instructions, and RCV says installation hardware and synthetic moly grease are included. A CV axle swap replaces both front axle shafts, so the Dana 30 front axle housing and spline count should be confirmed before the factory shafts come out.
What’s included
- Driver and passenger side CV axle shafts
- SST seals and an installation tool
- Installation instructions
- Synthetic moly grease
- Installation hardware
