Overview

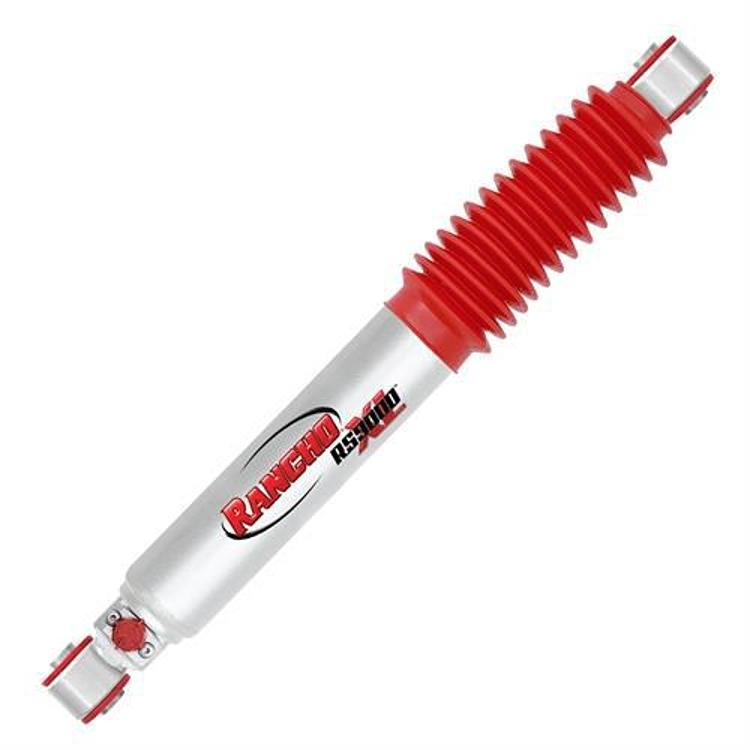

The Rancho RS999381 is a rear RS9000XL Series shock absorber for 2011–2017 Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD, and for 2011–2016 Silverado 3500 HD and Sierra 3500 HD.
It is gas charged with a 2.75-in. liquid metallic body around an 18mm Nitro Carb rod. The lift range is 3 to 4 in., and the unit uses polyurethane bushings with 9-position tuning. It is built for work or play.
Key features
- Rear position, direct fit
- 3 to 4 in. lift range
- 9-position tuning with the My Ride system
- 18mm Nitro Carb rod
- 2.75-in. (70mm) liquid metallic body
- Polyurethane bushings and protective boot included
Choosing a shock for added height
When a truck sits higher than stock, the rear shocks have to reach further and handle a different angle at the axle. A shock matched to the intended lift keeps the suspension working within its travel, while one that is too short can bottom out or pull on the mounts. Look at the installed height, the bump stop position and the amount of travel the shock must cover before choosing a unit.
Gas-charged shocks are often chosen for steadier damping on rough roads and under heavy loads, and adjustable settings let you tune the rear for a loaded bed or an empty one. Rear shocks are usually replaced with springs or bump stops in mind, since worn parts in that group change how the shock performs.
- Measure installed height before ordering
- Check bump stops and spring seats
- Keep both rear sides matched
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999381 (shown as RANRS999381) |
| Series | RS9000XL |
| Position | Rear |
| Body diameter | 2.75-in. (70mm) |
| Rod | 18mm Nitro Carb |
| Finish | Liquid metallic |
| Bushings | Polyurethane |
| Charge | Gas charged |
| Tuning | 9-position |
| Lift height | 3 to 4 in. lift |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2011–2017 Chevrolet Silverado 2500 HD (High Country, LT, LTZ, WT), the 2011–2016 Silverado 3500 HD (High Country, LT, LTZ, WT), the 2011–2017 GMC Sierra 2500 HD (Base, Denali, SLE, SLT, WT) and the 2011–2016 GMC Sierra 3500 HD (Base, Denali, SLE, SLT, WT).
The 2017 model year is not included for the 3500 HD, and 1500 models are not included. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
A protective boot is included. Check the package contents against your installation before starting.
