Overview

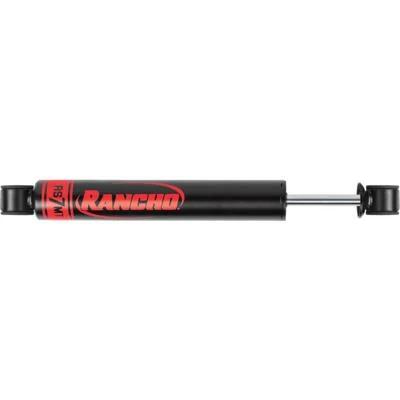

The Rancho RS77067 is an RS7MT front monotube shock for the 2018 through 2026 Jeep Wrangler (JL) with a 3.5-inch or 4.5-inch lift, and for the 2020 through 2026 Jeep Gladiator with a 1.5 to 3-inch lift.
It has a compressed length of 18.39 inches, an extended length of 28.58 inches and 10.19 inches of travel, which is more travel than the RS77065. The 2-inch monotube body is filled with all-weather fluid, and the 14 mm hardened chrome rod resists scuffs and corrosion. It is rated for internal temperatures from -40 to 248 degrees Fahrenheit.
Rancho says its deflective disc valving can be digressive, linear or progressive, and that the high-pressure nitrogen gas and full-floating piston reduce aeration and shock fade.
Key features
- Front monotube shock with a 2-inch body
- 14 mm hardened chrome piston rod
- Deflective disc valving, digressive, linear or progressive
- Internal rebound bumper and shouldered rubber bushings
- PTFE-banded piston
- Full-floating dividing piston with high-pressure nitrogen gas
- Double-welded loops and hot form reserve tube
- Application-specific mounting with no sleeves or extra hardware
Choosing longer travel shocks
Longer travel shocks suit suspension that moves further, such as lifted Jeeps running larger tires. The extended length has to clear the mounting points at full droop and still control the wheel at full compression. A shock that is too short can bottom out, and one that is too long can strain its mounts.
Because lift and shock length are linked, confirm the lift before buying and avoid mixing a long shock with a different lift setup. Replace both fronts together so the truck tracks evenly. After installation, check the mount bolts, boot and rubber bushings, and recheck torque after the first drives.
- Confirm lift height first
- Check clearance at full droop
- Replace fronts as a pair
- Recheck mount bolts after the first drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS77067 |
| Series | RS7MT |
| Position | Front |
| Shock type | Monotube |
| Compressed length | 18.39 inches |
| Extended length | 28.58 inches |
| Travel | 10.19 inches |
| Body diameter | 2.0 inches |
| Top and bottom mount | Eyelet |
| Finish | Black satin with Rancho red logo |
Vehicle fitment
It fits the 2020 through 2026 Jeep Gladiator and the 2018 through 2026 Jeep Wrangler (JL) in two-door and Unlimited four-door body styles.
The list does not include the Wrangler JK or model years before 2018, or Gladiator model years before 2020. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is intended for the 3.5-inch and 4.5-inch Wrangler JL lifts and the Gladiator’s 1.5 to 3-inch range. The mounting is application specific and needs no sleeves or extra hardware. Confirm the lift on your truck before ordering.
What’s included
The shock comes with its protective boot and black satin finish.
