Overview

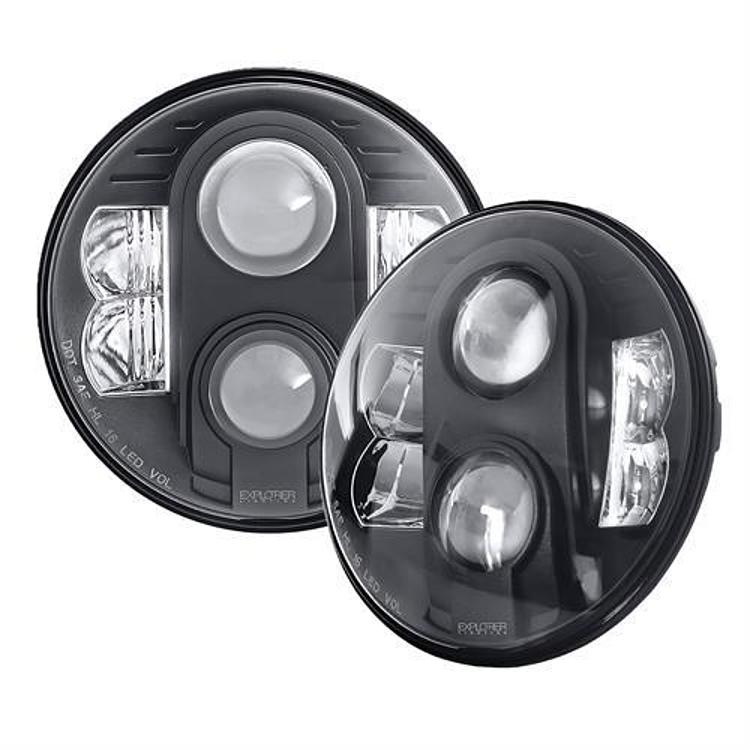

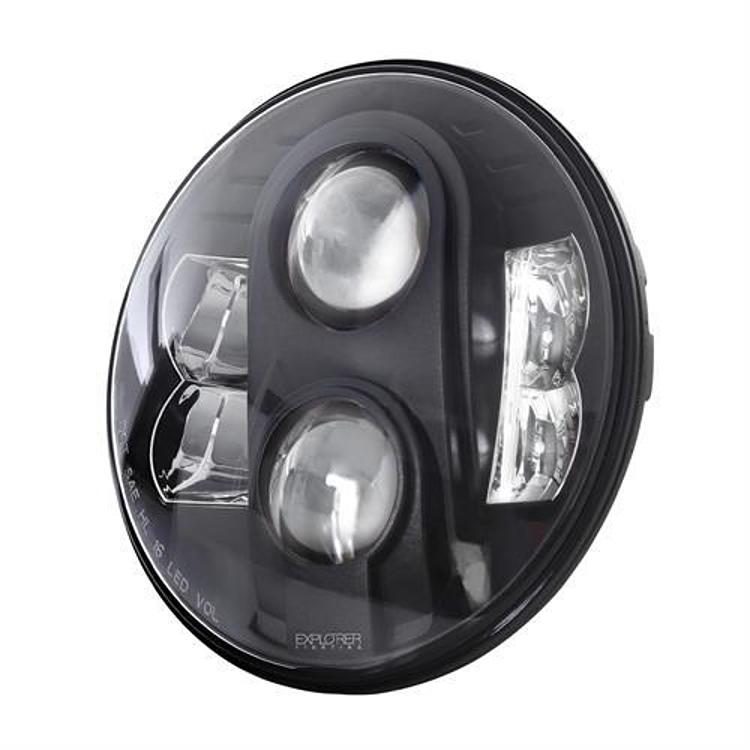

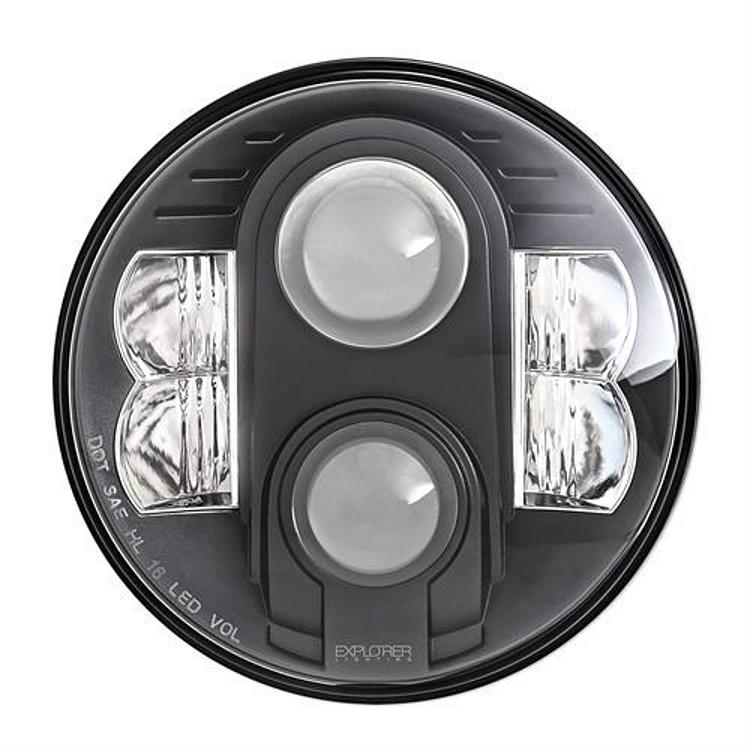

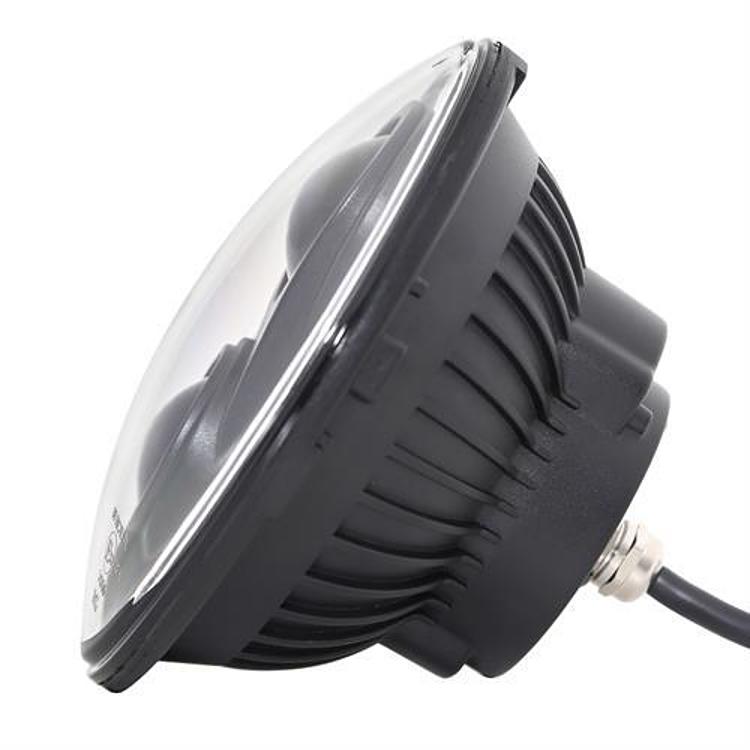

The Pro Comp 76402P is a pair of 7-inch round LED headlamp assemblies with a clear polycarbonate lens and 6000K pure white light. They are sold as plug-and-play replacements for round headlamp housings, and they are meant to improve visibility at night, in dense fog and in heavy rain.
Each lamp uses 20 LUXEON ZES LEDs with a built-in anti-flicker module for steady light. The lenses are UV-resistant, hard-coated polycarbonate, and the lamps are designed for maximum light dispersion on and off the road.
The lamps come with a lifetime warranty, and the built-in anti-flicker module is designed to keep the LEDs steady on the vehicle’s electrical system.
Key features
- 20 LUXEON ZES LEDs
- 6000K pure white light
- UV-resistant, hard-coated polycarbonate lens
- Built-in anti-flicker module
- Maximum light dispersion
- Plug-and-play replacement
- Accepts 9–32V DC
Headlamp aim and output

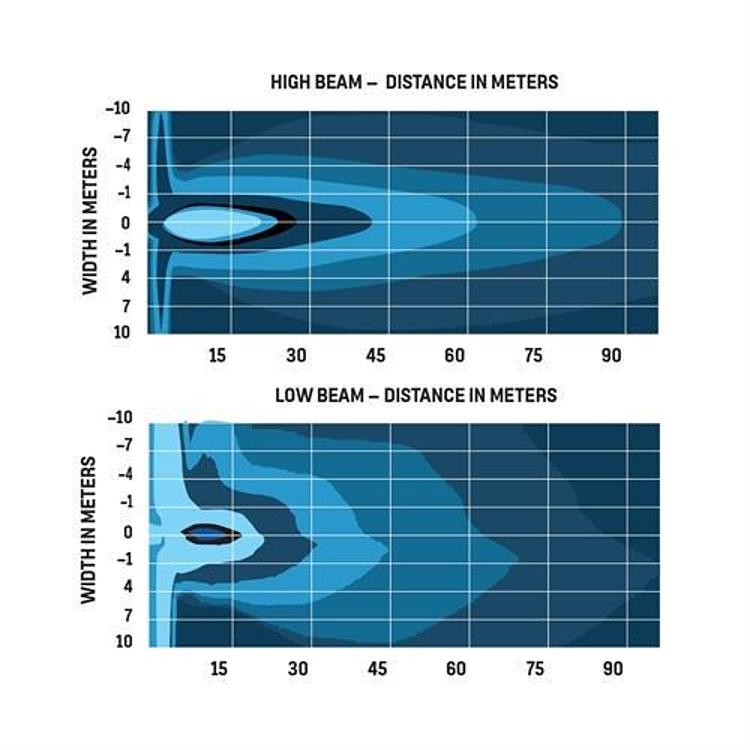

Round headlamps are aimed by adjustment screws, and a replacement assembly needs its aim set after installation so the beam lands at the right height and angle. Aim the lamps on level ground facing a wall, and keep the cutoff pattern level so oncoming drivers are not dazzled. Re-check the aim after the first few drives, since new mounts can settle.
LED output and heat are closely tied to the vehicle’s power. A stable voltage, good grounds and clean connectors help the LEDs run as designed, so check the wiring for corrosion before installation. Keep the lenses clean, since road grime and salt cut light output more than many drivers expect.
- Mark beam height on the wall before adjusting
- Check connectors for corrosion
- Clean lenses after muddy or salty trips
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 76402P |
| UPC | 614901095647 |
| Headlamp size | 7-inch round |
| Lens color | Clear |
| LEDs | 20 LUXEON ZES |
| Color temperature | 6000K |
| Input voltage | 9–32V DC |
| Lens | UV-resistant, hard-coated polycarbonate |
| Type | Headlight assembly |
| Sold as | Pair |
| Warranty | Lifetime warranty, per Pro Comp |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Because the lamps replace a round headlamp, match them to the diameter and mounting of your truck’s existing housing.
Check the headlamp size against the housing on your truck before buying, and compare the year, model and trim of your vehicle.
Installation notes

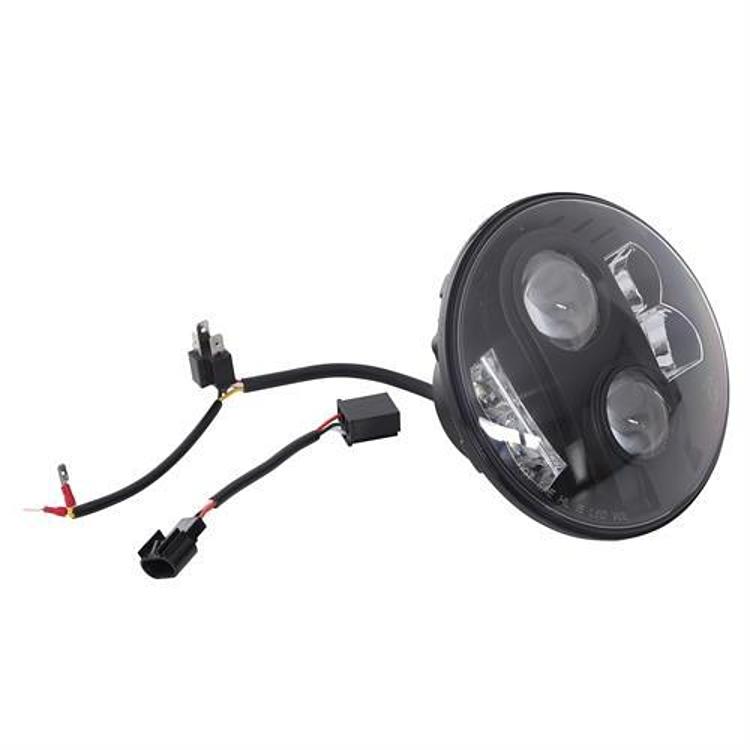

The lamps are plug-and-play, and their 9–32V DC input should match your vehicle’s electrical system. Check local rules for headlamp color and output before installing them on a road vehicle.
What’s included
A pair of 7-inch round LED headlamp assemblies with the built-in anti-flicker module.
