Pro Comp 60 Series Hammer, 18x9 Wheel with 6x135 Bolt Pattern – Satin Black Milled – 5160-893650

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5160-893650: 18×9 aluminum Hammer wheel, 60 Series, satin black milled
  • 6 on 135 bolt pattern, center bore 87, offset 0, backspacing 5
  • Load rating of 2500 to 3650 lbs per wheel across Pro Comp alloys
  • No vehicle is named for this wheel

Description

Overview

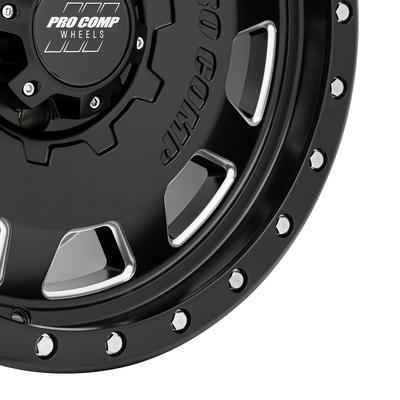

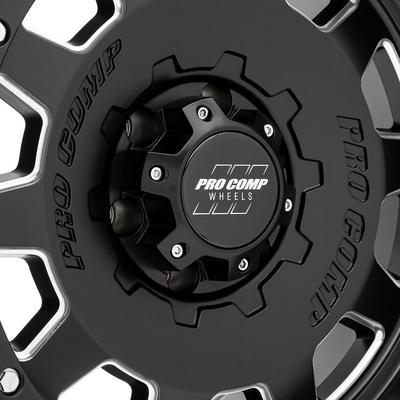

The Pro Comp PXA5160-893650 is an 18×9 aluminum wheel from the Pro Comp 60 Series Hammer, with a satin black milled finish and a 6 on 135 bolt pattern. It is a windowed-style alloy wheel, sold as a single unit.

The Hammer is cast with low-pressure casting, and the alloy line is rated from 2500 to 3650 lbs per wheel. This wheel has a center bore of 87, an offset of 0 and a backspacing of 5. Match the 6 on 135 bolt pattern first, then the center bore.

Key features

  • Low-pressure cast aluminum construction
  • 18-inch diameter, 9-inch width
  • 6 on 135 bolt pattern
  • Center bore of 87
  • Zero offset with 5 backspacing
  • Satin black milled finish

Six-lug hubs and fitment

A six-lug wheel depends on exact hole spacing. Six holes on a 135 circle will seat only on a hub with the same layout. Even when the lug count matches, a different spacing will not line up, and forcing the wheel can damage the studs. Measure across the lug holes and the hub studs before buying, since the difference can be small.

The 87 center bore must seat on the hub pilot so the wheel runs true. If the bore is larger, a hub-centric ring can help, but it does not correct a wrong bolt pattern. Tighten the lug nuts in a star pattern, and recheck torque after the first few miles because lug seats can settle.

  • Count the lug holes and measure across the bolt circle
  • Check lug thread size and seat type
  • Verify the center bore against the hub pilot
  • Test fit before final torque

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5160-893650
Series 60 Series Hammer
Style Windowed
Construction Aluminum
Finish Satin black milled
Diameter 18 inches
Width 9 inches
Bolt pattern 6 on 135
Center bore 87
Offset 0
Backspacing 5
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. The 6 on 135 pattern is a specific layout used on some trucks and SUVs, and the center bore of 87 must match the hub, so the vehicle has to be confirmed before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Only a 6-lug hub at 135 accepts this wheel. A test fit with the tire helps confirm clearance at the caliper, since the zero offset and 5 backspacing set the tire position. Six lug holes have to line up exactly with the hub, so a 6 on 135 wheel will not fit a 6 on 5.5 hub.

What’s included

One 18×9 aluminum wheel. A center cap and lug nuts are not part of the package.

SKU: PXA5160-893650 Categories: ,

Questions & Answers

Is the PXA5160-893650 a 6 on 135 wheel?

Yes. Its bolt pattern is 6 on 135 with a center bore of 87, so confirm both before ordering. The zero offset and 5 backspacing are listed separately from the bolt pattern.

What is the offset on this 18x9 Hammer?

The offset is 0 and the backspacing is 5. A zero offset puts the mounting face at the centerline of the rim.

Does the PXA5160-893650 come with lug nuts?

No. Lug nuts and a center cap are not included with the wheel. Check the hub's stud and lug nut requirements before ordering.

What does a 6 on 135 pattern mean?

It means six lug holes sit on a circle with a 135 diameter. Hubs with a different lug count or circle will not accept the wheel, even when the number of studs looks similar. Measure the hub before ordering.

Should wheel bearings be replaced when fitting new wheels?

Not usually. Inspect bearings and seals when the hub is open or if you notice play, noise, or heat. A loose hub can damage wheel studs over time, so check for movement after installation.
