Pro Comp 72 Series Axis, 17x9 Wheel with 8x170 Bolt Pattern – Satin Black Milled – 5172-7970

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5172-7970: 17×9 aluminum spoke wheel, 72 Series Axis, satin black milled
  • 8 on 170 bolt pattern, center bore 125, offset -6, backspacing 4.75
  • Spoke style, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

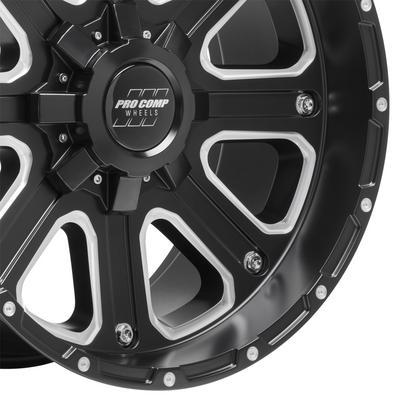

The Pro Comp PXA5172-7970 is a 17×9 aluminum spoke wheel from the Pro Comp 72 Series Axis line, in satin black milled with an 8 on 170 bolt pattern. It is sold as one wheel with a center bore of 125 and an offset of -6.

This 9-inch-wide wheel has a backspacing of 4.75, so the rim sits outboard of the mounting face by a modest amount.

Key features

  • Low-pressure cast aluminum construction
  • Spoke face style
  • 17-inch diameter, 9-inch width
  • 8 on 170 bolt pattern
  • Center bore of 125
  • Offset -6 with 4.75 backspacing

Choosing a spoke wheel setup

Spoke wheels leave more open space around the brake assembly than solid designs, which helps when checking caliper clearance. The open pattern also shows more of the hub and fasteners, so inspect the mounting area during regular service.

Offset and backspacing work together. A lower offset pushes the mounting face outward, while backspacing shows how much room the inner lip has behind it. When comparing wheels, measure the inner clearance on the vehicle before choosing a tire width, because a wider tire can rub the fender or suspension at full lock.

Wheels are often refitted with new lug nuts or studs when the hub is serviced. Check the seat of each lug nut and keep the lug holes clean, since debris trapped behind the mounting face can affect torque. Re-check lug nut torque after the first few drives on a new wheel.

  • Inspect spokes for cracks after rough off-road use
  • Look for bent rims after impacts with rocks or ledges
  • Check valve stem seals when fitting new tires
  • Keep spare lug nuts that match the seat type

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5172-7970
Series 72 Series Axis
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 17 inches
Width 9 inches
Bolt pattern 8 on 170
Center bore 125
Offset -6
Backspacing 4.75

Vehicle fitment

Confirm the 8 on 170 hub, 125 center bore and -6 offset against your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Eight lug holes at 170 must line up with the hub exactly. Confirm the 125 center bore fits the hub pilot, then test-fit with the tire mounted to check the caliper and suspension clearance. Eight lug holes on a 170 spacing must line up exactly with the hub, and the 125 center bore must seat on the hub pilot. The 9-inch width and -6 offset set the tire position relative to the fender and brake parts, so a test fit with the tire mounted is the practical check. Measure the 4.75 backspacing against the inner room on the vehicle. Because the Axis is a spoke design, also make sure the spokes clear the caliper at full lock. The 8 on 170 pattern is an eight-lug layout, so the vehicle’s hub must have eight lug holes at that spacing. Confirm the 125 center bore is the right size for the hub pilot, and check the 4.75 backspacing against the room behind the mounting face.

What’s included

One 17×9 aluminum wheel in satin black milled. Check the package contents against your installation before starting.

SKU: PXA5172-7970 Categories: ,

Questions & Answers

What bolt pattern is the PXA5172-7970?

It is an 8 on 170 bolt pattern with a center bore of 125. The offset is -6 and the backspacing is 4.75, so match all of these to your hub.

What load rating applies to this Axis wheel?

Confirm the load rating with Pro Comp before choosing this 17x9 Axis wheel for heavy use. Match the rating to your vehicle's weight and axle load, since the rating decides whether the wheel suits towing or rock work.

Does this wheel include lug nuts?

Confirm which hardware ships with the wheel before ordering, since lug nuts and a center cap may need to be bought separately. Pro Comp can confirm the included hardware for this 17x9 wheel.

How should I care for a satin black milled spoke wheel?

Wash with mild soap and water and avoid harsh abrasive pads, which can dull the satin finish. Inspect the milled surfaces and spokes after off-road trips for dirt packed into the joints, and clean them to keep the finish looking even.

Does a wider tire change how the spoke wheel should be checked?

Yes. A wider tire moves closer to the fender and suspension, so test-fit the wheel with the chosen tire mounted before driving. Recheck clearance after any suspension change, since added travel or a lift shifts the tire position.
