Pro Comp 29 Series La Paz, 16x8 Wheel with 5 on 5 Bolt Pattern – Satin Black – 5029-6873

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 16x8 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 16×8 aluminum windowed wheel in satin black, 29 Series La Paz
  • 5 on 5 bolt pattern, center bore 83
  • Offset 0; backspacing 4.5
  • Part number PXA5029-6873

Description

Overview

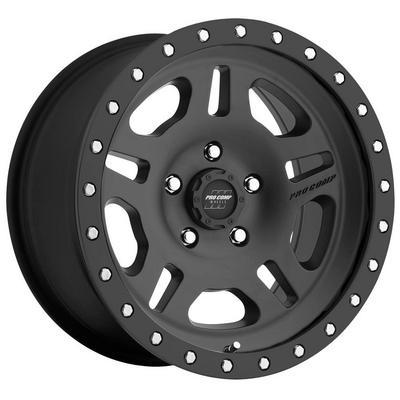

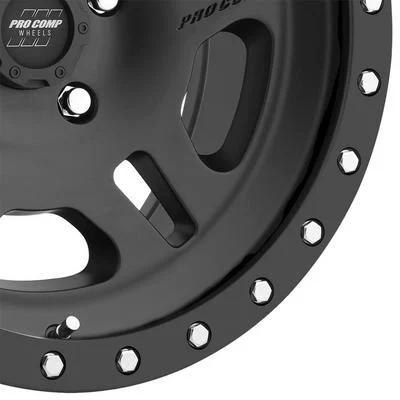

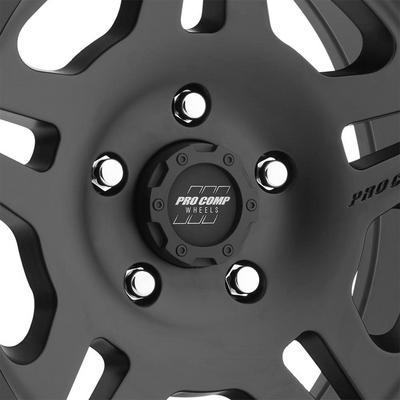

The Pro Comp PXA5029-6873 is a 16×8 windowed aluminum wheel from the 29 Series La Paz line, finished in satin black. It has a 5 on 5 bolt pattern, a center bore of 83, a 0 offset and a 4.5 backspacing.

This is the 5 on 5 member of the La Paz 16-inch group. Pro Comp says its wheels are low-pressure cast, and the windowed face gives the wheel an open look.

The 5 on 5 pattern and 83 center bore decide whether this wheel fits a given hub. The 0 offset and 4.5 backspacing place the face near the centerline, so the inner and outer clearances should be checked on the truck.

The windowed design and satin black finish define the styling of this wheel, which is made from low-pressure cast aluminum.

The 83 center bore is part of this 5 on 5 wheel, so confirm the hub bore before ordering, along with the 16-inch rim and tire size.

Key features

  • Windowed design
  • Satin black aluminum finish
  • 5 on 5 bolt pattern
  • Center bore 83
  • Offset 0

Hub-centric fit basics

Hub-centric fit means the wheel’s center bore sits on the hub so the wheel is located by the hub itself, not only by the lug nuts. When the bore is larger than the hub, the wheel can wobble or vibrate even though the bolt pattern matches. Measuring both the hub and the bore before mounting avoids most of these problems.

Hub-centric rings are one common way to close a gap between a larger bore and a smaller hub. Choose rings sized for the exact bore and hub measurements, and check that they seat flush. Clean the hub face and the back of the wheel before mounting, and recheck lug torque after the first few miles.

  • Measure the hub and bore before ordering
  • Use hub rings only when sized to fit
  • Recheck lug torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5029-6873
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 5
Center bore 83
Offset 0
Backspacing 4.5
Style Windowed
Finish Satin black
Construction Aluminum
Series 29 Series La Paz

Vehicle fitment

The fit label on this wheel reads universal. The 5 on 5 bolt pattern and 83 center bore are the two numbers to match.

Choose tires that suit a 16-inch rim that is 8 inches wide. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Check the package contents for a center cap before installing.

SKU: PXA5029-6873 Categories: ,

Questions & Answers

Does the PXA5029-6873 fit a 5 on 5 truck?

It has a 5 on 5 bolt pattern, so it fits only hubs with that pattern. Check the 83 center bore on your hub before ordering.

What is the offset and backspacing?

The offset is 0 and the backspacing is 4.5. The wheel is 16 inches in diameter and 8 inches wide.

Is this the same as the 5 on 4.5 La Paz wheel?

No. This version has a 5 on 5 bolt pattern, while the PXA5029-6865 has a 5 on 4.5 pattern. The 83 center bore and 0 offset are the same as the 5 on 4.5 version.

What is hub-centric fit and why does the bore matter?

Hub-centric fit means the wheel bore centers on the hub, so the lug nuts only clamp the wheel rather than locate it. A mismatched bore can cause vibration. Confirm the bore and hub measurements before mounting, and use rings sized to close any gap.
