Overview

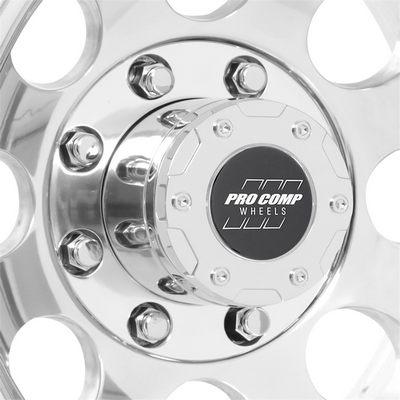

The Pro Comp PXA1069-6870 is a 16×8 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and an 8 on 170 bolt pattern. It is sold as one wheel with a center bore of 108, a zero offset and a backspacing of 4.5.
The Vintage line is built with low-pressure cast aluminum for a head-turning look and light weight. This wheel’s zero offset places the mounting face at the centerline, so check brake caliper clearance before installing.
Key features
- Low-pressure cast aluminum
- Holes style face
- 16-inch diameter, 8-inch width
- 8 on 170 bolt pattern
- Center bore of 108
- Zero offset with 4.5 backspacing
Offset and clearance
Offset is the distance from the wheel’s mounting face to its centerline, and it decides how far the wheel sits in or out relative to the hub. A zero offset moves the mounting face to the centerline, which changes how the tire sits against the fender and the brake caliper. Backspacing shows how much room is behind the mounting face, so it matters when checking inner clearance.
Before buying a wheel, match the bolt pattern, center bore and lug seat type to the hub, since these set whether the wheel mounts at all. Tire size also matters: a wider tire on an 8-inch wide wheel changes sidewall stance and rubbing risk. Lug nuts should match the wheel’s seat type, and many owners replace them with new ones when changing wheels.
Polished finishes need regular cleaning with a non-abrasive wheel cleaner to keep the surface bright. Check the lug torque after the first drives and inspect the wheel for cracks or bent edges after any curb impact.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA1069-6870 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Polished |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.5 |
Vehicle fitment
It is sized for an 8 on 170 hub with a 108 center bore. Check the hub pattern and center bore first, then confirm the zero offset clears the fender and brake caliper. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight lug holes at 170 must line up with the hub exactly. A test fit with the tire mounted confirms the polished rim clears the caliper at the zero offset.
What’s included
One 16×8 polished aluminum wheel. Check hub hardware and any center cap against your installation before starting.
