Overview
The Pro Comp K1171B is a 6-inch stage 1 lift kit with ES9000 rear shocks for GM 1500 trucks, in both 2WD and 4WD configurations with a gas engine. Pro Comp rates the kit for a lift height range of 5 to 6.99 inches.

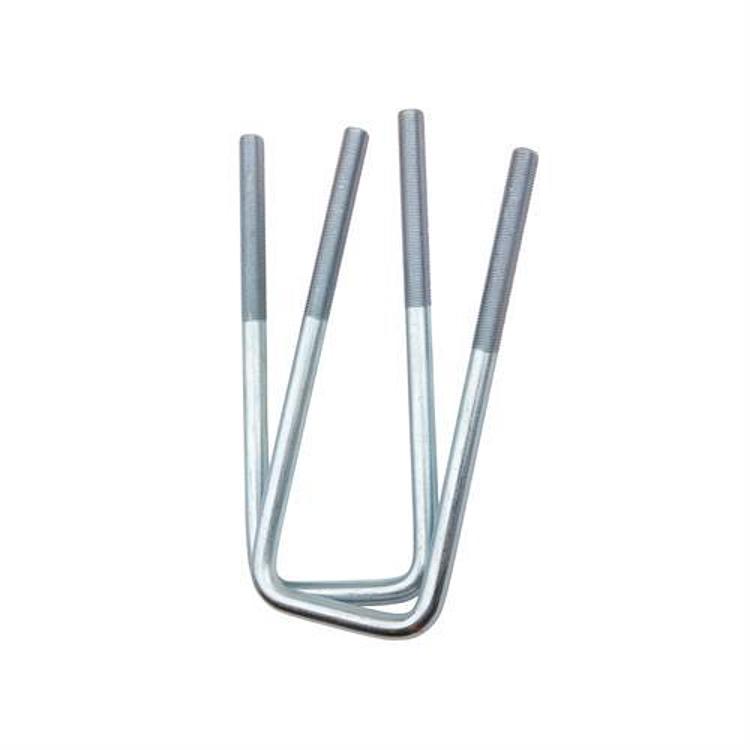

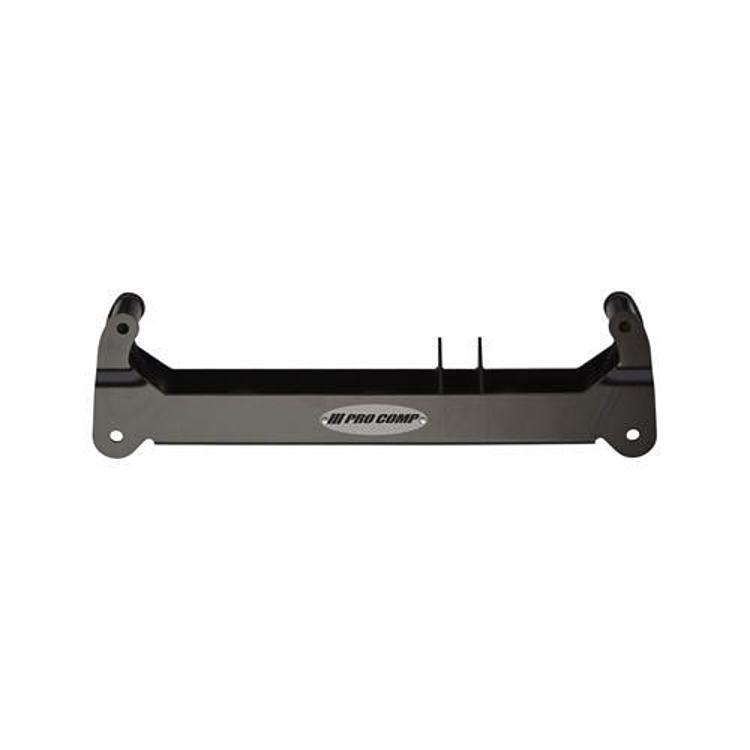

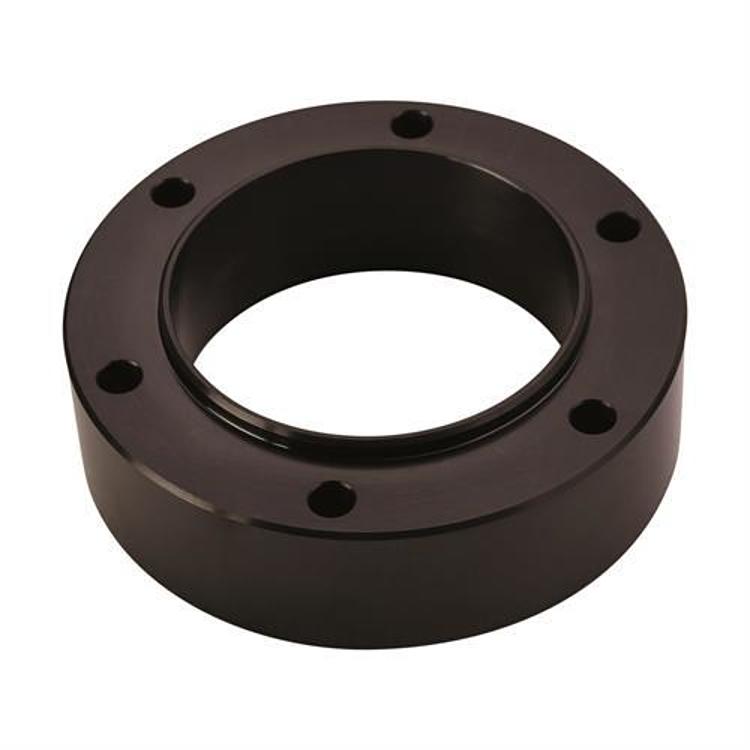

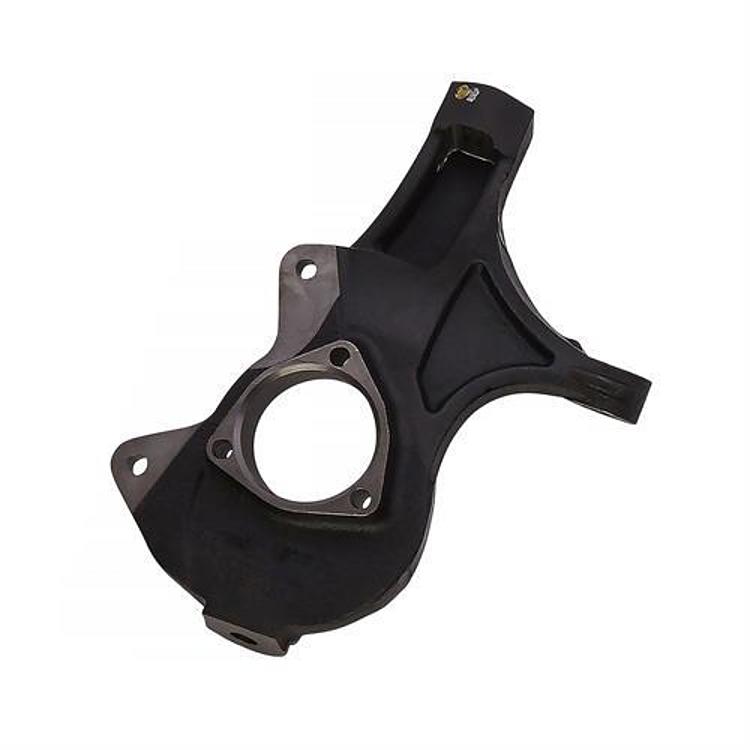

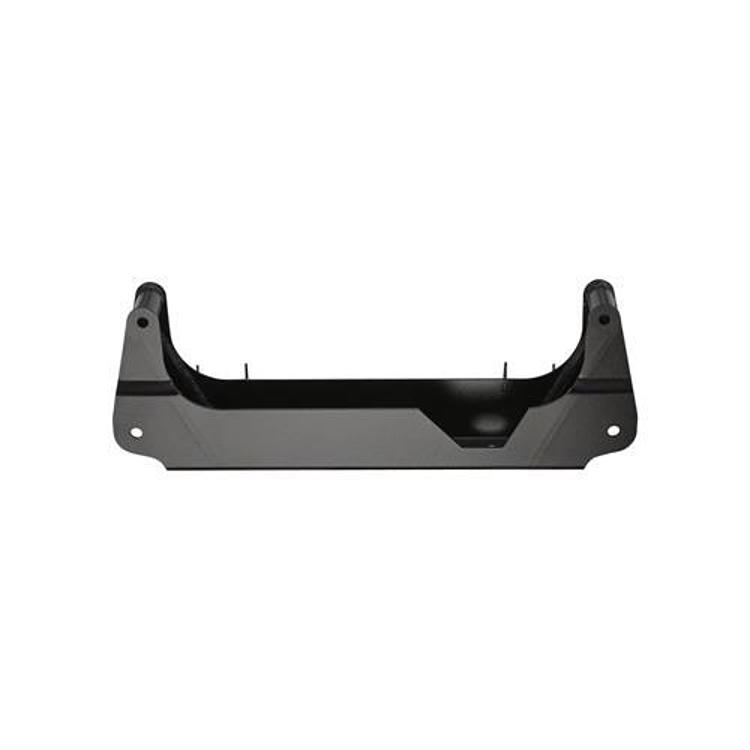

The front of the kit uses steering knuckles, crossmembers, drop brackets and strut spacers, along with a skid plate. At the rear it uses lift blocks with add-a-leaf springs and U-bolts, plus ES9000 shocks.
The kit works on GM 1500 trucks with either aluminum or stamped steel control arms. The 4-inch K1173B also works on GM 1500 trucks with either arm type. Older 6-inch K1165B kits need the sway bar bracket kit 90-60616B on trucks with stamped steel control arms.
Key features
- 6-inch stage 1 lift
- Lift height range of 5 to 6.99 inches
- Front steering knuckles, crossmembers, drop brackets and strut spacers

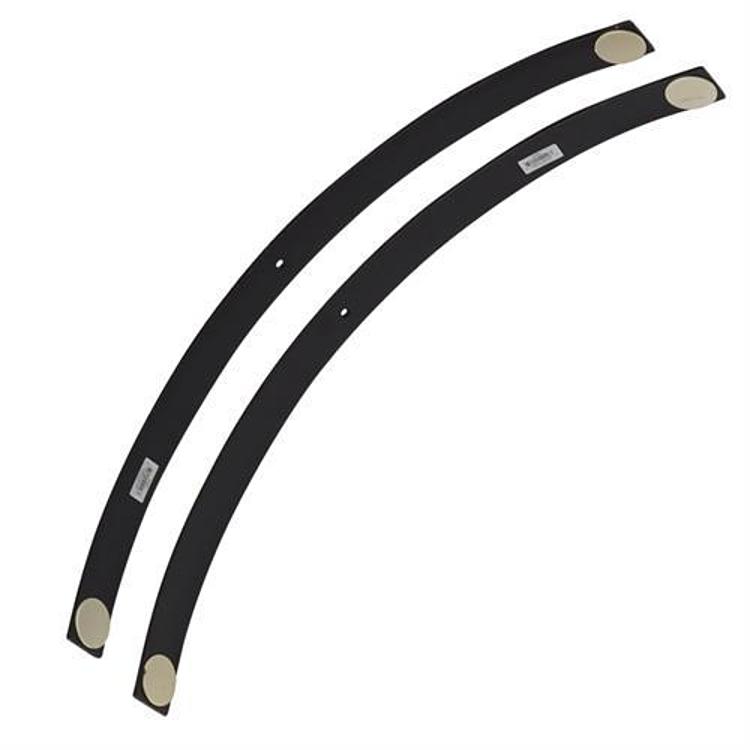

- Rear lift blocks with add-a-leaf springs and U-bolts

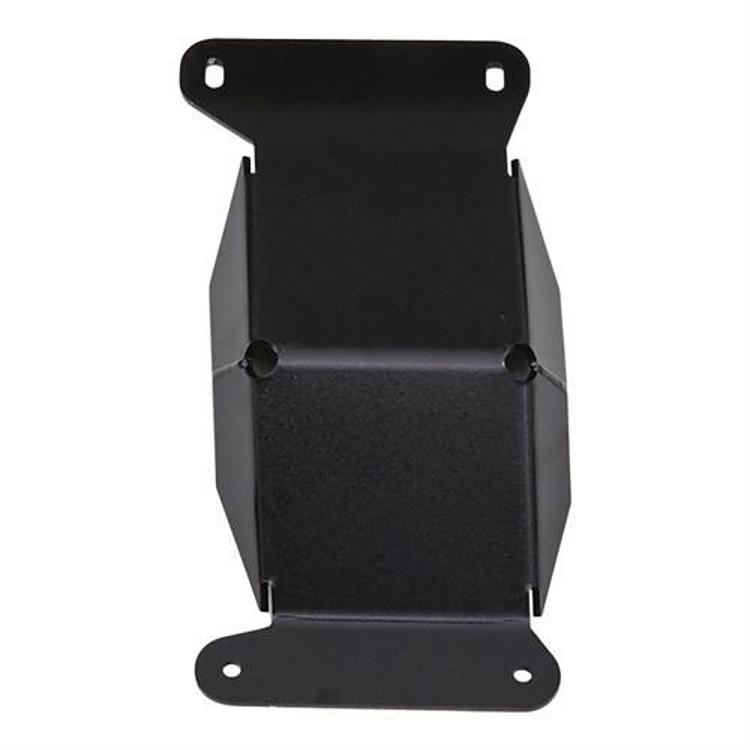

- Rear ES9000 shocks and a skid plate
Control arm and sway bar fit
Control arm design sets how a lift kit mounts to the front of a GM 1500. Trucks with aluminum arms and trucks with stamped steel arms use different hardware paths, so match the arm type on your truck to the kit before you start. Sway bar brackets and links are part of that match, and they should be inspected once the new knuckles and drop brackets are in place.
Front and rear work should be done together where possible, because a lift at one end changes how the other end loads and rotates. Check U-bolt torque on the rear blocks after the first drive, and look for rubbing on the tire, brake line and driveline at full steering lock. Keep the front and rear hardware together in one check so nothing is missed.
- Verify control arm type before ordering
- Inspect sway bar links after installation
- Recheck U-bolt torque after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1171B |
| UPC | 70000779558 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Front suspension type | Knuckle |
| Rear lift method | Lift blocks and U-bolts |
| Rear lift component | Block and U-bolt, with add-a-leaf springs |

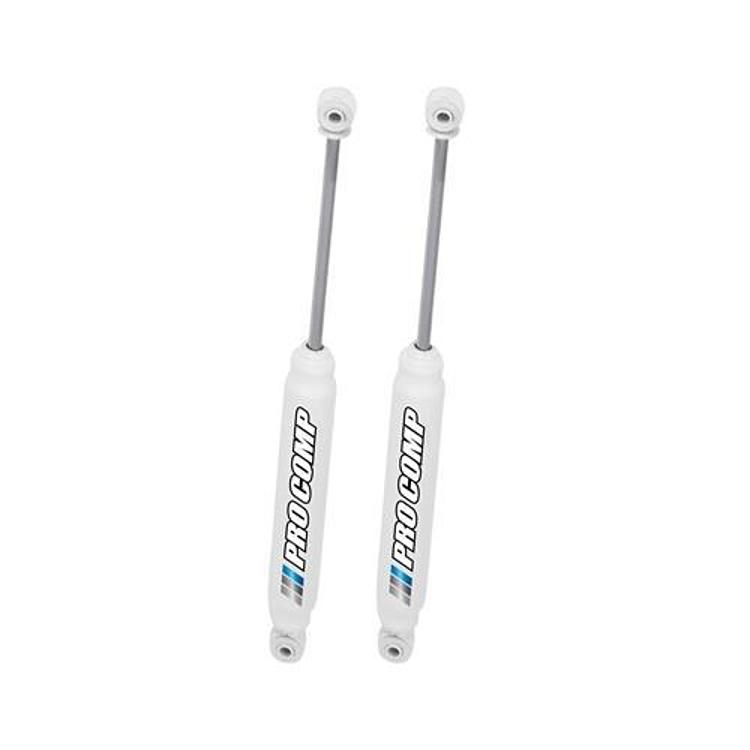

| Rear shocks | ES9000, included |
| Front shocks | None |
| Drivetrain | 2WD and 4WD |
| Engine | Gas |
Vehicle fitment
It is designed for GM 1500 trucks in 2WD and 4WD with a gas engine. Confirm fit for your vehicle’s year, model and trim before ordering.
Trucks built before April 1, 2016 had cast steel or aluminum control arms, and trucks built on or after that date have stamped steel arms. The K1171B works with either type, so match your arm type to the fit guidance above.
Installation notes
The kit replaces the front steering knuckles and adds crossmembers and drop brackets, so have the front alignment set after installation and check the driveline angles. The sway bar bracket kit 90-60616B applies only to older 6-inch kits on stamped steel control arm trucks.
What’s included

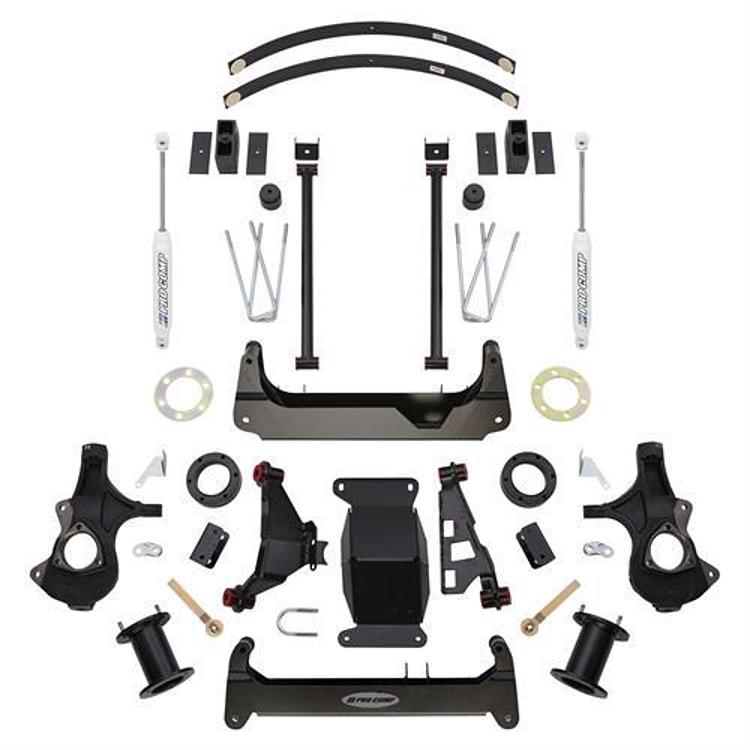

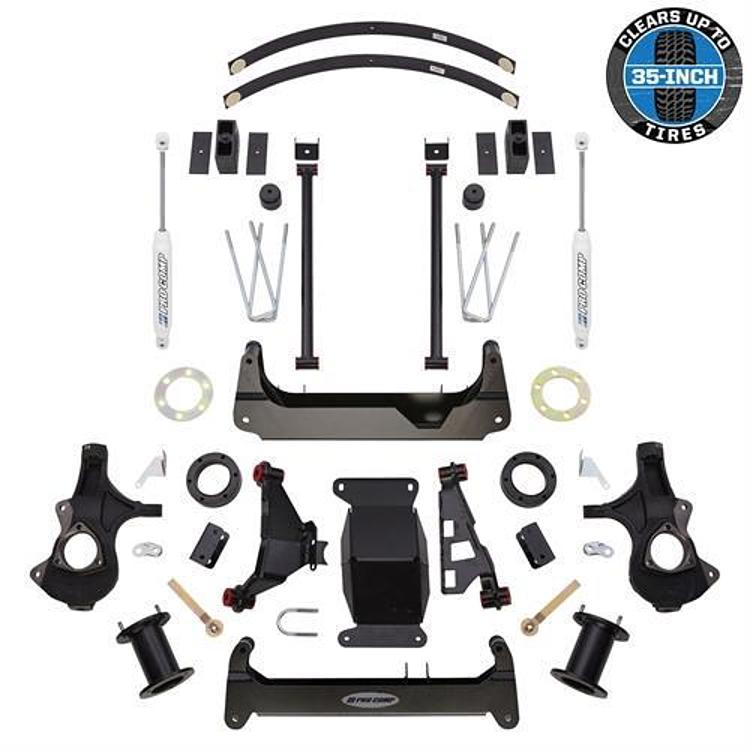

Front steering knuckles, crossmembers, drop brackets, front strut spacers, a skid plate, rear lift blocks with add-a-leaf springs and U-bolts, and rear ES9000 shocks.
Not included: Front shocks are not part of this kit.
